MJ6QHT-88AB08: DescriptionTelecom and Datacom Connector, 48+48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size207KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJ6QHT-88AB08 Overview

Telecom and Datacom Connector, 48+48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

MJ6QHT-88AB08 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.657 inch
subject depth	1.063 inch
body length	2.252 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.128 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	96
Base Number Matches	1

Preview

Download Datasheet

View All

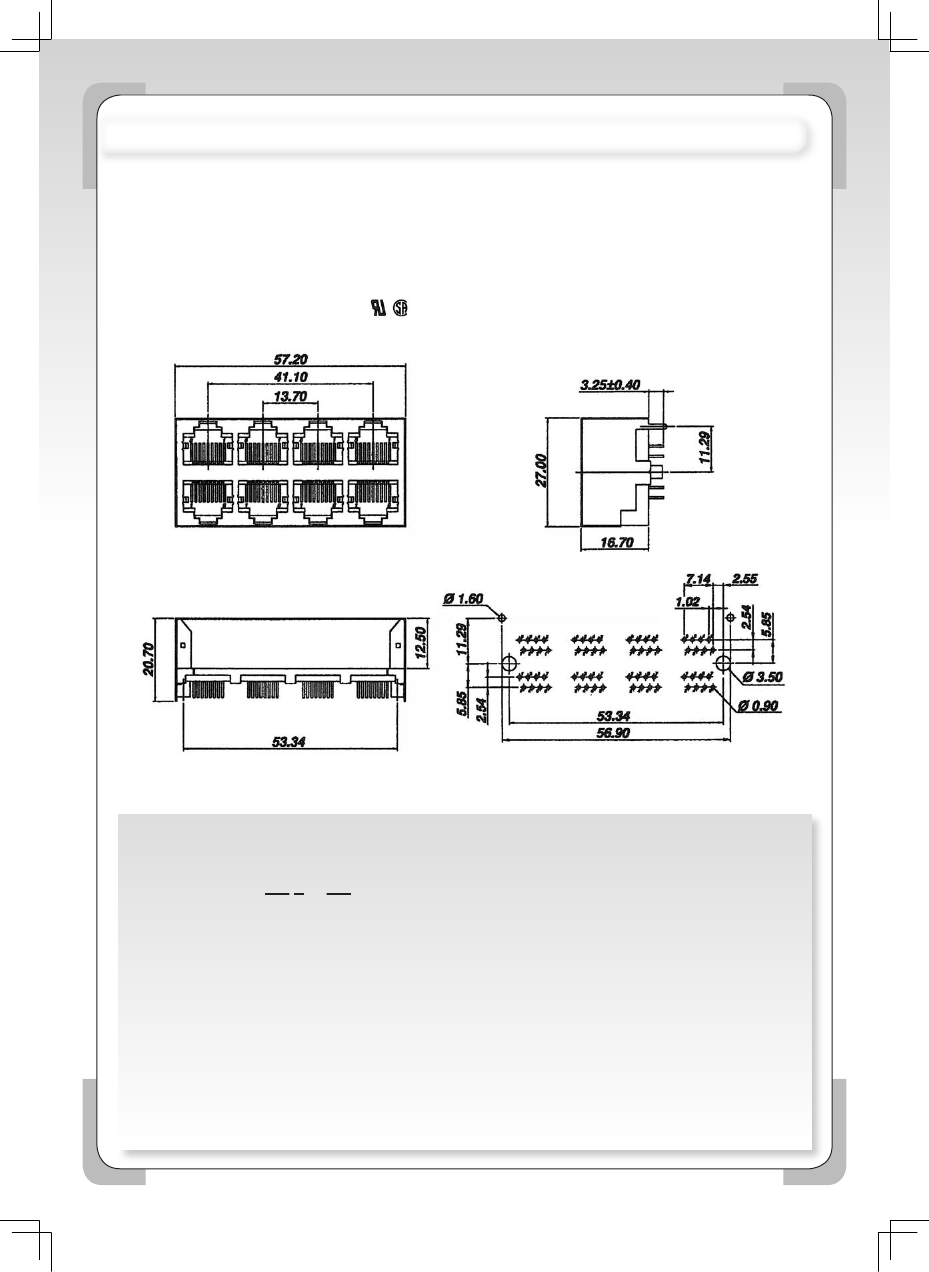

SIDE ENTRY 8-PORT DOUBLE LEVEL MODULAR PCB JACK 8P PROFILE=27.00MM

(FULLY SHIELDED)

SPECIFICATIONS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

MATERIALS

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J 6 Q - 8 8 x B 0 8

1 2 3

1. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

2. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

3. NO. OF PORTS:

NOTE: P/N MJ6QHT-88xB08 for High Temp. Version

J368

MJ6QHT-88AB08 Related Products

	MJ6QHT-88AB08	MJ6QHT-88DB08	MJ6QHT-88CB08	MJ6QHT-88BB08
Description	Telecom and Datacom Connector, 48+48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 48+48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 48+48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 48+48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant
Board mount options	PEG	PEG	PEG	PEG
body width	0.657 inch	0.657 inch	0.657 inch	0.657 inch
subject depth	1.063 inch	1.063 inch	1.063 inch	1.063 inch
body length	2.252 inch	2.252 inch	2.252 inch	2.252 inch
Body/casing type	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	6u inch	50u inch	30u inch	15u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS
Terminal length	0.128 inch	0.128 inch	0.128 inch	0.128 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96	96
Base Number Matches	1	1	1	1
