PCS2D14-1R8T-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PCS2D14-1R8T-RC

PCS2D14-1R8T-RC: Description1 ELEMENT, 1.8 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size124KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCS2D14-1R8T-RC Overview

1 ELEMENT, 1.8 uH, GENERAL PURPOSE INDUCTOR, SMD

PCS2D14-1R8T-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	1313
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1313
DC Resistance	0.075 Ω
Nominal inductance(L)	1.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-35 °C
Maximum rated current	1.65 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

RoHS

Power Chip Shielded Inductors

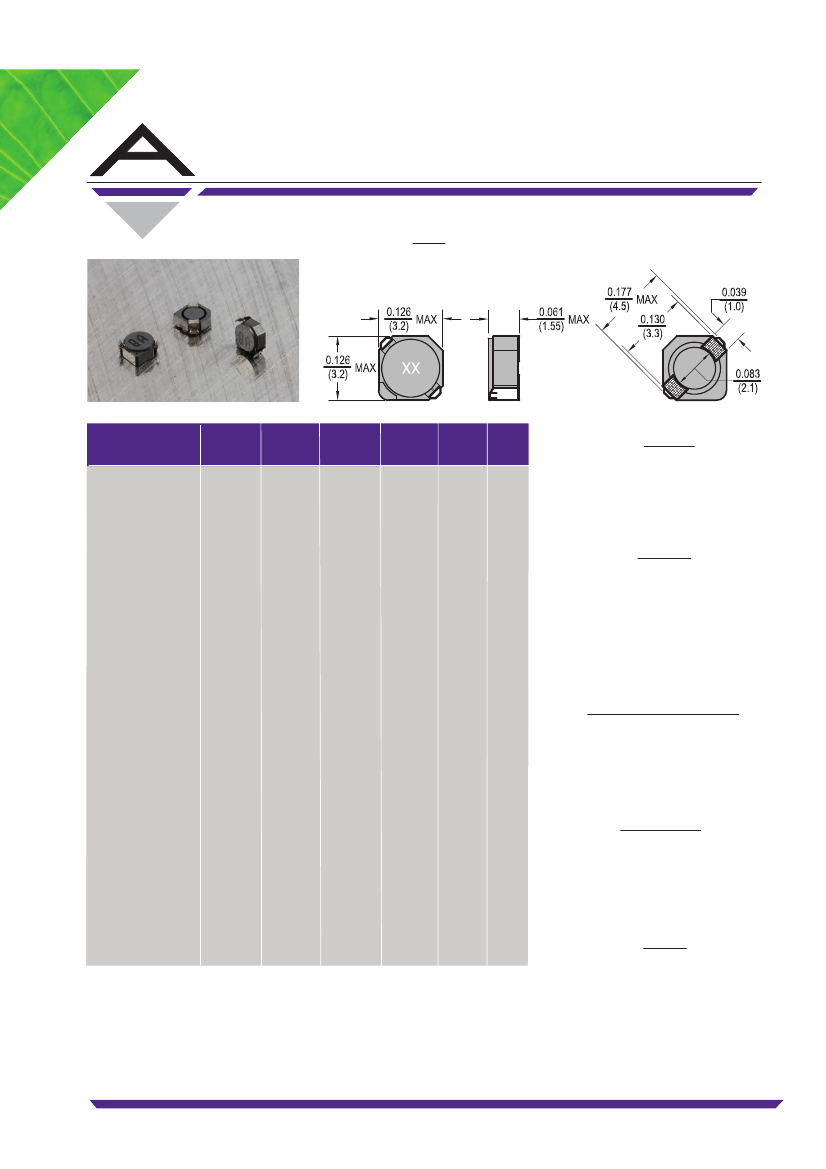

Dimensions:

Inches

(mm)

PCS2D14

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz,1v

DCR

(Ω)

Max

Rated

Current

(A)

Irms

(A)

Typ.

Features

• Shielded SMD Power Inductor

• Low profile

• Low DC resistance

• Ideal for DC-DC converter applications

PCS2D14-R47T-RC

PCS2D14-1R5T-RC

PCS2D14-1R8T-RC

PCS2D14-2R2T-RC

PCS2D14-2R7T-RC

PCS2D14-3R3T-RC

PCS2D14-3R9T-RC

PCS2D14-4R1T-RC

PCS2D14-4R7T-RC

PCS2D14-5R6T-RC

PCS2D14-6R8T-RC

PCS2D14-8R2T-RC

.47

1.5

1.8

2.2

2.7

3.3

3.9

4.1

4.7

5.6

6.8

8.2

100

0.040

0.063

0.075

0.094

0.106

0.125

0.138

0.169

0.188

0.213

0.281

2.00

1.80

1.65

1.50

1.35

1.20

1.10

1.00

0.95

0.85

0.80

2.00

1.80

1.60

1.40

1.24

1.12

Electrical

Inductance Range:

.47µh to 12µh

Tolerance:

30% over entire range

Also, available in tighter tolerances

Operating Temp:

-35ºC ~ +100ºC

Rated Current:

Current at which inductance

drop is equal to 35% typ.

Irms:

current at which

∆

T=40ºC temp rise

Resistance to Soldering Heat

1.00

0.98

Test Equipment

0.92

0.80

(L):

PM3260A / HP4284A / HP4285A

(RDC):

Chen Hwa 502BC

Rated Current:

HP4284A+HP42841A or

Chen Hwa 1061 + Chen Hwa 301A

Pre-Heat 150ºC, 1 Min.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC +/- 5ºC for

10 sec. +/- 1 sec.

PCS2D14-100T-RC

PCS2D14-120T-RC

100

0.294

0.394

0.70

0.62

0.76

0.64

Physical

Packaging:

1000 pieces per 7 inch reel.

Marking:

2 Character Alpha Code

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED

12/11/08

www.alliedcomponents.com
