MTP108WS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MTP108WS

MTP108WS: DescriptionTelecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug; CategoryThe connector The connector; File Size206KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

MTP108WS Overview

Telecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug

MTP108WS Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
Other features	SOLID WIRE, OVAL WIRE TYPE
body width	0.39 inch
subject depth	0.88 inch
body length	0.46 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
Insulation resistance	500000000 Ω
insulator material	POLYCARBONATE
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	CSA, UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	10
Base Number Matches	1

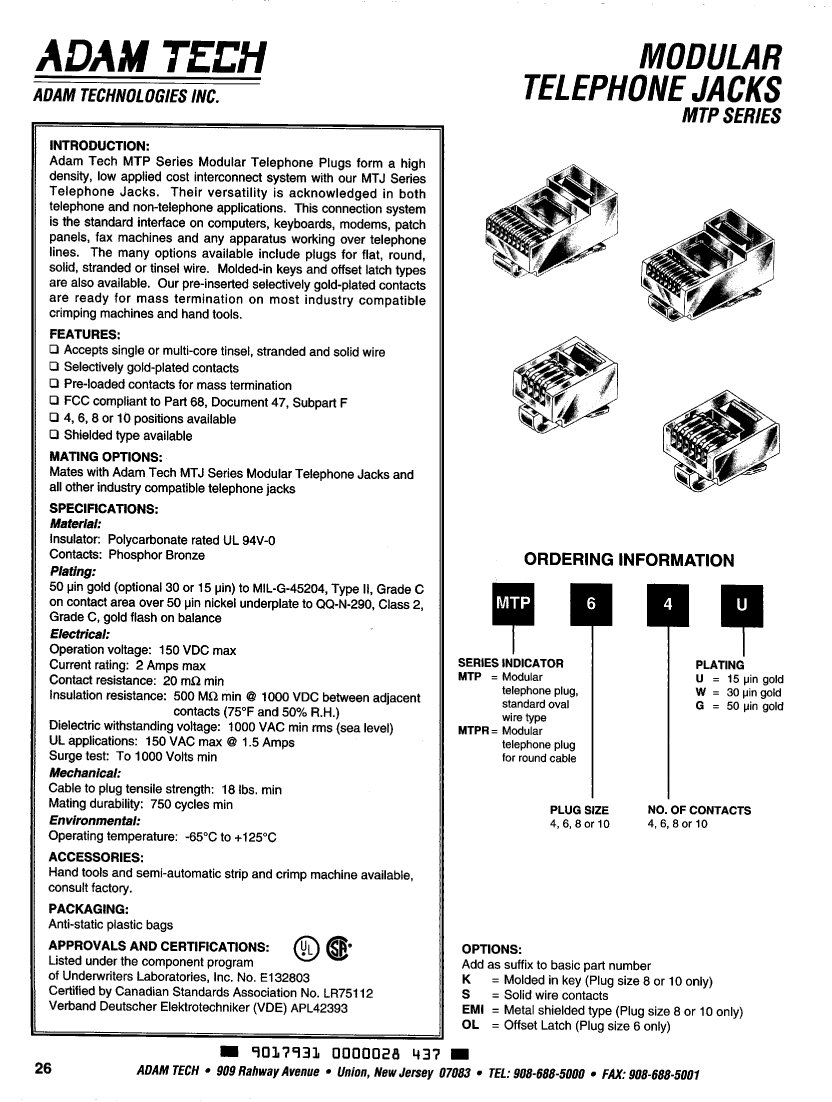

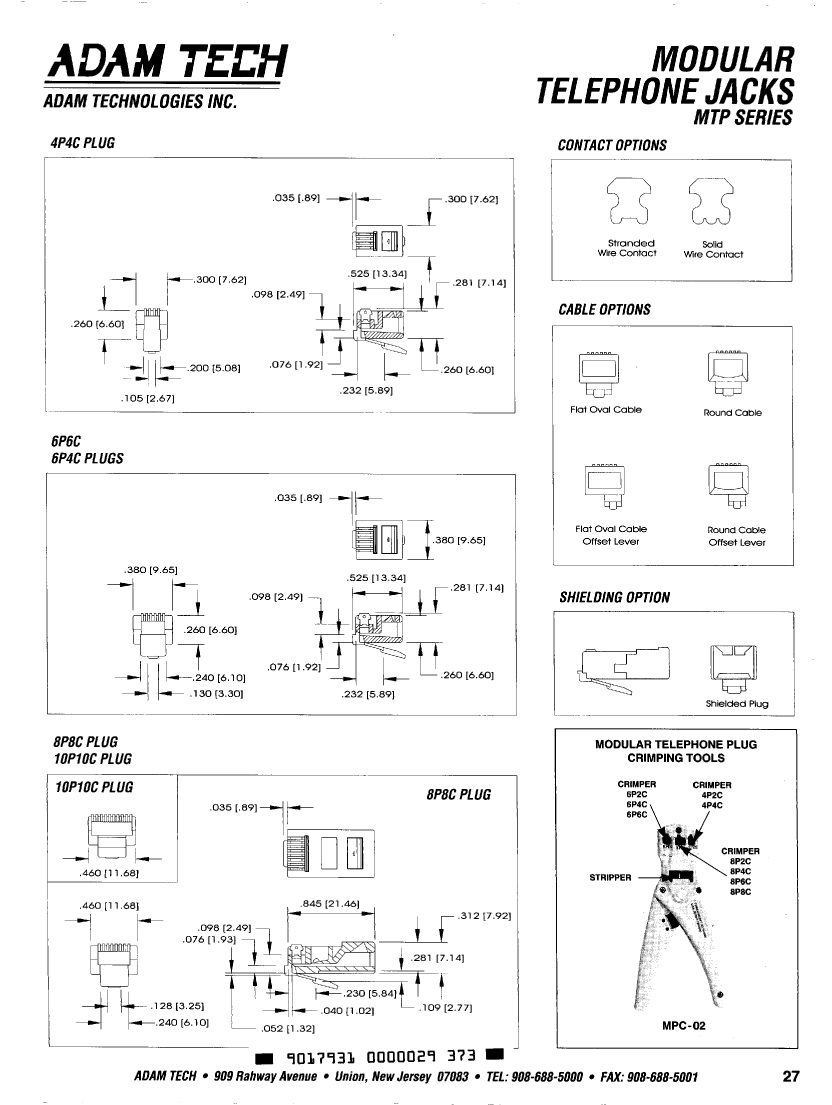

Preview

Download Datasheet

View All

MTP108WS Related Products

	MTP108WS	MTP108WEMI	MTP104WS	MTP64US	MTPR104WK	MTPR104WEMI
Description	Telecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug	Telecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug	Telecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug	Telecom and Datacom Connector, 6 Contact(s), Male, Straight, IDC Terminal, Plug	Telecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug	Telecom and Datacom Connector, 10 Contact(s), Male, Straight, IDC Terminal, Plug
Maker	Adam Tech	Adam Tech	Adam Tech	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SOLID WIRE, OVAL WIRE TYPE	METAL SHIELD, OVAL WIRE TYPE	SOLID WIRE, OVAL WIRE TYPE	SOLID WIRE, OVAL WIRE TYPE	MOLDED KEY, ROUND CABLE	METAL SHIELD, ROUND CABLE
subject depth	0.88 inch	0.88 inch	0.88 inch	0.525 inch	0.88 inch	0.88 inch
body length	0.46 inch	0.46 inch	0.46 inch	0.38 inch	0.46 inch	0.46 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles	750 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Plating thickness	30u inch	30u inch	30u inch	15u inch	30u inch	30u inch
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	10	10	10	6	10	10
body width	0.39 inch	0.39 inch	0.39 inch	-	0.39 inch	0.39 inch
