LRF9S

Description
DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid,
CategoryPower/power management    The power supply circuit
File Size129KB，3 Pages
ManufacturerPico Electronics Inc.
Download Datasheet Parametric View All

LRF9S Overview

DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid,

LRF9S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerPico Electronics Inc.
package instruction, MODULE,6LEAD,0.9
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)78%
Maximum input voltage24 V
Minimum input voltage8 V
JESD-30 codeR-XDMA-P6
JESD-609 codee0
Maximum grid adjustment rate1.5%
Maximum load regulation1.25%
Number of functions1
Output times1
Number of terminals6
Maximum operating temperature70 °C
Minimum operating temperature-25 °C
Maximum output current0.556 A
Maximum output voltage9.045 V
Minimum output voltage8.955 V
Nominal output voltage9 V
Package body materialUNSPECIFIED
Encapsulate equivalent codeMODULE,6LEAD,0.9
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output5 W
Fine-tuning/adjustable outputYES
Base Number Matches1

Preview

Download Datasheet
Pico Electronics: SERIES LR MILITARY DC-DC CONVERTERS

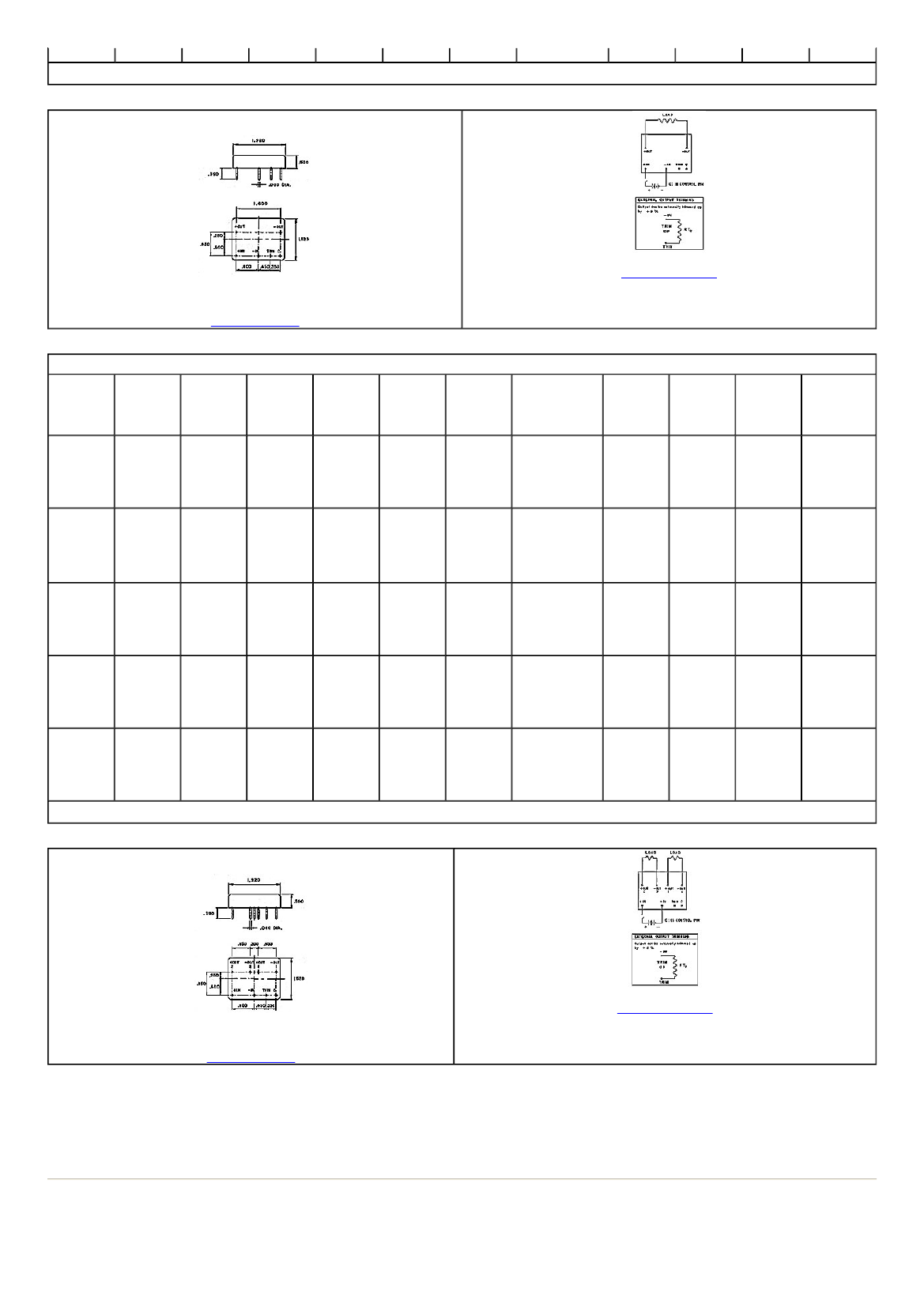

Page 1 of 3
SERIES LR
DC-DC CONVERTERS
Wide Input Range/up to 3.33:1
Isolated Regulated up to 5 Watt
DC-DC Converters
Fully Regulated
All Units Shielded
This series of high efficiency, wide input range, encapsulated regulators come in 90 different
FEATURES
models. These units feature a 500 VOLT DC input to output isolation in both single and dual output
models. The LR Series will operate over a temperature range of -25º C to +70º C with no heat sink
Voltage regulation over input range of
or electrical derating. These units are excellent for applications where input voltage varies
dramatically, yet a high efficiency and output voltage regulation must be maintained.
Unit
TYPICAL CHARACTERISTICS:
Test conditions:
25º C ambient.
Operating temperature:
-25º C to +70º C ambient.
Output voltage tolerance:
±1% at typical input voltage
Output voltage temperature coefficient:
0.02%/ºC
Storage temperature:
-55º C to +125º C
Short circuit protection:
Temporary
Operating frequency:
40 KHz, typ.
OPTIONS AVAILABLE
Per Mil. Std. 883
Expanded operating temp. (-55º C to +85º C)
Stabilization Bake (125º C ambient)
Temperature Cycle (-55º C to +125º C)
Hi Temp, full power burn in (100% power, 125º C case temp)
LRE
LRF
LRA
LRB
LRC
Low
5V
8V
18V
36V
18V
High
15V
24V
36V
60V
60V
Encapsulated semiconductors, conservatively rated for maximum reliability.
Load regulation (see table for typical variation at different loads)
Line regulation = Typical values
5-15V DC = ±1.5%
8-24V DC = ±1.5%
18-36V DC = ±1.0%
36-60V DC = ±1.0%
18-60V DC = ±1.5%
High efficiency - up to 80%
Will operate over a temperature range of -25º C to +70º C with no heat sink or electrical derating
6 sided shielding
Isolation - 100 megohms at 500 volts DC
External output trimming pin standard, +5%
Single and dual isolated outputs
Each unit is supplied with an external control pin. This "C" pin, when connected to the negative (-) input,
will disable the unit, allowing for remote shutdown.
SERIES LR - SINGLE OUTPUT
PICO
Part
Number
LRE2S
LRE3.3S
LRE5S
LRE5.2S
LRE9S
LRE12S
LRE15S
LRE24S
LRE28S
LRE48S
LRE100S
LRF2S
LRF3.3S
LRF5S
LRF5.2S
LRF9S
LRF12S
LRF15S
LRF24S
RF28S
LRF48S
LRF100S
LRA2S
LRA3.3S
LRA5S
LRA5.2S
LRA9S
LRA12S
LRA15S
LRA24S
LRA28S
LRA48S
LRA100S
LRB2S
LRB3.3S
LRB5S
LRB5.2S
LRB9S
LRB12S
LRB15S
LRB24S
LRB28S
LRB48S
LRB100S
LRC2S
LRC3.3S
LRC5S
LRC5.2S
LRC9S
LRC12S
LRC15S
LRC24S
LRC28S
LRC48S
Input
Volt.
Range
5-15
5-15
5-15
5-15
5-15
5-15
5-15
5-15
5-15
5-15
5-15
8-24
8-24
8-24
8-24
8-24
8-24
8-24
8-24
8-24
8-24
8-24
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-60
36-60
36-60
36-60
36-60
36-60
36-60
36-60
36-60
36-60
36-60
18-60
18-60
18-60
18-60
18-60
18-60
18-60
18-60
18-60
18-60
Output
Volt.
DC
2
3.3
5
5.2
9
12
15
24
28
48
100
2
3.3
5
5.2
9
12
15
24
28
48
100
2
3.3
5
5.2
9
12
15
24
28
48
100
2
3.3
5
5.2
9
12
15
24
28
48
100
2
3.3
5
5.2
9
12
15
24
28
48
Max.
Load
Current
(mA)
1000
910
600
576
444
333
267
167
143
83
40
1500
1212
1000
961
556
417
333
208
179
104
50
1500
121
1000
961
556
417
333
208
179
104
50
1500
1212
1000
961
556
417
333
208
179
104
50
1500
1212
1000
961
556
417
333
208
179
104
Max.
Output
Power
(watts)
2
3
3
3
4
4
4
4
4
4
4
3
4
5
5
5
5
5
5
5
5
5
3
4
5
5
5
5
5
5
5
5
5
3
4
5
5
5
5
5
5
5
5
5
3
4
5
5
5
5
5
5
5
5
Eff. @
Full
Load
Typical
(%)*
68
75
78
78
78
79
79
80
80
80
80
69
75
78
78
78
79
79
80
80
80
80
69
76
76
76
76
77
79
80
80
80
80
67
74
74
74
74
74
76
76
76
76
78
67
74
76
76
76
76
77
78
78
78
Input
Current
Full
Load
Typical
(mA)*
294
400
385
385
515
505
505
500
500
500
500
272
333
400
400
400
395
395
390
390
390
390
161
195
245
245
245
240
235
230
230
230
230
93
113
140
140
140
140
135
135
135
135
135
115
139
170
170
170
170
165
165
165
165
Output
Volt.
Ripple@
Full LD.
1-1 MHz BW
mv p-p
150
200
150
150
125
125
125
125
125
175
200
150
200
150
150
125
125
125
125
125
175
200
150
150
100
100
100
100
100
100
100
150
200
150
150
100
100
100
100
100
100
100
150
200
150
150
100
100
100
100
100
100
100
150
Output
Volt.
Tolerance
(± %)*
1.50
1.00
0.75
0.75
0.50
0.50
0.50
0.50
0.50
0.50
0.50
1.50
1.00
0.75
0.75
0.50
0.50
0.50
0.50
0.50
0.50
0.50
1.50
1.00
0.75
0.75
0.50
0.50
0.50
0.50
0.50
0.50
0.50
1.50
1.00
0.75
0.75
0.50
0.50
0.50
0.50
0.50
0.50
0.50
1.50
1.00
0.75
0.75
0.50
0.50
0.50
0.50
0.50
0.50
**
V LD.
Reg.
25%-100%
Load
(± %)*
3.50
3.00
1.50
1.50
1.25
1.25
1.25
1.00
1.00
1.00
1.00
3.50
3.00
1.50
1.50
1.25
1.25
1.25
1.00
1.00
1.00
1.00
4.00
3.00
2.00
2.00
2.00
2.00
1.50
1.50
1.50
1.00
1.00
4.00
3.00
1.25
1.25
1.00
1.00
1.00
0.75
0.75
0.75
1.00
4.00
3.00
2.00
2.00
1.00
1.00
1.00
0.75
0.75
0.75
Line
Regu-
lation
(± %)*
3.50
2.75
2.00
2.00
1.50
1.25
1.25
1.25
1.00
1.00
1.00
3.00
2.75
2.00
2.00
1.50
1.25
1.25
1.25
1.00
1.00
1.00
2.00
1.50
0.75
0.75
0.50
0.50
0.50
0.25
0.25
0.25
0.50
2.00
1.50
0.50
.050
0.25
0.25
0.25
0.25
0.25
0.25
0.50
2.50
1.75
1.25
1.25
0.75
0.75
0.75
0.50
0.50
0.50
Price
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
157.43
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
157.43
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
125.94
157.43
148.84
148.84
148.84
148.84
148.84
148.84
148.84
148.84
148.84
148.84
186.05
160.29
160.29
160.29
160.29
160.29
160.29
160.29
160.29
160.29
160.29
http://www.picoelectronics.com/dcdclow/pe82_83.htm?PartNo=LRC100S
3/25/2009

Recommended Resources

High-precision low-noise filter circuit design

Automatic tuning control circuit

Microcomputer air conditioner control circuit

High voltage generator circuit

Infrared photoelectric pulse input circuit

Gain programmable amplifier circuit

【LPC54100】I want information about the LPC54100 board with LCD that was given out at the event.
[size=5] The board I received has an LCD. I can't find any information about this board online, and I don't know how to simulate it. How did you get started? Please share. [/size]...
lb8820265 NXP MCU
Looking for VxWorks BSP for AT91RM9200!
I downloaded AT91RM9200(DKEK)VxWorksBSP.RAR from www.pudn.com, but I found out it was just a developer guide, not source code. I am planning to use AT91RM9200 and buy an evaluation board, but I don't ...
ldfree Real-time operating system RTOS
Questions about burning program
I would like to ask if the STM32L4 chip can be programmed through the microUSB port without using a serial port chip, and which pin should be connected?...
乐乐老了 stm32/stm8
Which sensor is suitable for infrared thermometer
Hey everyone, the topic of my graduation project is to make an infrared thermometer, but I don’t know which sensor is better. I hope you can give me some help. Thank you!...
shixiongweng Sensor
Electronic password lock design and paper
Electronic password lock design and paper...
刘大洋 51mcu
15075018luerdu(Program 1)
The function of this program is to send the pulse obtained by V/F conversion to the T0 port of the microcontroller for counting, and put the counting result into R2, R3. ;[/font][/size][font=宋体][size=...
15075018luerdu MCU
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. CA22J76207DQ
  2. D44C-R1LA
  3. 0607-N-302U-B-003000
  4. ECCM5A5DB50-30.3061M
  5. PC06-13
  6. 356.033-20-400
  7. 0805B683J100CT
  8. CAR20101.6KOHMS0.1%5PPM
  9. AME8501AEETDD21
  10. 1SMA4737-AU_A0_00001
  11. CRH2512JR500E04Z
  12. 0805W8F422KT5E

Popular Articles

  1. LMSCA system helps users achieve precise positioning
  2. ST's 200W digital power solution for LED TVs meets stringent eco-design standards
  3. 22-Digital clock (perpetual calendar) based on 51 single chip microcomputer
  4. Rohde & Schwarz launches R&S VSESIM-VSS, combining EDA simulation and hardware testing
  5. VeriSilicon's Dai Weimin: From IP Chip to Chip Platform
  6. CEVA and Mimi Collaborate to Advance Assisted Hearing for the True Wireless Headphones Market
  7. 51 single chip microcomputer realizes digital tube as instrument panel to display the direction, speed and movement of the marquee
  8. OnePlus 10 Pro officially released: a high-performance flagship with a starting price of 4,699 yuan
  9. Zhezhong Shares: Guojing Semiconductor produces 12-inch silicon wafer automatic production line for integrated circuits
  10. Black Sesame Intelligence and Hirain Technologies collaborate to create full-scenario intelligent driving solutions

Technical ResourceMore

  1. Application of frequency conversion signal isolation drive circuit for field-controlled power devices
  2. Research and design of a DC-DC boost converter based on voltage mode PFM control
  3. CN201510482294-LED constant current drive circuit and control method thereof
  4. RSD pulse power supply using resonance triggering method
  5. STM32 official 1588 protocol routine modified version
  6. Key points of logic synthesis (Design Compiler)
  7. GPIO simulation of SWIM protocol
  8. 精密數位類比轉換器
  9. PCB layout techniques to reduce signal coupling during RF product design
  10. Optical Design of LED Lighting Fixtures

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 64  555  2879  2392  1193  2  12  58  49  25
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
