PLRF48D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PLRF48D

PLRF48D: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 2.5W, Hybrid,; CategoryPower/power management The power supply circuit; File Size163KB，6 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric View All

PLRF48D Overview

DC-DC Regulated Power Supply Module, 2 Output, 2.5W, Hybrid,

PLRF48D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
package instruction	, MODULE,8LEAD,.9
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	80%
Maximum input voltage	24 V
Minimum input voltage	8 V
JESD-30 code	R-XDMA-P8
JESD-609 code	e0
Maximum grid adjustment rate	1%
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output current	0.052 A
Maximum output voltage	50.4 V
Minimum output voltage	48 V
Nominal output voltage	48 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,8LEAD,.9
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2.5 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES PLR

DCDC CONVERTERS

Wide Input Range/up to 3.33:1

Isolated Regulated up to 5 Watt

DCDC Converters

Fully Regulated

All Units Shielded

This series of Low Profile 0.300", high efficiency, wide

FEATURES

input range, encapsulated regulators come in 85

Voltage regulation over input range of

different models. These units featue a 500 VOLT DC

input to output isolation in both single and dual output

Unit

Low

High

models. The PLR Series will operate from 25º C to

+70º C with no heat sink or electrical derating. These

PLRE

15V

units are excellent for applications where input voltage

PLRF

24V

varies dramatically, yet a high efficiency and output

PLRA 18V

36V

voltage regulation must be maintained.

PLRB

36V

60V

TYPICAL CHARACTERISTICS:

PLRC

18V

60V

Test conditions: 25º C ambient.

Operating temperature: 25º C to +70º C

ambient.

Output voltage tolerance: ±1% at typical

input voltage

Output voltage temperature coefficient:

0.02%/ºC

Storage temperature: 55º C to +125º C

Short circuit protection: Temporary

Operating frequency: 40 KHz, typical

OPTIONS AVAILABLE

Per Mil. Std. 883

Expanded operating temp. (55º C to +85º C)

Stabilization Bake (125º C ambient)

Temperature Cycle (55º C to +125º C)

Hi Temp, full power burn in (100% power, 125º

C case temp)

0.300" Height

Encapsulated semiconductors, conservatively

rated for maximum reliability.

Load regulation (see table for typical variation at

different loads)

Line regulation = Typical values

515V DC = ±1.5%

824V DC = ±1.5%

1836V DC = ±1.0%

3660V DC = ±1.0%

1860V DC = ±1.5%

High efficiency up to 80%

Will operate over a temperature range of 25º C

to +70º C with no heat sink or electrical

derating

6 sided shielding

Isolation 100 megohms at 500 Volts DC

External output trimming pin standard, +5%

Single and dual isolated outputs

Each unit is supplied with an external control

pin. This "C" pin, when connected to the

negative () input, will disable the unit, allowing

for remote shutdown.

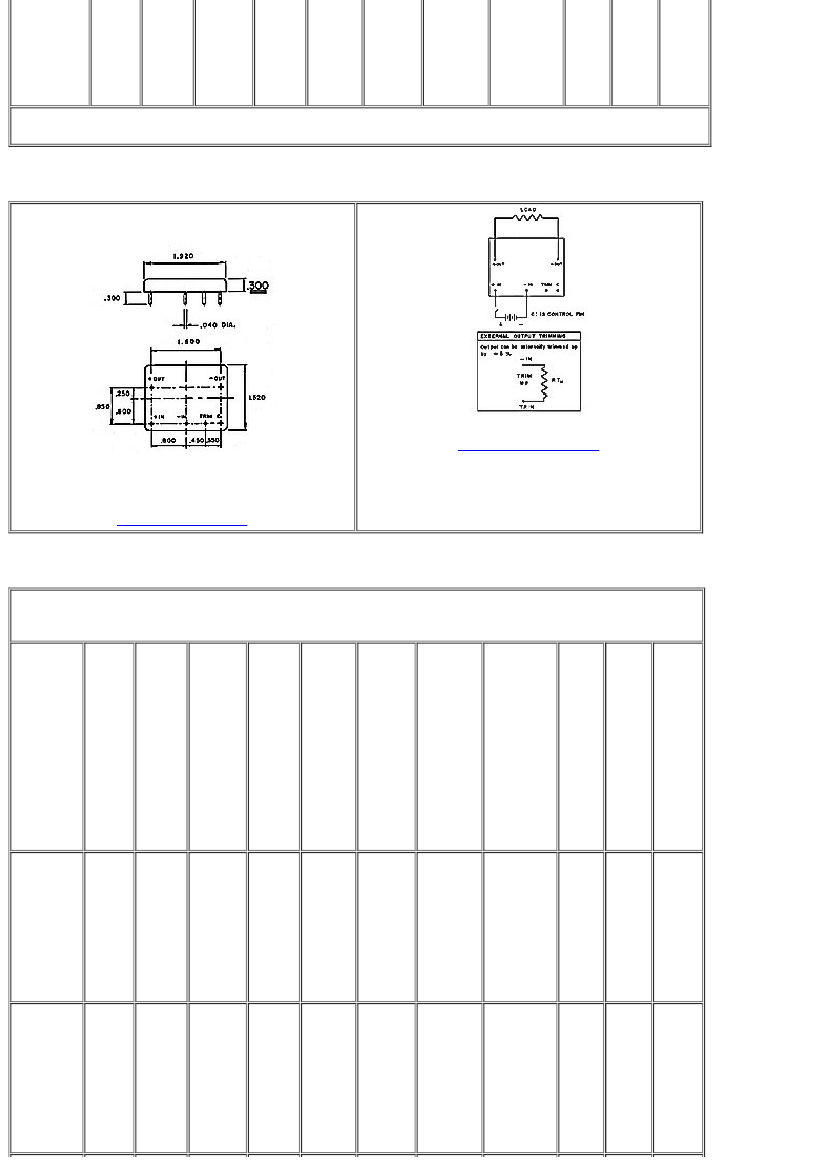

SERIES PLR SINGLE OUTPUT
