RoHS
PCS64
Power Chip Shielded Inductors

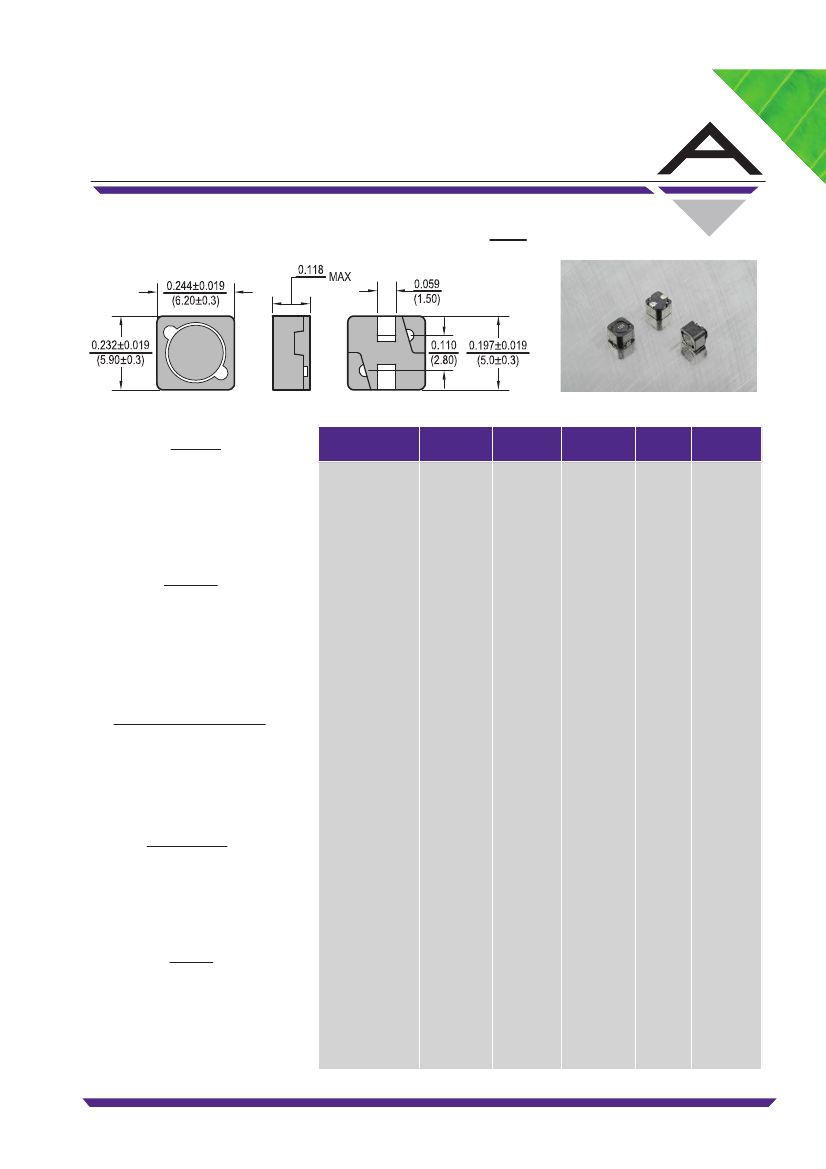

Dimensions:
Inches
(mm)
(5.00)
XXX
Features
• Magnetically Shielded
• Low DC Resistance
• High Energy Storage
• Low Energy Loss
• Suitable for pick and place
Allied
Part
Number
Inductance
(µh)
Tolerance
(%)
Test
Freq.
KHz, 1V
DCR
Max.
(Ω)
IDC
(A)
PCS64-100M-RC
PCS64-120M-RC
PCS64-150M-RC
PCS64-180M-RC
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.12
0.13
0.18
0.24
0.27
0.30
0.33
0.37
0.52
0.56
0.63
0.71
1.03
1.15
1.68
1.87
2.08
2.37
2.67
2.94
3.93
5.43
7.32
8.24
9.26
1.35
1.22
1.11
1.02
0.91
0.82
0.74
0.69
0.62
0.58
0.51
0.46
0.42
0.38
0.35
0.32
0.29
0.26
0.23
0.22
0.20
0.18
0.17
0.15
0.14
Electrical
Inductance Range:
10µh to 1000µh
Tolerance:
20% over entire range
Test Frequency:
1KHz, 1V
Operating Temp:
-40ºC ~ 85ºC
IDC:
Inductance Drop 35% Typ. at
rated IDC.
PCS64-220M-RC
PCS64-270M-RC
PCS64-330M-RC
PCS64-390M-RC
PCS64-470M-RC
PCS64-560M-RC
Resistance to Soldering Heat
Pre-Heat 150ºC, 1 Min.
Solder Composition:
Sn/Ag3.0/Cu0.5
Solder Temp:
260ºC +/- 5ºC
Immersion time:
10 sec. +/- 1 sec.
PCS64-680M-RC
PCS64-820M-RC
PCS64-101M-RC
PCS64-121M-RC
PCS64-151M-RC
Test Equipment
(L):
HP 4192A LF Impedance Analyzer
(RDC):
Chen Hwa 502
(IDC):
Chen Hwa 1061 + Chen Hwa 301A
or HP4284A + HP42841A
PCS64-181M-RC
PCS64-221M-RC
PCS64-271M-RC
PCS64-331M-RC
Physical
Packaging:
1000 pieces per 13 inch reel.
Marking:
EIA Inductance Code.
PCS64-391M-RC
PCS64-471M-RC
PCS64-561M-RC
PCS64-681M-RC
PCS64-821M-RC
PCS64-102M-RC
All specifications subject to change without notice.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 2/25/09
www.alliedcomponents.com
