HTMS-102-51-F-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> HTMS-102-51-F-D

HTMS-102-51-F-D: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size133KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HTMS-102-51-F-D Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

HTMS-102-51-F-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
body width	0.196 inch
subject depth	0.1 inch
body length	0.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HTMS
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION AK

DO NOT

SCALE FROM

THIS PRINT

(No OF POS x .050 [1.27]) +.002/ -.010

[+.05 / -.25]

.096 2.44

REF

.050 1.27 REF

No OF POSITIONS

-01 THRU -50 (PER ROW)

LEAD STYLE

SEE TABLE 1

HTMS-1XX-XX-XX-X-XXX

OPTION

-POLARIZING SPECIFICATION

-XXX INDICATES POSITION TO BE OMITTED

(SEE FIG 2)

HTMS-50-S

-S ROW

(No OF POS x .050 [1.27]) +.002/ -.010

[+.05 / -.25]

.196 4.98

REF

100

.100 2.54

REF

PLATING SPECIFICATION

BODY SPECIFICATION

-G: 10µ" GOLD IN CONTACT AREA,

-S: SINGLE (USE HTMS-50-S)

3µ" GOLD ON TAIL

-D: DOUBLE (USE HTMS-50-D)

-T: MATTE TIN CONTACT AND TAIL

(ONLY AVAILABLE ON LEAD STYLES -01, -02, -51 AND -52)

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-H: 30µ" HEAVY GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-TM: MATTE TIN CONTACT AND TAIL

-SM: 30µ" SELECTIVE HEAVY GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-FM: 3µ" FLASH SELECTIVE GOLD ON CONTACT AREA,

MATTE TIN ON TAIL

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

.050 1.27 REF

.018 0.46 SQ REF

-D ROW

HTMS-50-D

2 MAX SWAY

(EITHER DIRECTION)

2 MAX SWAY

(EITHER DIRECTION)

2 MAX SWAY

(EITHER DIRECTION)

CONTACT

AREA

"B"

"L"

"B"

"L"

T-1M6-XX-XX-2

.100 2.54

REF

.100 2.54

REF

.120 3.05 TAIL REF

(STYLE -21= .175)

.020 0.51 REF

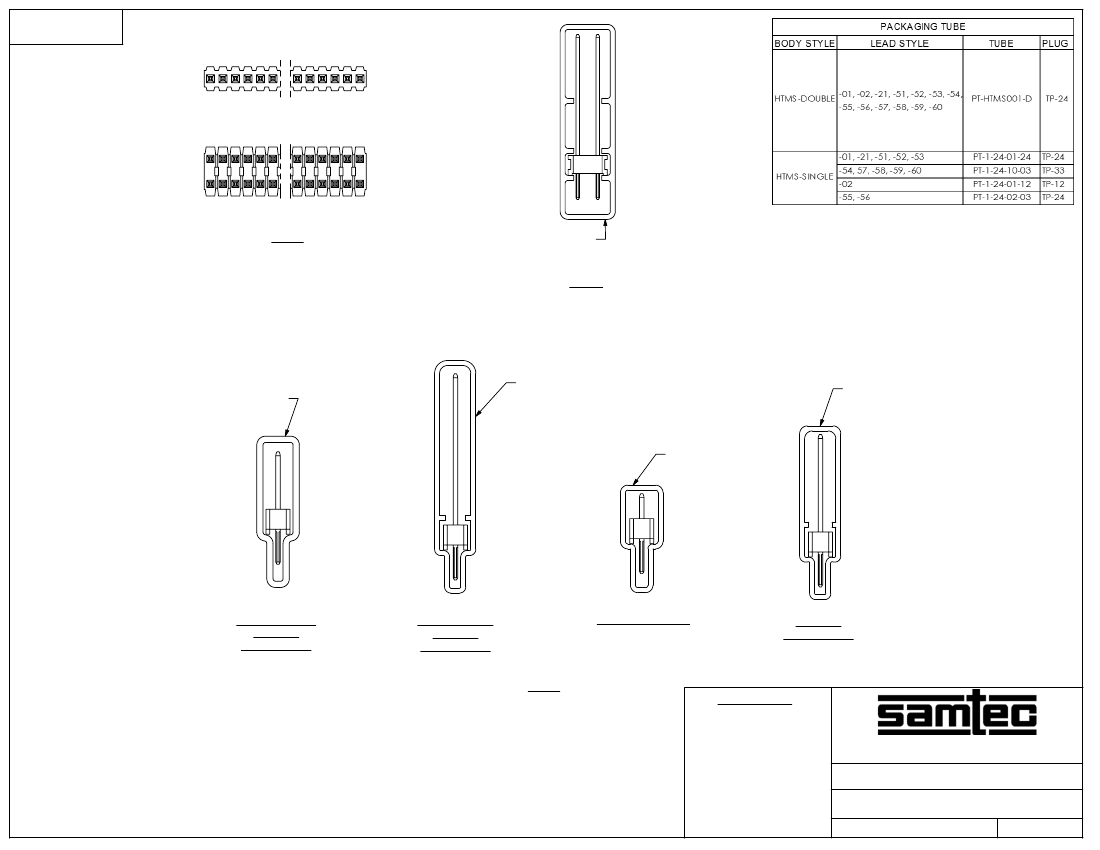

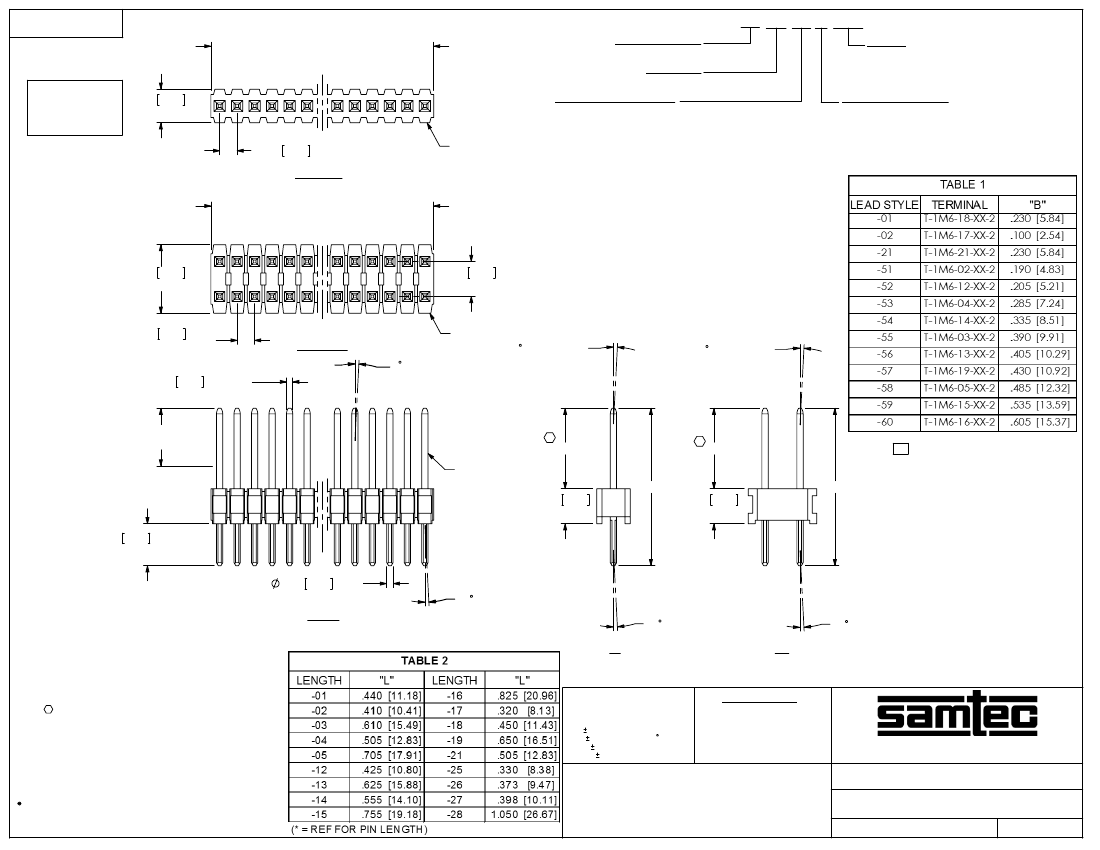

FIG 1

HTMS-1XX-01-X-S SHOWN

2 MAX SWAY

(EITHER DIRECTION)

-S

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MAXIMUM CUT FLASH: .010[.25].

3. MINIMUM PUSHOUT FORCE: 2 LBS .

4. MAXIMUM ALLOWABLE BOW: .005[.013]

INCH/INCH AFTER ASSEMBLY.

5. MAXIMUM PIN ROTATION IN BODY: 2°.

6. POSITIONS -08 THROUGH -50 ARE TO BE

PACKAGED IN TUBES; POSITIONS -01 THROUGH

-07 ARE TO BE LAYER PACKAGED.

2 MAX SWAY

(EITHER DIRECTION)

-D

2 MAX SWAY

(EITHER DIRECTION)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.X: .1 [2.5]

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

MATERIAL:

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: BLACK, LCP, UL 94 VO

TERMINAL: PHOSPHOR BRONZE

HI-TEMP TERMINAL MICRO-STRIP

HTMS-1XX-XX-XX-X-XXX

SHEET

F:\DWG\MISC\MKTG\HTMS-1XX-XX-XX-X-XXX-MKT.SLDDRW

BY:

G. REIDINGER 02/24/1992
