PCSLF0628-4R7M-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PCSLF0628-4R7M-RC

PCSLF0628-4R7M-RC: Description1 ELEMENT, 4.7 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size92KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

PCSLF0628-4R7M-RC Overview

1 ELEMENT, 4.7 uH, GENERAL PURPOSE INDUCTOR, SMD

PCSLF0628-4R7M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	2424
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2424
DC Resistance	0.028 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

RoHS

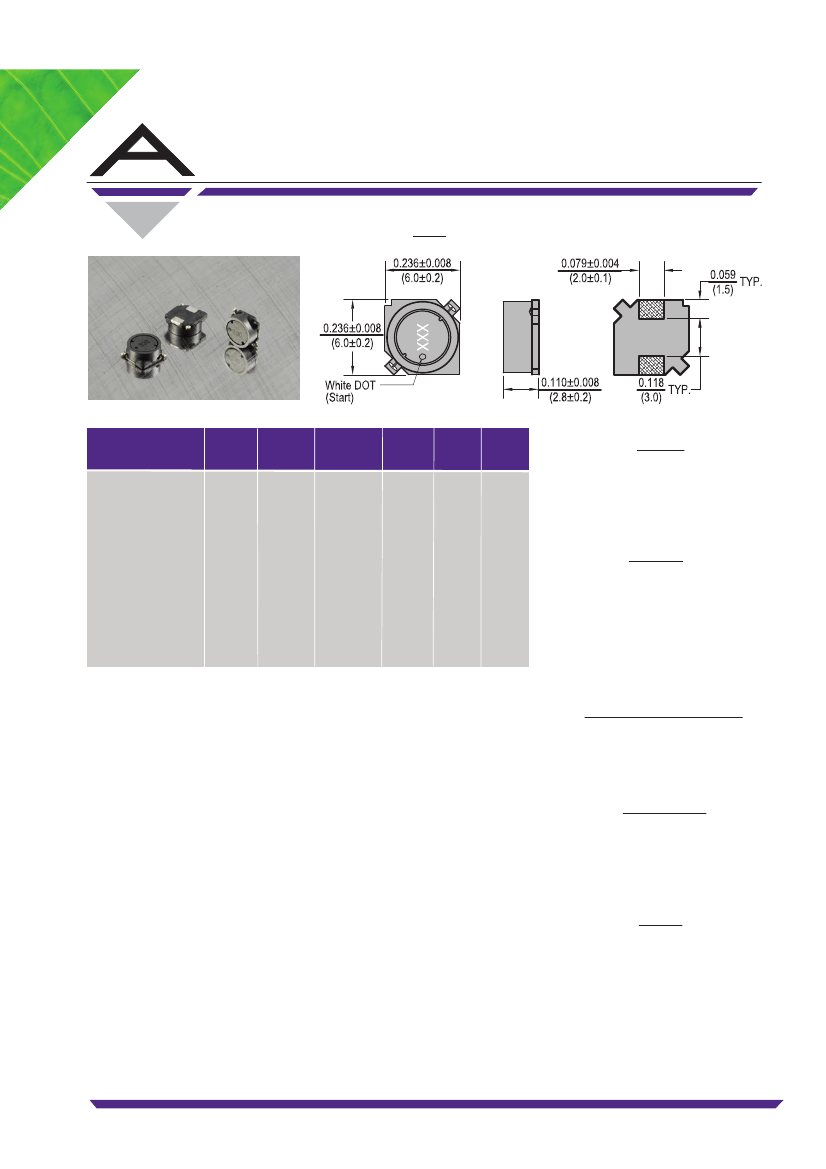

Power Chip Shielded Inductors

Dimensions:

Inches

(mm)

PCSLF0628

Allied

Part

Number

Inductance Tolerance

(µH)

(%)

Test

Freq.

KHz, 0.5V

RDC

(Ω)

±20%

IDC

(A)

Itemp

(A)

Max.

Features

•

Shielded SMD Power Inductor

Suitable for high current applications

Low profile

Low Power loss and High current

Electrical

Inductance Range:

4.7µH to 100µH

Tolerance:

20% over entire range

Operating Temp:

-40ºC ~ +85ºC

IDC:

Current at which inductance

drops by 30% of intial value

Itemp:

Current at which the temperature

has risen 25ºC from initial Temp.

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 minute.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC for 10 sec. ± 1 sec.

Test Equipment

(L):

HP 4192A LF Impedance Analyzer

(RDC):

Chen Hwa 502BC

(IDC):

HP4284A + HP42841A

PCSLF0628-4R7M-RC

PCSLF0628-5R4M-RC

PCSLF0628-6R8M-RC

PCSLF0628-100M-RC

PCSLF0628-150M-RC

PCSLF0628-220M-RC

PCSLF0628-330M-RC

PCSLF0628-470M-RC

PCSLF0628-680M-RC

PCSLF0628-101M-RC

4.7

5.4

6.8

100

.028

.033

.035

.053

.075

.104

.148

.210

.290

.430

1.6

1.5

1.3

1.0

.77

.69

.59

.50

.42

2.5

2.0

2.2

1.8

1.4

1.3

1.1

0.92

0.78

0.64

All specifications subject to change without notice.

Physical

Packaging:

1000 pieces per 13 inch reel.

Marking:

EIA Inductance Code

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 12/16/08

www.alliedcomponents.com

PCSLF0628-4R7M-RC Related Products

	PCSLF0628-4R7M-RC	PCSLF0628-100M-RC	PCSLF0628-150M-RC	PCSLF0628-680M-RC	PCSLF0628-470M-RC	PCSLF0628-330M-RC	PCSLF0628-101M-RC	PCSLF0628-220M-RC	PCSLF0628-5R4M-RC	PCSLF0628-6R8M-RC
Description	1 ELEMENT, 4.7 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 68 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 47 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 22 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 5.4 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 6.8 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	2424	2424	2424	2424	2424	2424	2424	2424	2424	2424
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	2424	2424	2424	2424	2424	2424	2424	2424	2424	2424
DC Resistance	0.028 Ω	0.053 Ω	0.075 Ω	0.29 Ω	0.21 Ω	0.148 Ω	0.43 Ω	0.104 Ω	0.033 Ω	0.035 Ω
Nominal inductance(L)	4.7 µH	10 µH	15 µH	68 µH	47 µH	33 µH	100 µH	22 µH	5.4 µH	6.8 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1	e1	e1
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	1.6 A	1.3 A	1 A	0.5 A	0.59 A	0.69 A	0.42 A	0.77 A	1.5 A	1.5 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Base Number Matches	-	-	1	1	1	1	1	1	1	1
