PCSLF1265-4R2T-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PCSLF1265-4R2T-RC

PCSLF1265-4R2T-RC: Description1 ELEMENT, 4.2 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size73KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCSLF1265-4R2T-RC Overview

1 ELEMENT, 4.2 uH, GENERAL PURPOSE INDUCTOR, SMD

PCSLF1265-4R2T-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	4949
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	4949
DC Resistance	0.015 Ω
Nominal inductance(L)	4.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	7.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	30%

Preview

Download Datasheet

View All

RoHS

PCSLF1265

Power Chip Shielded Inductors

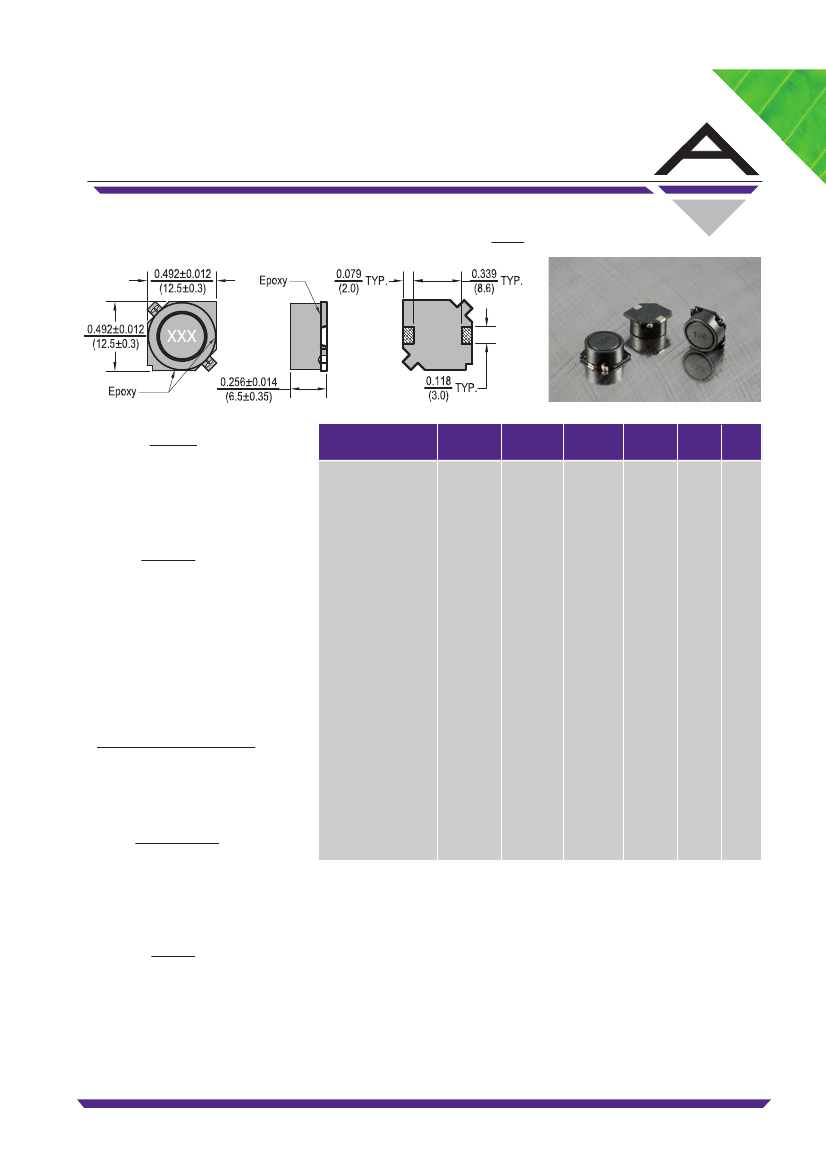

Dimensions:

Inches

(mm)

Features

•

Shielded SMD Power Inductor

Suitable for high current applications

Low Profile

Low Power loss and High current

Allied

Part

Number

Inductance

(uH)

Tolerance

(%)

Test

Freq.

KHz,0.5v

DCR

(Ω)

±20%

IDC

(A)

Itemp

(A)

Max.

PCSLF1265-2R0T-RC

PCSLF1265-4R2T-RC

PCSLF1265-7R0T-RC

PCSLF1265-100T-RC

PCSLF1265-150M-RC

2.0

4.2

7.0

.012

.015

.018

.020

.024

7.3

5.7

5.0

4.2

3.5

6.2

5.5

5.0

4.8

4.4

3.8

Electrical

Inductance Range:

2µH to 220µH

Tolerance:

30% up to 7.0µh, 20% from 10µh

and above, tighter tolerances available

Operating Temp:

-40ºC ~ +85ºC

IDC:

Current at which inductance

drops by 10% of intial value

Itemp current:

Value obtained when

current flows and the temperature has

risen by 40ºC

PCSLF1265-220M-RC

.032

PCSLF1265-330M-RC

PCSLF1265-470M-RC

PCSLF1265-680M-RC

.041

.058

.079

2.8

2.4

2.0

3.4

2.8

2.4

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 minute.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC for 10 sec. ± 1 sec.

Test Equipment

PCSLF1265-101M-RC

PCSLF1265-221M-RC

(L):

HP 4192A

(RDC):

Chen Hwa 502BC

(IDC):

HP4284A + HP42841A /

Chen Hwa 1061 + 301A

Physical

Packaging:

500 pieces per 13 inch reel.

Marking:

EIA Inductance Code

100

220

.123

.273

1.6

1.0

1.9

1.2

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 12/19/08

www.alliedcomponents.com
