ADP-ED10326/1+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ADP-ED10326/1+

ADP-ED10326/1+: DescriptionCombiner, 0.3MHz Min, 970MHz Max, 0.8dB Insertion Loss-Max, CASE CD636, 6 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size93KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ADP-ED10326/1+ Overview

Combiner, 0.3MHz Min, 970MHz Max, 0.8dB Insertion Loss-Max, CASE CD636, 6 PIN

ADP-ED10326/1+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	ISOLATION-MIN (DB):25
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum insertion loss	0.8 dB
JESD-609 code	e3
Maximum operating frequency	970 MHz
Minimum operating frequency	0.3 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Power Splitter/Combiner

2 Way-0°

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

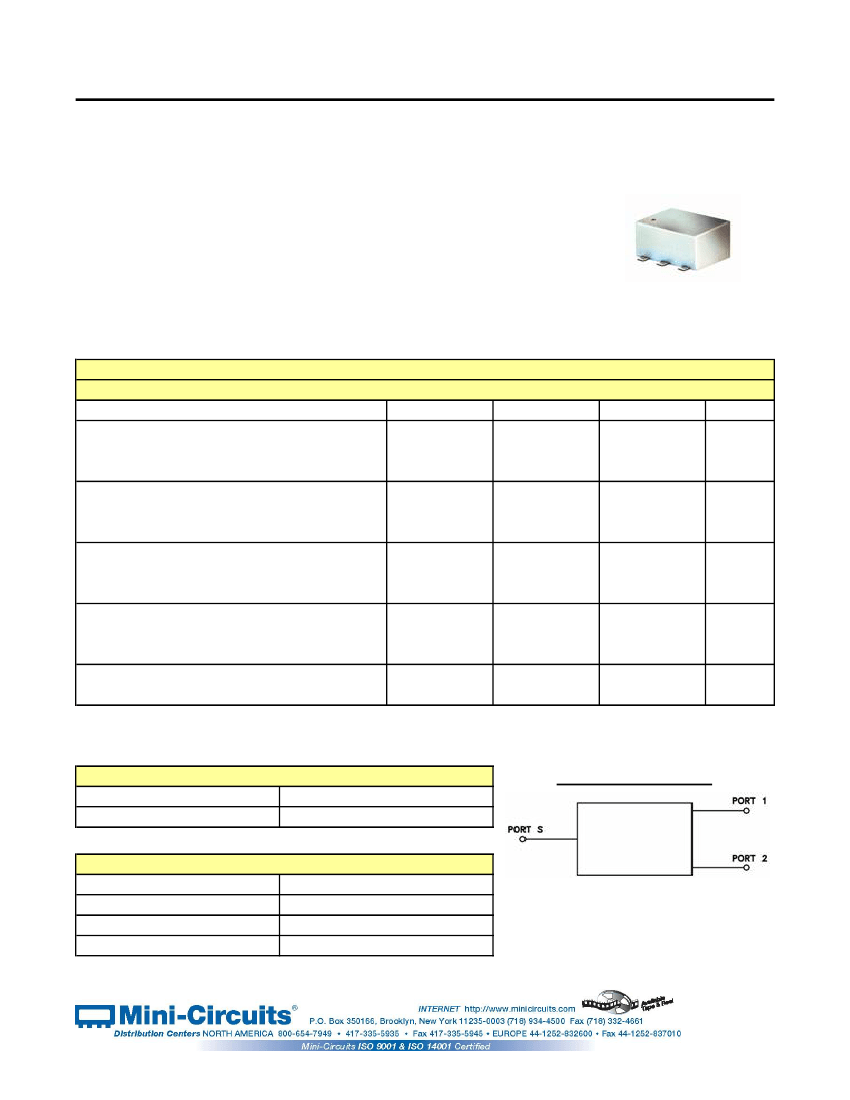

ADP-ED10326/1

CASE STYLE : CD636

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Frequency

Isolation

Min.

0.3

0.3 - 3 MHz

3 - 485 MHz

485 - 970 MHz

0.3 - 3 MHz

3 - 485 MHz

485 - 970 MHz

0.3 - 3 MHz

3 - 485 MHz

485 - 970 MHz

0.3 - 3 MHz

3 - 485 MHz

485 - 970 MHz

SUM Port

OUT Ports

Typ.

0.40

0.80

0.273

0.038

0.110

0.005

0.028

0.098

1.30

Max.

970

Units

MHz

deg.

(:1)

Insertion Loss Above 3.0 dB

Phase Unbalance

Amplitude Unbalance

VSWR

MAXIMUM RATINGS

-40°C to 85°C

Operating Temperature

-55°C to 100°C

Storage Temperature

PIN CONNECTIONS

SUM PORT

PORT 1

PORT 2

GND EXT

2, 5, 6

Functional Diagram

REV. X1

ADP-ED10326/1

060712

Page 1 of 1

ADP-ED10326/1+ Related Products

	ADP-ED10326/1+	ADP-ED10326/1
Description	Combiner, 0.3MHz Min, 970MHz Max, 0.8dB Insertion Loss-Max, CASE CD636, 6 PIN	Combiner, 0.3MHz Min, 970MHz Max, 0.8dB Insertion Loss-Max, CASE CD636, 6 PIN
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Other features	ISOLATION-MIN (DB):25	ISOLATION-MIN (DB):25
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Maximum insertion loss	0.8 dB	0.8 dB
JESD-609 code	e3	e0
Maximum operating frequency	970 MHz	970 MHz
Minimum operating frequency	0.3 MHz	0.3 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	COMBINER	COMBINER
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3	1.3
Base Number Matches	1	1
