IMS1423W-45S: DescriptionIC,SRAM,4KX4,CMOS,LLCC,20PIN,CERAMIC; Categorystorage storage; File Size482KB，10 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

IMS1423W-45S Overview

IC,SRAM,4KX4,CMOS,LLCC,20PIN,CERAMIC

IMS1423W-45S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Reach Compliance Code	not_compliant
Maximum access time	40 ns
I/O type	COMMON
JESD-30 code	R-XQCC-N20
JESD-609 code	e0
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of terminals	20
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX4
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.3X.43
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Minimum standby current	4.5 V
Maximum slew rate	0.105 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

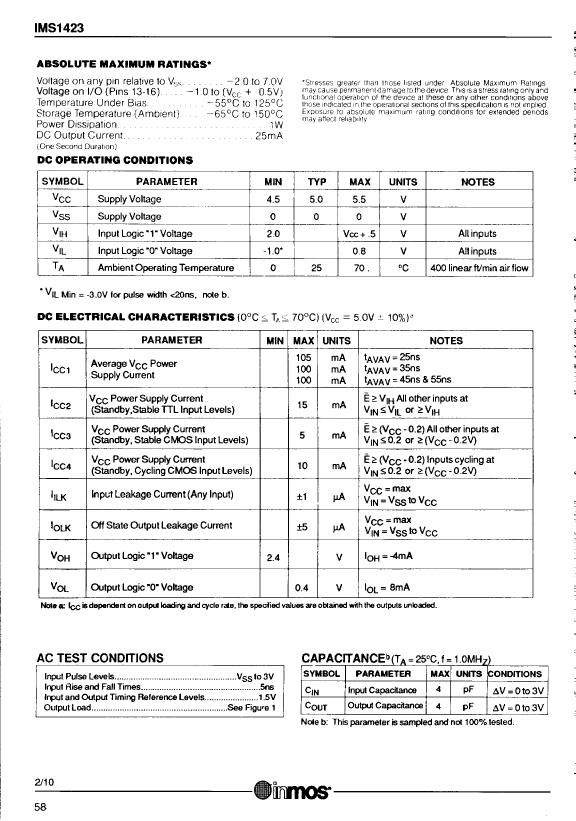

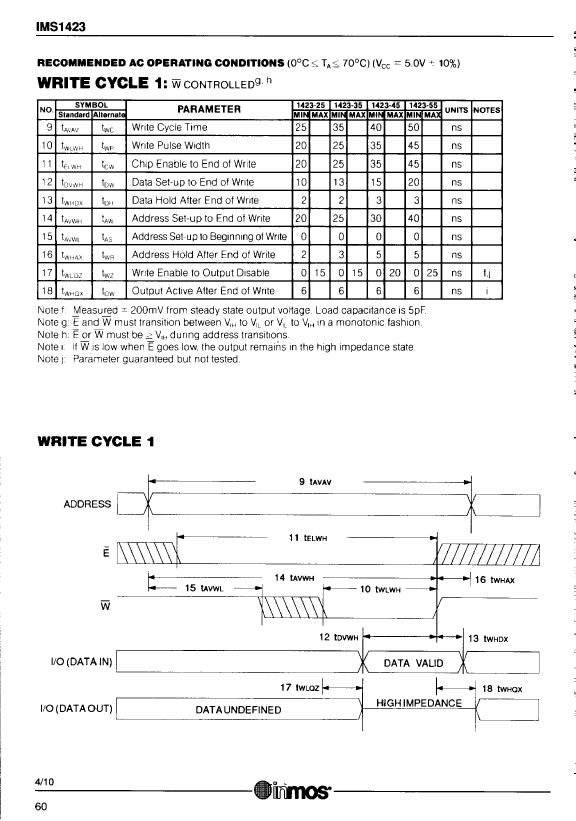

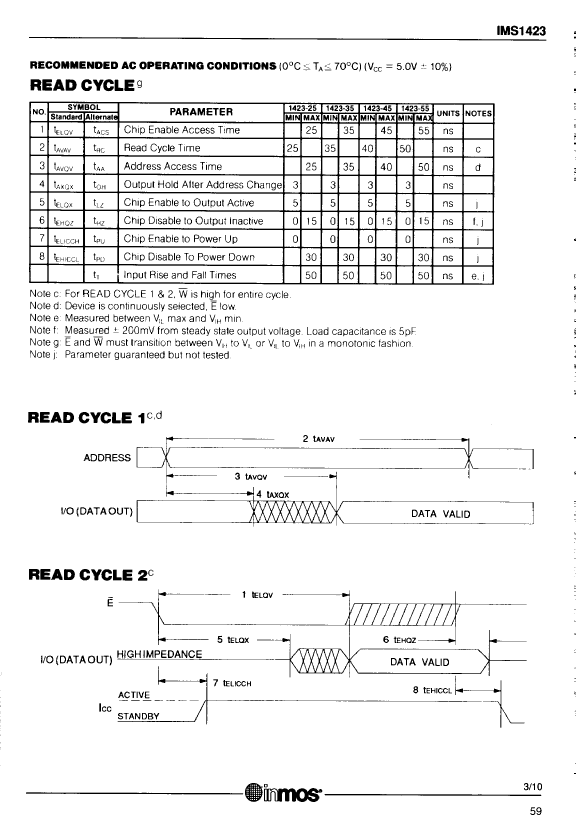

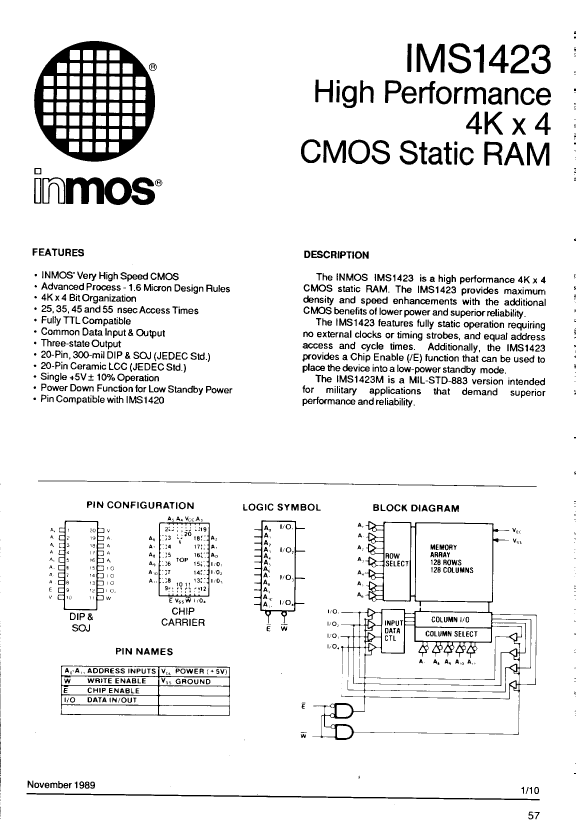

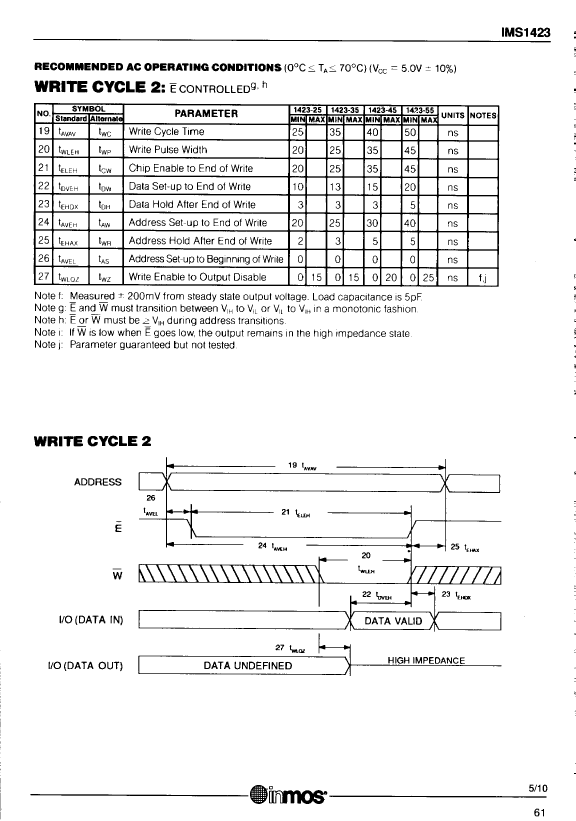

Preview

Download Datasheet

View All

IMS1423W-45S Related Products

	IMS1423W-45S	IMS1423S-25S	IMS1423S-45S	IMS1423P-35S	IMS1423W-35S	IMS1423W-25S	IMS1423W-55S	IMS1423P-45S	IMS1423P-25S
Description	IC,SRAM,4KX4,CMOS,LLCC,20PIN,CERAMIC	IC,SRAM,4KX4,CMOS,DIP,20PIN,CERAMIC	IC,SRAM,4KX4,CMOS,DIP,20PIN,CERAMIC	IC,SRAM,4KX4,CMOS,DIP,20PIN,PLASTIC	IC,SRAM,4KX4,CMOS,LLCC,20PIN,CERAMIC	IC,SRAM,4KX4,CMOS,LLCC,20PIN,CERAMIC	IC,SRAM,4KX4,CMOS,LLCC,20PIN,CERAMIC	IC,SRAM,4KX4,CMOS,DIP,20PIN,PLASTIC	IC,SRAM,4KX4,CMOS,DIP,20PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum access time	40 ns	25 ns	40 ns	35 ns	35 ns	25 ns	55 ns	40 ns	25 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XQCC-N20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-XQCC-N20	R-XQCC-N20	R-XQCC-N20	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4	4	4
Number of terminals	20	20	20	20	20	20	20	20	20
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4	4KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	DIP	DIP	DIP	QCCN	QCCN	QCCN	DIP	DIP
Encapsulate equivalent code	LCC20,.3X.43	DIP20,.3	DIP20,.3	DIP20,.3	LCC20,.3X.43	LCC20,.3X.43	LCC20,.3X.43	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.105 mA	0.105 mA	0.105 mA	0.105 mA	0.105 mA	0.105 mA	0.105 mA	0.105 mA	0.105 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD	DUAL	DUAL
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	-	-	-	-	STMicroelectronics	STMicroelectronics
Base Number Matches	1	1	1	1	1	1	1	-	-
