CA56-12CGKWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CA56-12CGKWA

CA56-12CGKWA: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 14.2mm, ROHS COMPLIANT PACKAGE-12; CategoryLED optoelectronic/LED photoelectric; File Size243KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

CA56-12CGKWA Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 14.2mm, ROHS COMPLIANT PACKAGE-12

CA56-12CGKWA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-12
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.03 A
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

14.22mm (0.56INCH) FOUR DIGIT NUMERIC

DISPLAY

Part Number: CA56-12CGKWA

Green

Features

0.56 inch digit height.

Low current operation.

Excellent character appearance.

Easy mounting on P.C. boards or sockets.

Mechanically rugged.

Standard : gray face, white segment.

RoHS compliant.

Description

The Green source color devices are made with AlGaInP on

GaAs substrate Light Emitting Diode.

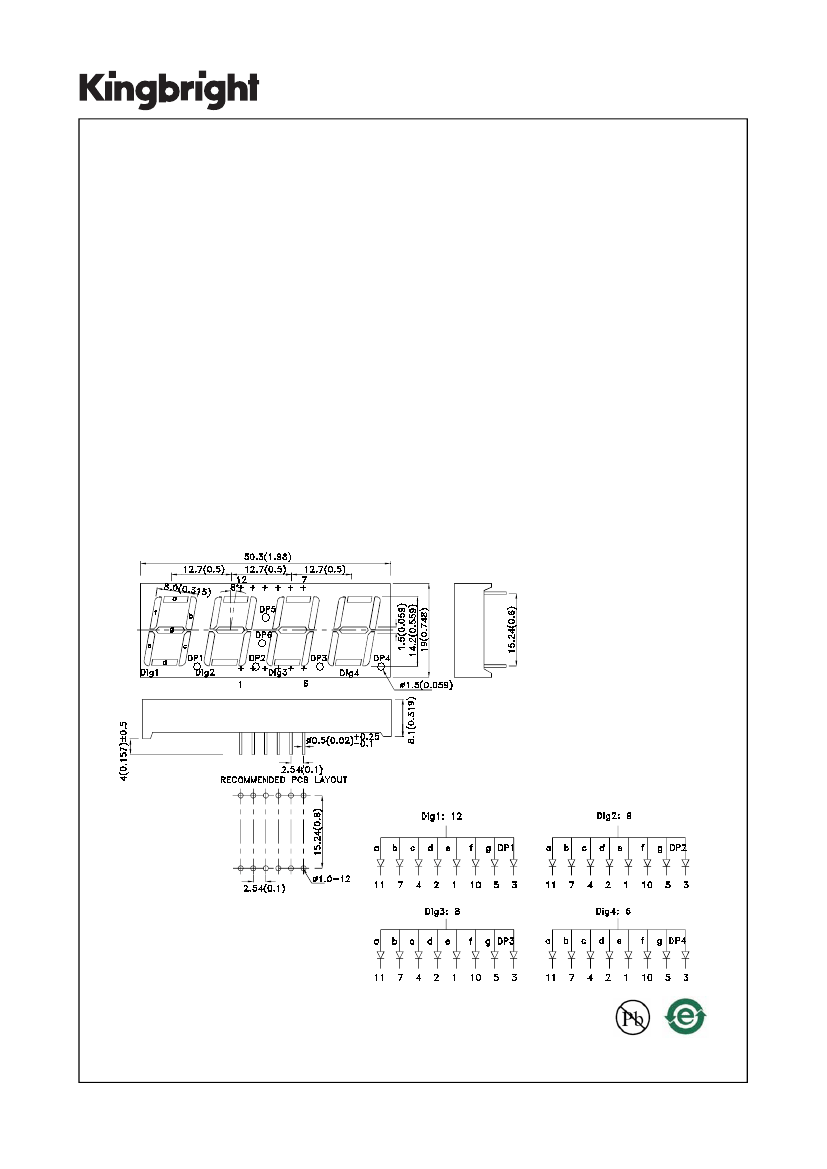

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAD2557

APPROVED: WYNEC

REV NO: V.6A

CHECKED: Joe Lee

DATE: MAY/15/2013

DRAWN: Q.M.CHEN

PAGE: 1 OF 6

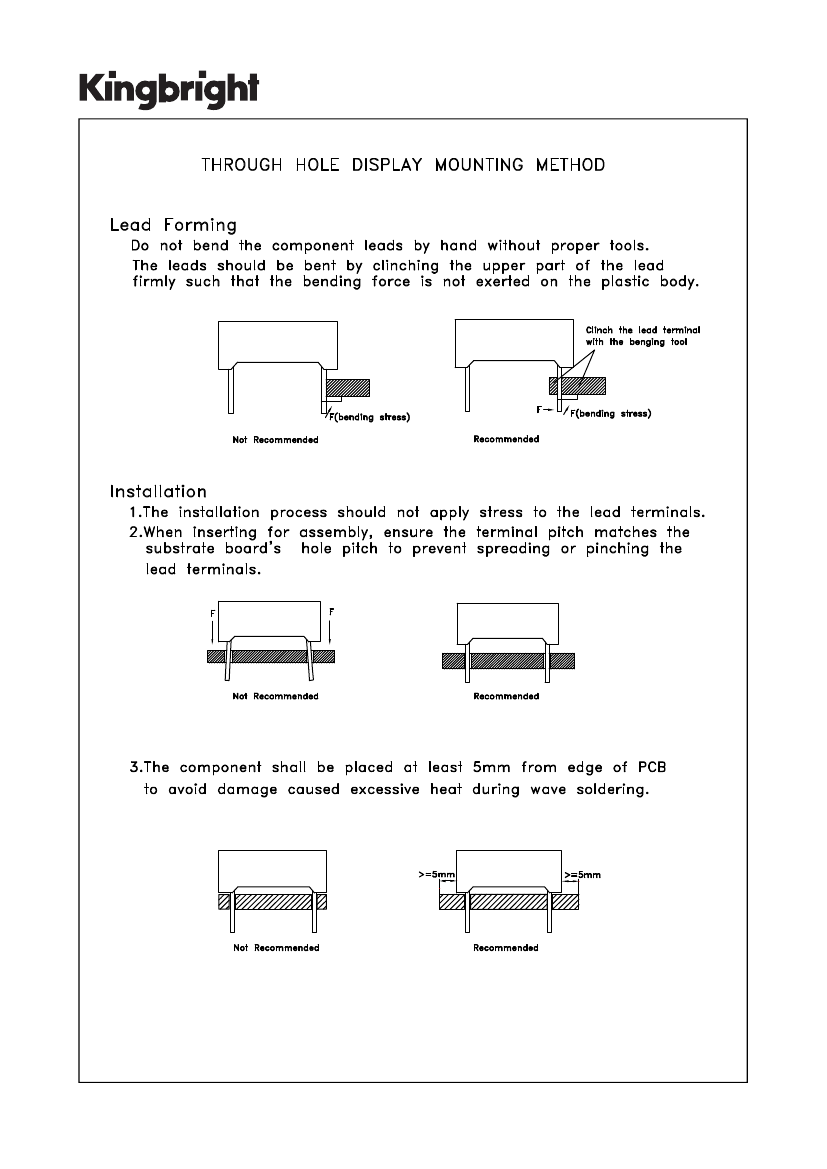

ERP: 1304000264
