TS29150/1/2/3
1.5A Ultra Low Dropout Voltage Regulator
with Multi-Function
TO-220
TO-263
2
(D PAK)

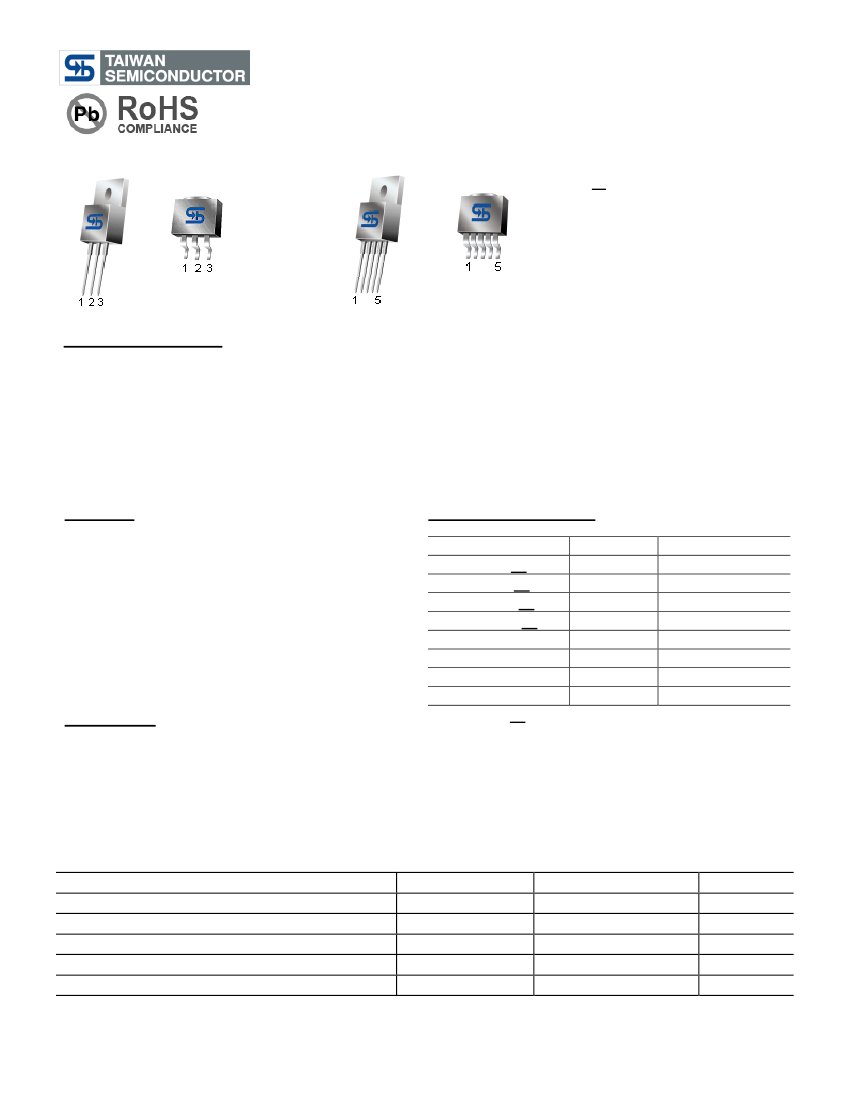

Pin Definition:
TS29150
1. Input
2. Ground (tab)
3. Output
TO-220-5L
TO-263-5L
2
(D PAK)
Pin Definition:
TS29151xx
TS29152
1. Enable
1. Enable
2. Input
2. Input
3. Ground
3. Ground
4. Output
4. Output
5. Flag
5. Adjust
TS29153
1. Flag
2. Input
3. Ground
4. Output
5. Adjust
General Description
TS29150/1/2/3 are using process with a PNP pass element for high current, high accuracy and low dropout voltage
regulators. These regulator s feature 350mV(typ) dropout voltages and very low ground current, these devices also
find applications in lower current and low dropout critical systems, where their tiny dropout voltage and ground current
values are important attributes. TS29150/1/2/3 series are fully protected against over current faults, reversed input
polarity, reversed lead insertion, over temperature operation, positive and negative transient voltage spikes, logic
level enable control and error flag which signals whenever the output falls out of regulation.
On the TS29151 and TS29152, the enable pin may be tied to V
IN
if it is not required for enable control.
Features
●
●
●
●
●
●
●
●
●
Dropout voltage typically 0.6V @ Io=1.5A
Output Current up to 1.5A
Low Ground Current
Extremely Fast Transient Response
+60V Transient Peak Voltage
-20V Reverse Peak Voltage
Zero Current Shutdown Mode
Error Flag Signals Output (TS29101 only)
Current Limit & Thermal Shutdown Protection
TM
Ordering Information
Part No.
Package
Packing
TS29150CZxx C0
TO-220
50pcs / Tube
TS29150CMxx RN
TO-263
800pcs / 13” Reel
TS29151CZ5xx C0
TO-220-5L
50pcs / Tube
TS29151CM5xx RN TO-263-5L
800pcs / 13” Reel
TS29152CZ5 C0
TO-220-5L
50pcs / Tube
TS29152CM5 RN
TO-263-5L
800pcs / 13” Reel
TS29153CZ C0
TO-220-5L
50pcs / Tube
TS29153CM RN
TO-263-5L
800pcs / 13” Reel
Note: Where
xx
denotes voltage option, available are
18=1.8V
25=2.5V
33=3.3V
50=5.0V
Contact to factory for addition output voltage option.
Application
●
●
●
●
●
●
PowerPC Power Supplies
Battery Powered Equipment
Consumer and Personal Electronics
High Efficiency Linear Power Supplies
High-efficiency Post Regulator for Switching Supply
Low-Voltage microcontrollers and Digital Logic
Absolute Maximum Rating
(Note 1)
Supply Voltage
Operation Input Voltage
Power Dissipation (Note 4)
Operating Junction Temperature Range
Storage Temperature Range
Lead Soldering Temperature (260 C)
o
V
IN
V
IN
(operate)
P
D
T
J
T
STG
-20V ~ +60
26
Internally Limited
-40 ~ +125
-65 ~ +150
5
V
V
W
o
o
C
C
S
1/11
Version: A07
TS29150/1/2/3
1.5A Ultra Low Dropout Voltage Regulator
with Multi-Function
Electrical Characteristics
V
IN
=V
OUT
+1V, Venable=2.4V, I
L
=10mA, C
o
=10uF, Adjustable versions are
programmed to 5V output, T
J
=25 C unless otherwise specified.
Parameter
Output Voltage
Output Voltage
Input Supply Voltage
Output Voltage Temperature Coefficient
Line Regulation
Load Regulation
Dropout Voltage (Note 4)
Vo+1V
≤
V
IN
≤
26V
10mA
≤
I
L
≤
1.5A
I
L
=100mA
I
L
=750mA
I
L
=1.5A
Quiescent Current (Note 5)
Short Circuit Current (Note 6)
Output Noise,
10Hz to 100KHz, I
L
=100mA
Reference (TS29152/TS29153)
Reference Voltage
Reference Voltage
Adjust Pin Bias Current
Reference Voltage Temperature
Coefficient
Adjust Pin Bias Current Temperature
Coefficient
Flag Output (TS29151/TS29153)
Output Leakage Current
Output Low Voltage
Upper Threshold Voltage
Lower Threshold Voltage
Hysteresis
Enable Input (TS29151 / TS29152)
Input Logic Voltage
Enable Pin Input Current
Regulator Output Current Shutdown
Low (OFF)
High (ON)
V
EN
=26V
V
EN
=0.8V
V
EN
≤
0.8V, V
IN
≤
26V,
V
OUT
=0
--
2.4
--
--
--
--
--
--
--
10
0.8
--
750
5
500
V
uA
uA
V
OH
=26V
V
IN
=4.5V, I
OL
=250uA
(Note 8)
(Note 8)
(Note 8)
--
--
40
--
--
--
--
60
75
15
2
300
--
95
--
uA
mV
mV
mV
mV
10mA
≤
I
L
≤
1.5A,
2.3V
≤
V
IN
≤
26V
0.980|Vo|
0.970|Vo|
--
(Note 7)
--
--
1.24
40
20
0.1
1.020|Vo|
1.030|Vo|
80
--
--
V
nA
ppm/ C
nA/ C
o
o
o
Conditions
10mA
≤
I
L
≤
1.5A,
Vo+1V
≤
V
IN
≤
26V
Min
0.990|Vo|
0.980|Vo|
--
--
--
--
--
--
--
--
--
--
--
--
--
Typ
V
OUT
--
20
0.05
0.2
80
200
350
8
22
2.1
600
400
260
Max
1.010|Vo|
1.020|Vo|
26
100
0.5
1.0
200
--
600
--
--
3.5
--
--
--
Unit
V
V
ppm/ C
%
%
o
mV
mA
A
uVrms
I
L
=750mA
I
L
=1.5A
V
OUT
=0
C
L
=2.2uF
C
L
=10uF
C
L
=33uF
2/11
Version: A07
TS29150/1/2/3
1.5A Ultra Low Dropout Voltage Regulator
with Multi-Function
Thermal Performance
Condition
Thermal Resistance
Junction to Ambient
Package type
TO-220-5L
TO-263-5L
Typ
80
85
Unit
o
C/W
Note 1: Absolute Maximum Rating is limits beyond which damage to the device may occur. For guaranteed
specifications and test conditions see the Electrical Characteristics.
Note 2: Maximum positive supply voltage of 60V must be limited duration (<100mS) and duty cycle (<1%).
Note 3: The maximum allowable power dissipation is a function of the maximum junction temperature, T
J
, the junction
to ambient thermal resistance,
θ,
and the ambient temperature , Ta. Exceeding the maximum allowable
power dissipation will cause excessive die temperature, and the regulator will go into thermal shutdown. The
effective value of
θ
JA
can be reduced by using a heatsink.
Note 4: Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
Note 5: Ground pin current is the regulator quiescent current. The total current drawn from the source is the sum of
the ground pin current and output load current.
Note 6: Output current will decrease with increasing temperature, but it will be not dropped below 1.5A at the
maximum specified temperature.
Note 7: Thermal regulation is defined as the change in output voltage at a time T after a change in power dissipation
is applied, excluding load or line regulation effects. Specification are for a 200mA load pulse at V
IN
=20V(a
4W pulse) for T=10mS
Note 8: Comparator thresholds are expressed in terms of a voltage differential at the adjust terminal below the
nominal reference voltage measured at 6V input. To express these thresholds in terms of output voltage
change, multiply by the error amplifier gain = V
OUT
/V
REF
= (R1+R2) / R2. For example, at a programmed
output voltage of 5V, the error output is guaranteed to go low when the output drops by 95mV x 5V / 1.24V =
384mV. Thresholds remain constant as a percent of V
OUT
as V
OUT
is varied, with the dropout warning
occurring at typically 5% below nominal, 7.7% guaranteed.
Pin Description
Pin Configuration
Enable
Input
Ground
Output
Flag
Adjust
Function Description
Enable (input): TTL/COMS compatible input. Logic high is enable; logic low or open is
shutdown
Unregulated input: +26V maximum supply
Ground: Ground pin and TAB/heatsink are internally connected.
Regulator output
Error Flag (output): Open-collector output. Active low indicates an output fault condition.
Adjustment input: Feedback input. Connect to resistive voltage-divider network.
3/11
Version: A07
TS29150/1/2/3
1.5A Ultra Low Dropout Voltage Regulator
with Multi-Function

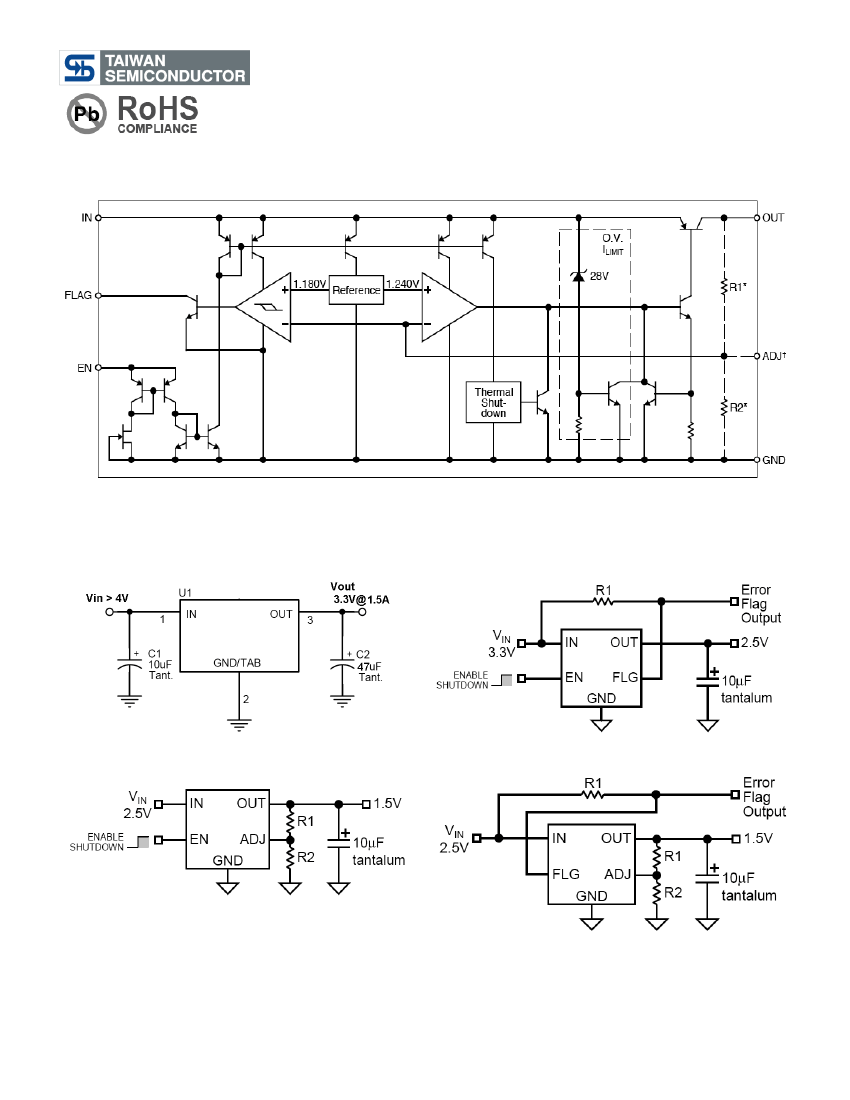

Block Diagram
* Feedback network is fixed output versions only (TS29151)
** Adjustable output version only (TS29152 / TS29153)
Typical Application Circuit
TS29150
TS29151
TS29152
TS29153
4/11
Version: A07
TS29150/1/2/3
1.5A Ultra Low Dropout Voltage Regulator
with Multi-Function
Typical Application Circuit
The TS29150/1/2/3 series are high performance with low dropout voltage regulator suitable for moderate to high
current and voltage regulator application. Its 350mA(typ) dropout voltage at full load and over temperature makes it
especially valuable in battery power systems and as high efficiency noise filters in post regulator applications. Unlike
normal NPN transistor design, where the base to emitter voltage drop and collector to emitter saturation voltage limit
the minimum dropout voltage, dropout performance of the PNP output of these devices is limited only by low V
CE
saturation voltage.
The TS29150/1/2/3 series is fully protected from damage due to fault conditions. Linear current limiting is provided.
Output current during overload conditions is constant. Thermal shutdown the device when the die temperature
exceeds the maximum safe operating temperature. Transient protection allows device survival even when the input
voltage spikes above and below nominal. The output structure of these regulators allows voltages in excess of the
desired output voltage to be applied without reverse current flow.
Capacitor Requirement
The TS29150/1/2/3 series requires an output capacitor to maintain stability and improve transient response is
necessary. The value of this capacitor is dependent upon the output current, lower currents allow smaller capacitors.
TS29150/1/2/3 series regulators are stable with the 10uF minimum capacitor value at full load. Where the regulator
is powered from a source with high AC impedance, a 0.1uF capacitor connected between input and ground is
recommended. The capacitor should have good characteristics to above 250KHz. The capacitance values will be
help to improved transient response, ripple rejection and output noise.
Minimum Load Current
The TS29150/1/2/3 series is specified between finite loads. If the output current is too small leakage currents
dominate and the output voltage rises. A 10mA minimum load current swamps any expected leakage current across
the operating temperature range.
Thermal Characteristics
TS29150/1/2/3 series linear regulators are simple to use, the most complicated design parameters to consider are
thermal characteristics, thermal design requires the following application specification parameters:
* Maximum ambient temperature, Ta
* Output current, I
OUT
* Output voltage, V
OUT
* Input voltage, V
IN
We calculate the power dissipation of the regulator from these numbers and the device parameters from this data
sheet. A heatsink may be required depending on the maximum power dissipation and maximum ambient
temperature of the application. Under all possible operating conditions, the junction temperature must be within the
range specified under absolute maximum ratings. To determine if the heatsink is required, the power dissipated by
the regulator, P
D
must be calculated.
The below formula shows the voltages and currents for calculating the P
D
in the regulator:
I
IN
= I
L
/ I
G
P
D
= (V
IN
- V
OUT
) * I
L
+ (V
IN
) * I
G
Ex. P
D
= (3.3V-2.5V) * 0.5A + 3.3V * 11mA
= 400mW + 36mW
= 436mW
Remark: I
L
is output load current,
I
G
is ground current.
V
IN
is input voltage
V
OUT
is output voltage
5/11
Version: A07
Embedded System
