DMC119XANP-R47M datasheet, PDF

Datasheet> All Categories > Passive components> inductor> DMC119XANP-R47M

DMC119XANP-R47M: DescriptionGeneral Purpose Inductor, 0.47uH, 20%, 1 Element, ROHS COMPLIANT; CategoryPassive components inductor; File Size221KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DMC119XANP-R47M Overview

General Purpose Inductor, 0.47uH, 20%, 1 Element, ROHS COMPLIANT

DMC119XANP-R47M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.001 Ω
Nominal inductance(L)	0.47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DMC119XA/DS
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	20
Maximum rated current	32 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	Q IS MEASURED AT 1000KHZ
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.2 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

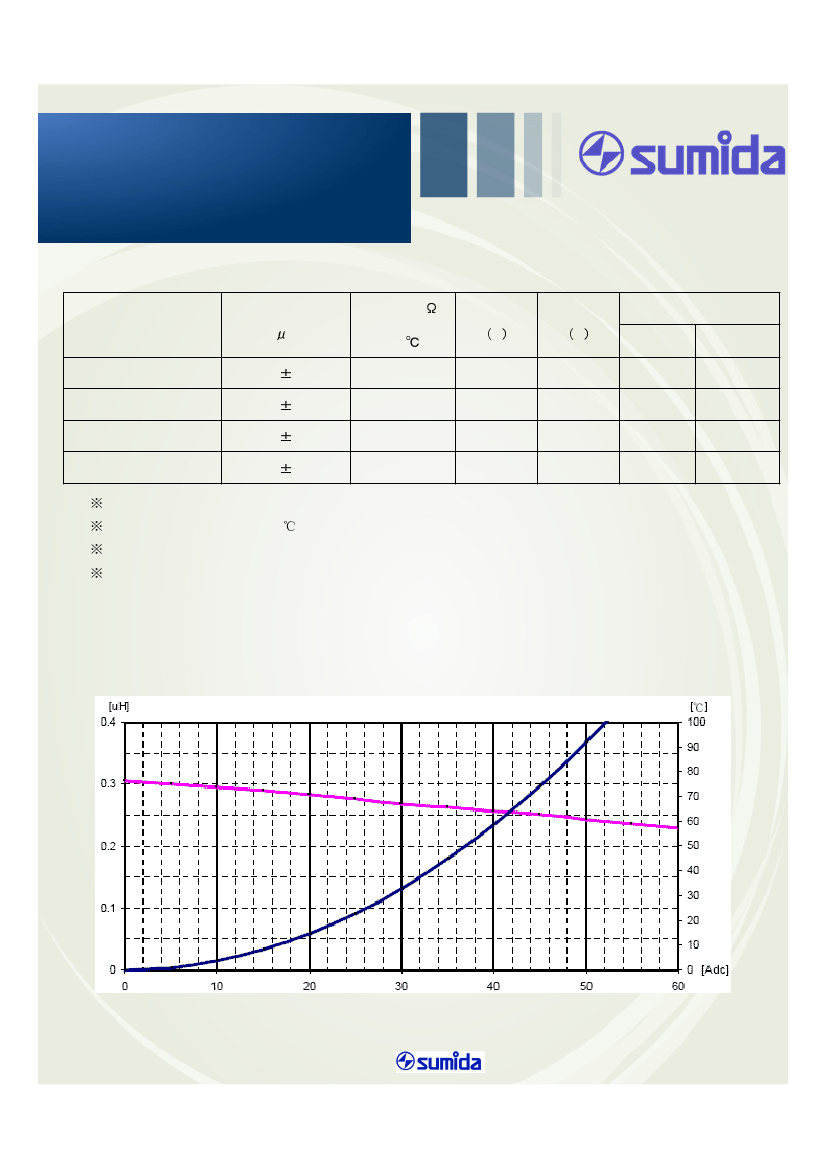

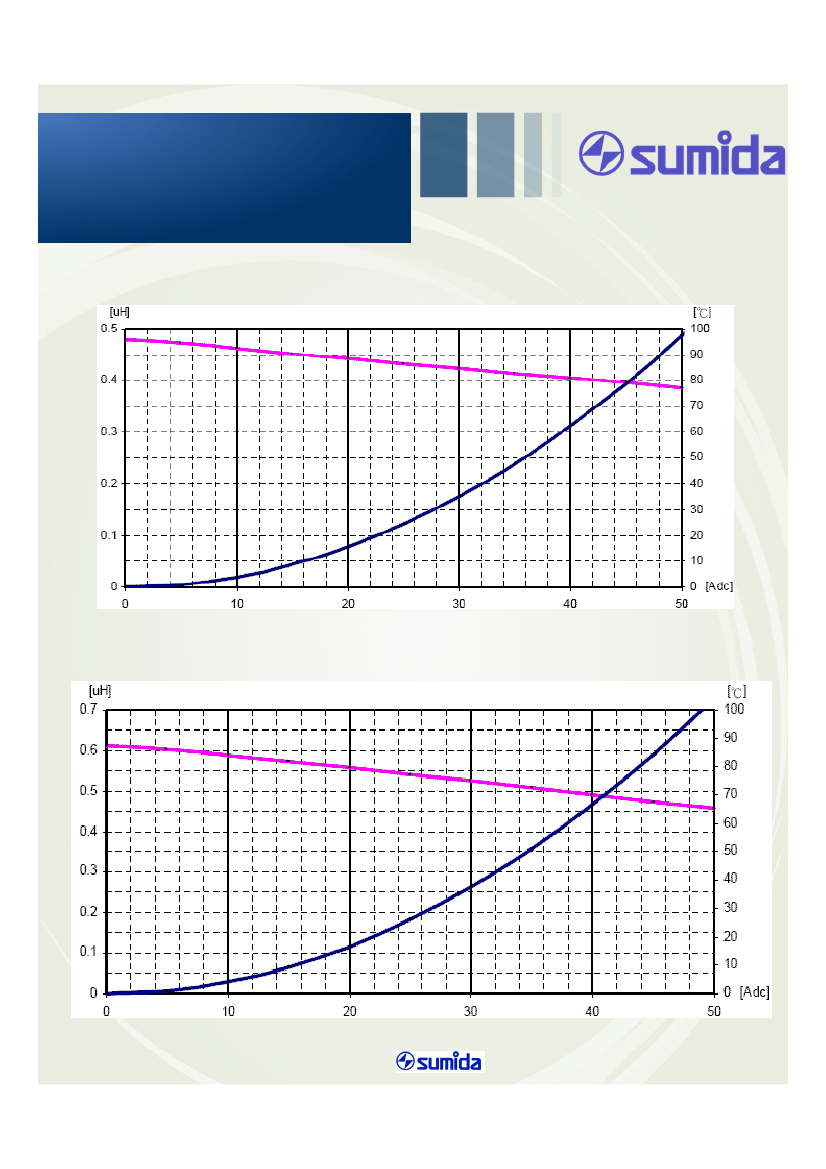

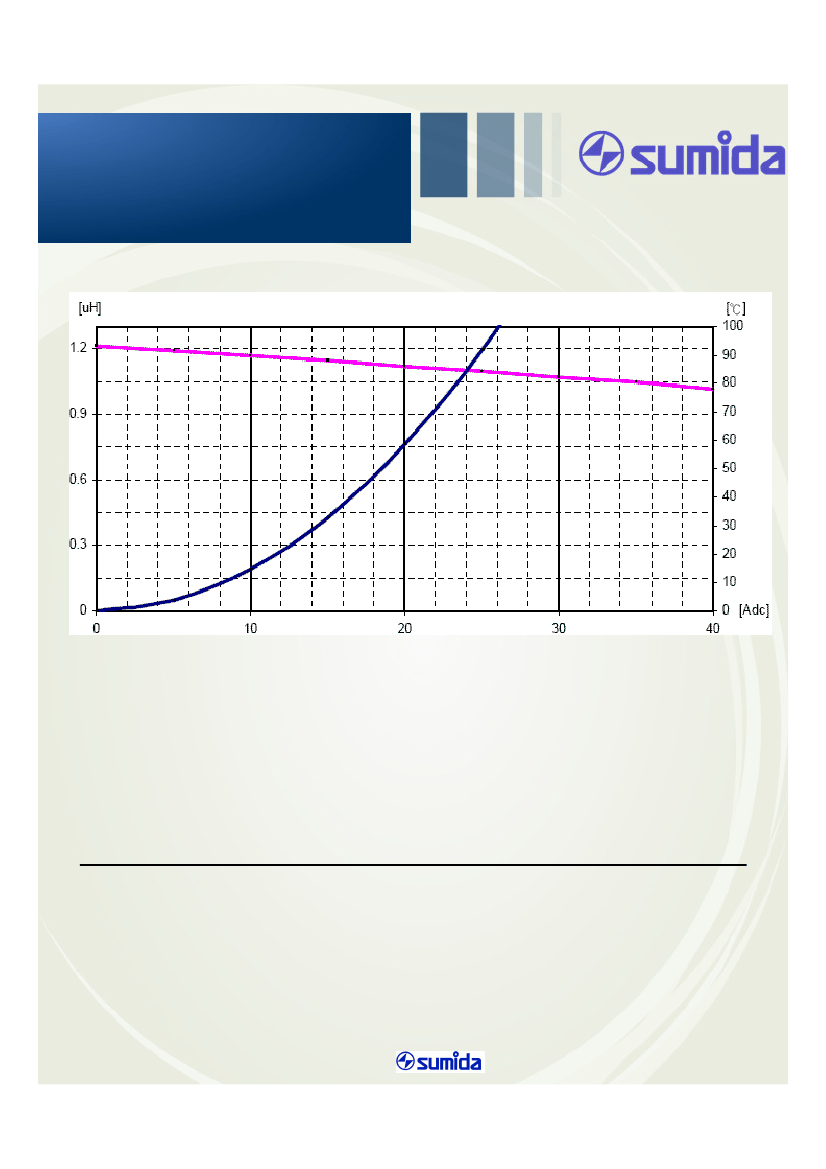

Power Inductor

DMC119XA / DS

■

Features

◎

Size : 12.0 mm Max. square and

11.0 mm Max. height.

◎

Operating temperature range: -25℃~+125℃.

◎

Magnetically shielded.

◎

Super low core loss due to special alloy core used.

◎

Low D.C.R. and excellent saturation current.

◎

RoHS Compliance.

■

Applications

Motherboard

、graphic

car and notebook computers ;

DC/DC converter in distributed power systems or VRM applications.

■

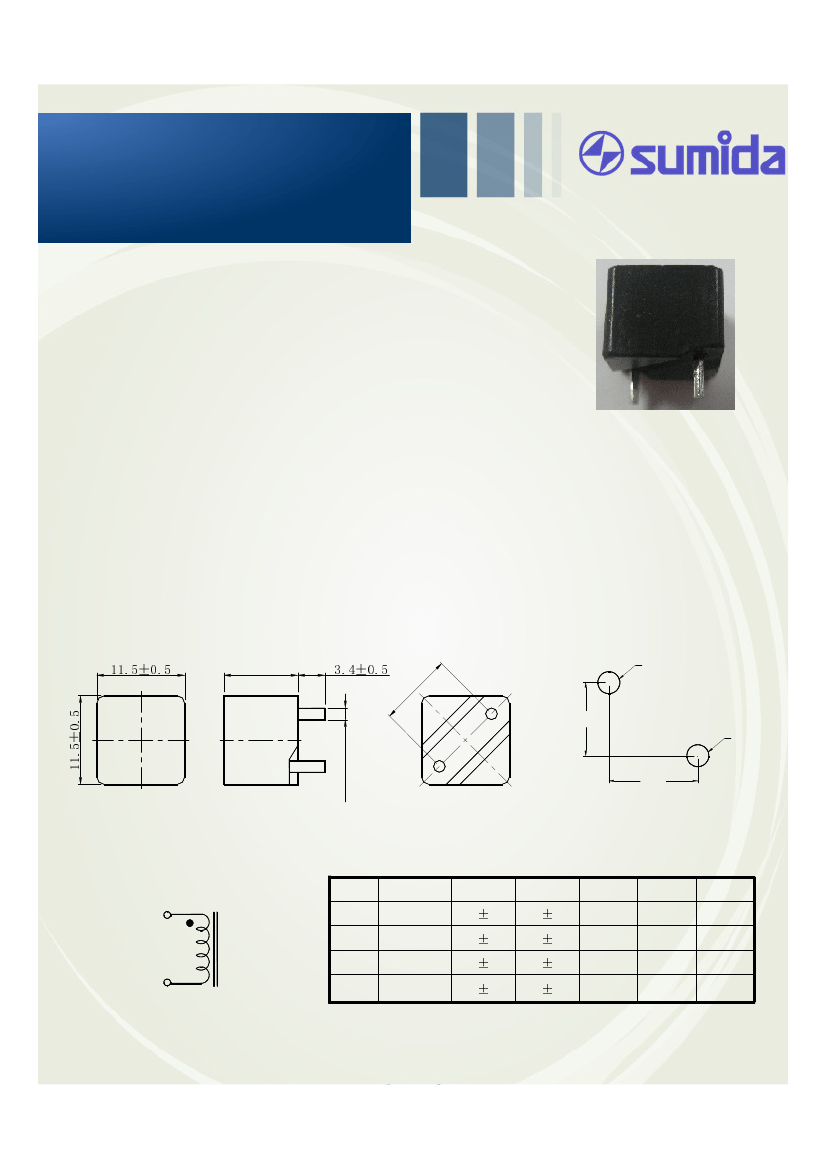

Shapes and Dimensions/Recommended Land Patterns(mm)

◆

Dimensions

5.0±4.3

◆

Land pattern

ØF

ØB

◆

Schematics (Bottom)

Part

6.0

6.6

7.3

6.6

1.8

1.5

R47M 10.0 Max. 1.5 0.2 9.5 0.5

R60M 10.0 Max. 1.5 0.2 9.5 0.5

1R2M 11.0 Max. 1.0 0.2 9.3 0.5

5.0±5.11

R30M 10.0 Max. 1.5 0.2 9.5 0.5

DMC119XANP-R47M Related Products

	DMC119XANP-R47M	DMC119XANP-R60M	DMC119XANP-R30M	DMC119XANP-1R2M
Description	General Purpose Inductor, 0.47uH, 20%, 1 Element, ROHS COMPLIANT	General Purpose Inductor, 0.6uH, 20%, 1 Element, ROHS COMPLIANT	General Purpose Inductor, 0.3uH, 20%, 1 Element, ROHS COMPLIANT	General Purpose Inductor, 1.2uH, 20%, 1 Element, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.001 Ω	0.0013 Ω	0.0008 Ω	0.0036 Ω
Nominal inductance(L)	0.47 µH	0.6 µH	0.3 µH	1.2 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DMC119XA/DS	DMC119XA/DS	DMC119XA/DS	DMC119XA/DS
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Minimum quality factor (at nominal inductance)	20	20	20	20
Maximum rated current	32 A	31 A	33.5 A	16.5 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES
special characteristics	Q IS MEASURED AT 1000KHZ	Q IS MEASURED AT 1000KHZ	Q IS MEASURED AT 1000KHZ	Q IS MEASURED AT 1000KHZ
surface mount	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE
Test frequency	0.2 MHz	0.2 MHz	0.2 MHz	0.2 MHz
Tolerance	20%	20%	20%	20%
Base Number Matches	1	1	1	-
