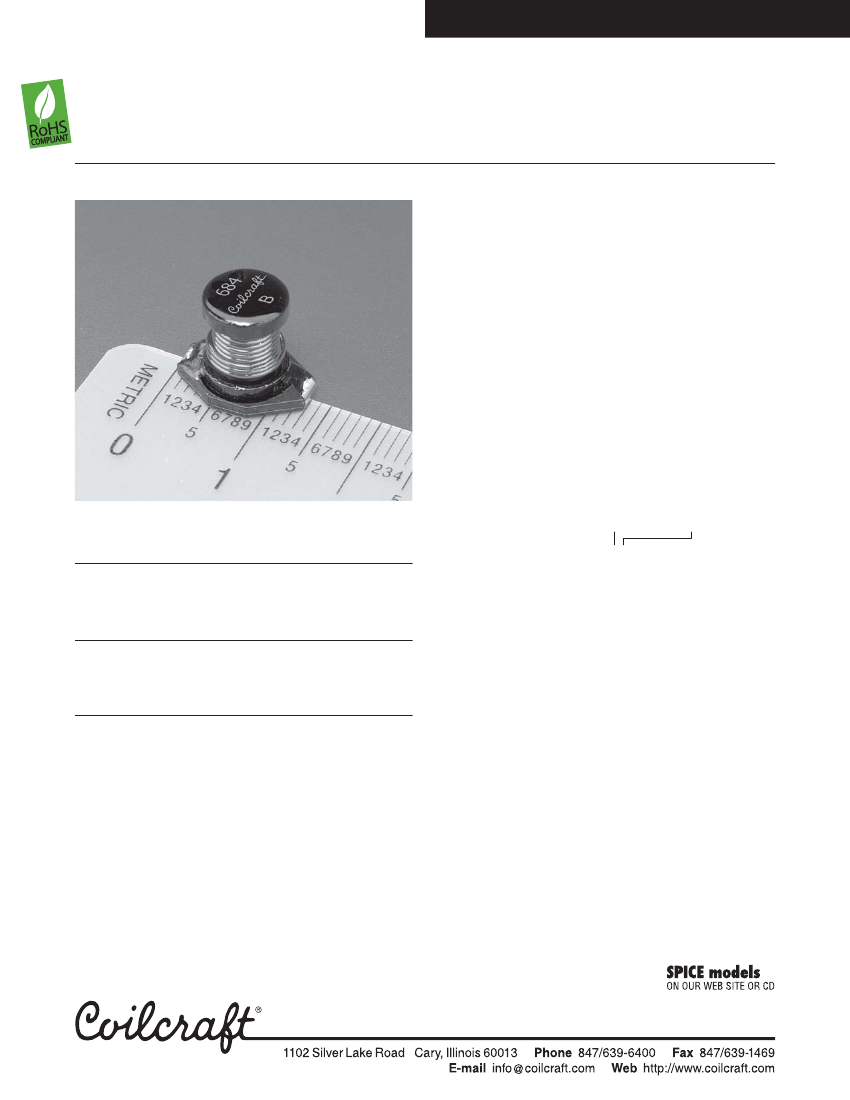

Document 171-1
SMT Power Inductors – DO3340P Series
• Excellent current handling – up to 3.5 Arms with an 8 A
saturation current rating for a 10 µH part.
Designer’s Kit C310
contains 3 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant gold over nickel over phos bronze.
Other terminations available at additional cost.
Weight
1.8 – 2.8 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+105°C with derated current
Storage temperature
Component: –40°C to +105°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Mean Time Between Failures (MTBF)
26,315,789 hours
Packaging
225 per 13″ reel Plastic tape: 24 mm wide,
0.4 mm thick, 24 mm pocket spacing, 11.4 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part
number
1
DO3340P-103ML_
DO3340P-153ML_
DO3340P-223ML_
DO3340P-333ML_
DO3340P-473ML_
DO3340P-683ML_
DO3340P-104ML_
DO3340P-154ML_
DO3340P-224ML_
DO3340P-334ML_
DO3340P-474ML_
DO3340P-684ML_
DO3340P-105ML_
L
DCR
±20%
2
max
(µH)
(Ohms)
10
15
22
33
47
68
100
150
220
330
470
680
1000
0.040
0.050
0.066
0.080
0.110
0.17
0.22
0.34
0.44
0.70
0.95
1.15
2.0
SRF
typ
(MHz)
35
18
13
11
9.0
7.0
5.5
4.5
3.5
3.0
2.5
2.0
1.5
1. When ordering, please specify
termination
and
packaging
codes:
Isat
3
(A)
8.0
7.0
5.5
4.0
3.8
3.0
2.5
2.0
1.6
1.2
1.0
1.0
0.8
Irms
4
(A)
3.5
3.0
2.5
2.0
1.6
1.2
1.2
0.9
0.7
0.6
0.3
0.2
0.1
DO3316P-105MLD
Termination: L
= RoHS compliant gold over nickel over phos bronze.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (225 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP
4263B LCR meter or equivalent.
3. DC current at which inductance drops 10% (typ) from its value without
current.
4. Current that causes a 20°C temperature rise from 25°C ambient
5. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 171-1
Revised 010/14/08
© Coilcraft, Inc. 2009
Document 171-2
SMT Power Inductors – DO3340P Series

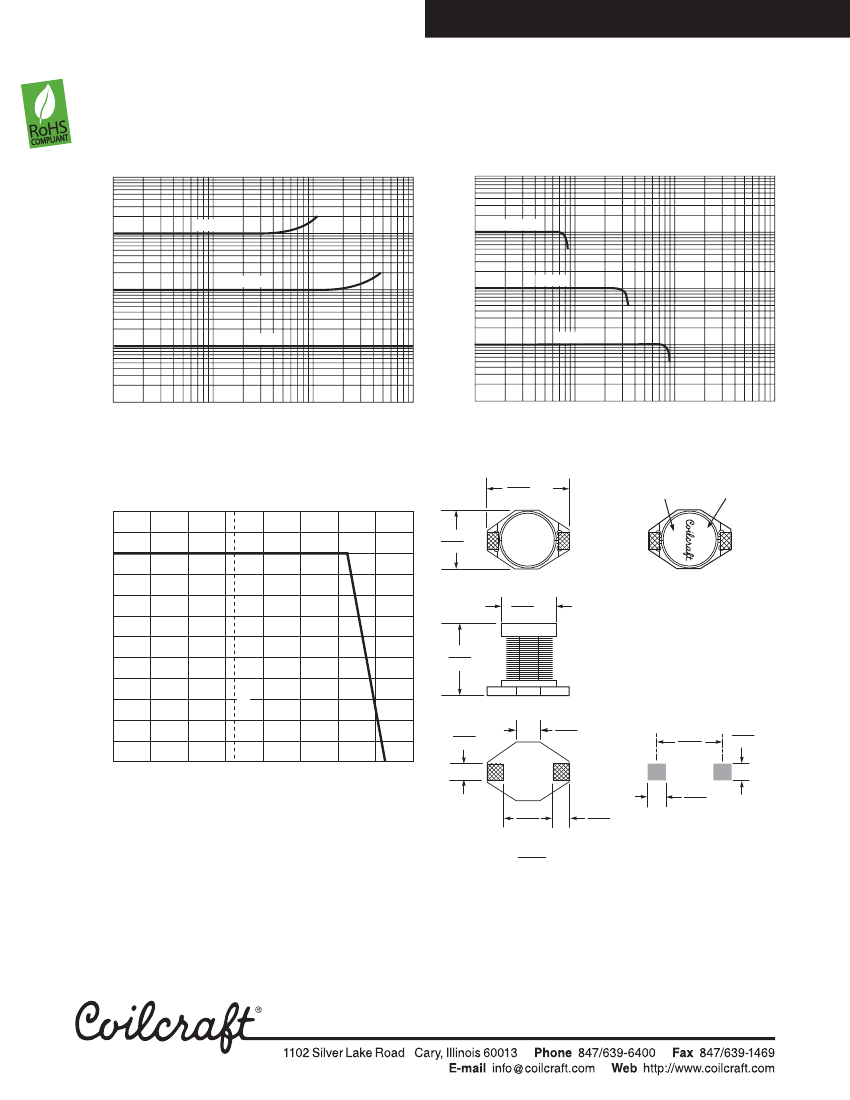

Typical L vs Frequency
10000
Typical L vs Current
10000
1000
1000 µH
1000
1000 µH
Inductance (µH)
Inductance (µH)
100
100 µH
100
100 µH
10
10 µH
10
10 µH
1
0.01
0.1
1
10
1
0.1
1
10
100
Frequency (MHz)
Current (A)
Irms Derating
120
110
100
0.510
max
*
12,95
Internal code
Dash number
XXX
0.370
max
9,40
X
Start
Finish
Percent of rated
I
rms
90
80
70
60
50
40
0.333
typ
8,47
Part marking since Feb. 2005.
Parts manufactured prior to that
date may have color dots. Visit
www.coilcraft.com/colrpowr.cfm for details.
0.450
max
*
11,43
additional 0.02/0,508
*
Allow anand 0.01/0,254 in
in width
height for optional tin-lead and
tin-silver-copper application.
25°C
30
20
10
0
-40
-20
0
20
Recommended
Land Pattern
0.100
2,54
40
60
80
100
120
0.145
3,69
0.405
10,29
0.110
2,79
Ambient temperature (°C)
0.300
7,62
0.100
2,54
0.115
2,92
Dimensions are in
inches
mm
Specifications subject to change without notice.
Please check our website for latest information.
Document 171-2
Revised 10/14/08
© Coilcraft, Inc. 2009
