TECHNICAL DATA
HIGH-VOLTAGE HIGH-CURRENT
DARLINGTON TRANSISTOR ARRAYS
The
KK2003A
are monolithic high-voltage, high-current
Darlington transistor arrays. Each consists of seven n-p-n
Darlington pairs that feature high-voltage outputs with common-
cathode clamp diodes for switching inductive loads. The collector-
current rating of a single Darlington pair is 500 mA. The
Darlington pairs may be paralleled for higher current capability.
Applications include relay drivers, hammer drivers, lamp drivers,
display drivers (LED and gas discharge), line drivers, and logic
buffers.
The
KK2003A
has a 2.7-k
series base resistor for each
Darlington pair for operation directly with TTL or 5-V CMOS
devices.
•
•
•
•
•
500-mA Rated Collector Current (Single Output)
High-Voltage Outputs . . . 50 V
Output Clamp Diodes
Inputs Compatible With Various Types of Logic
Relay Driver Applications
KK2003A
ORDERING INFORMATION
KK2003AN
Plastic
KK2003AD
SOIC
T
A
= -20°C to 85° C for all
packages

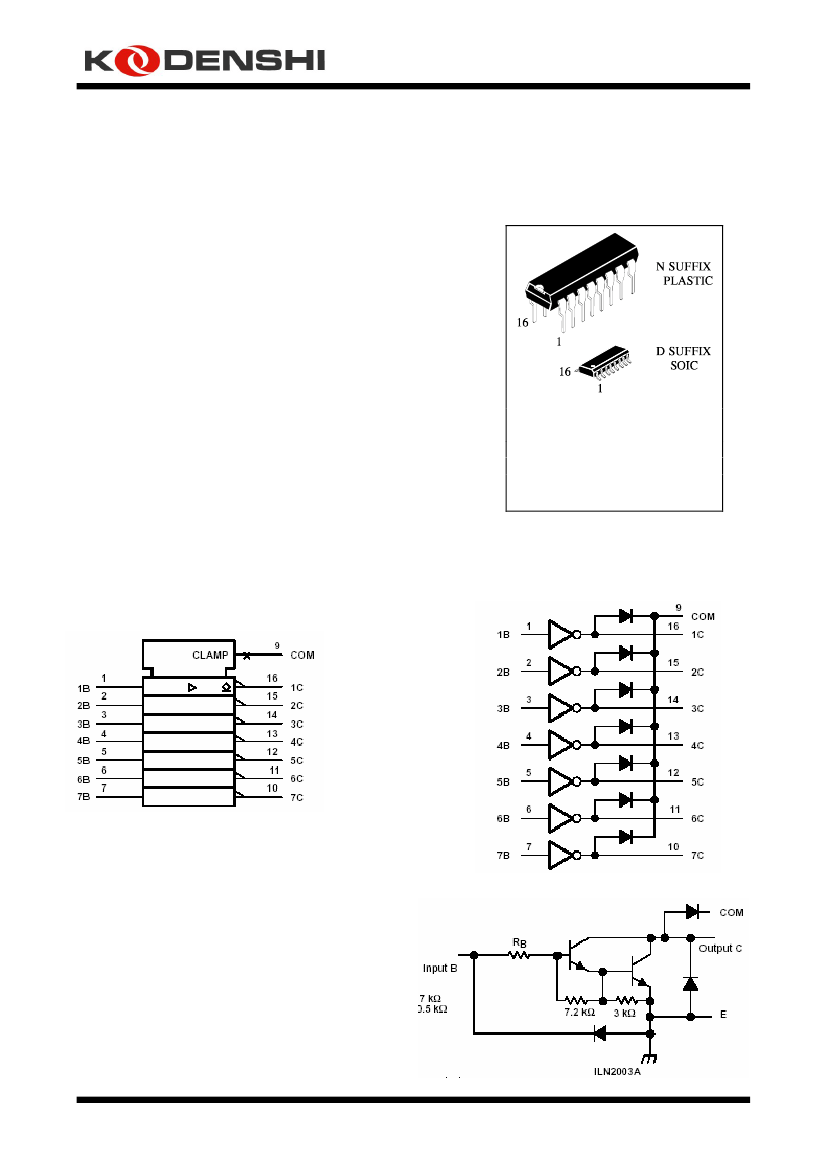

LOGIC SYSBOL
LOGIC DIAGRAM
SCHEMATICS (each Darlington Pair)
All resistor values shown are nominal.
ILN2003A: R
B
= 2.7 kW
1
KK2003A

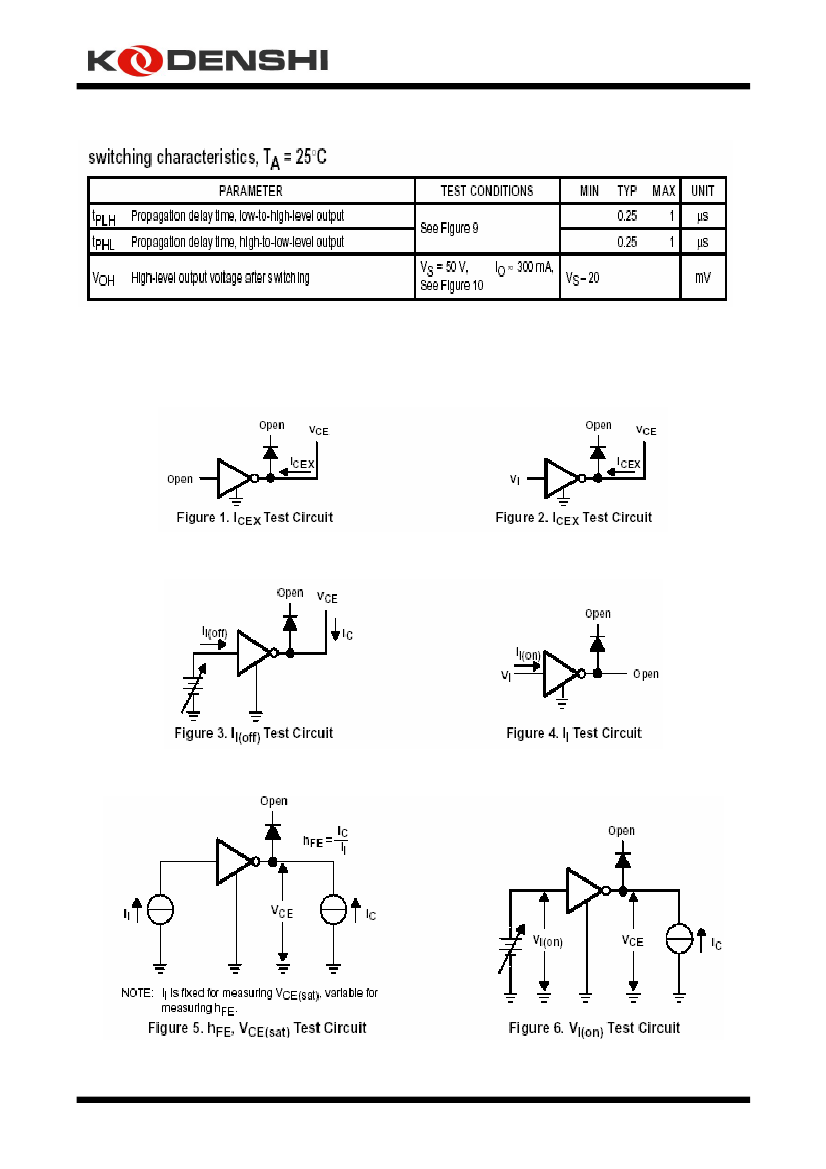

Absolute maximum ratings at 25°C free-air temperature (unless otherwise noted)
Collector-emitter voltage
Input voltage, V
I
(see Note 1)
collector current (see Figures 14 and 15)
Output clamp current, I
OK
Total emitter-terminal current
Continuous total power dissipation
Operating free-air temperature range, T
A
Storage temperature range, Tstg
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds
50 V
30 V Peak
500 mA
500 mA
–2.5 A
See Dissipation Rating Table
–20°C to 85°C
–65°C to 150°C
260°C
NOTE 1: All voltage values are with respect to the emitter/substrate terminal E, unless otherwise noted.

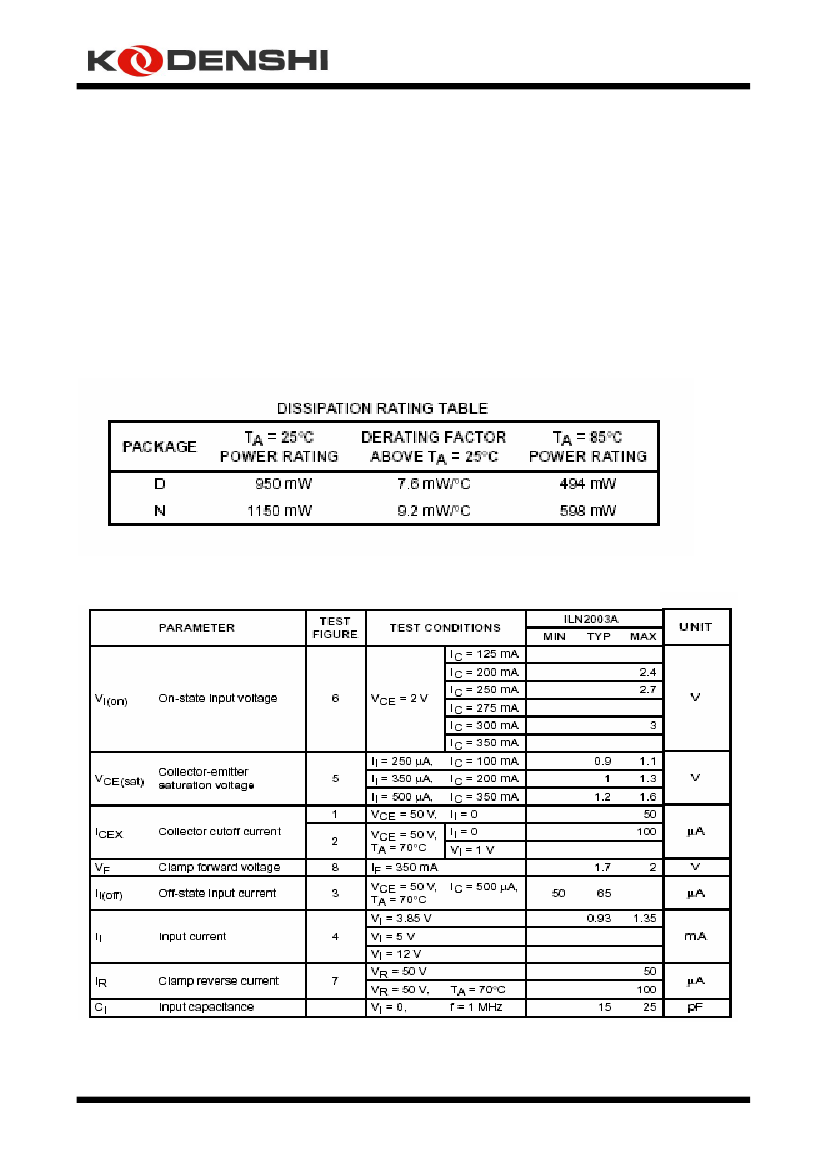

Electrical characteristics, TA = 25°C (unless otherwise noted)
2
KK2003A

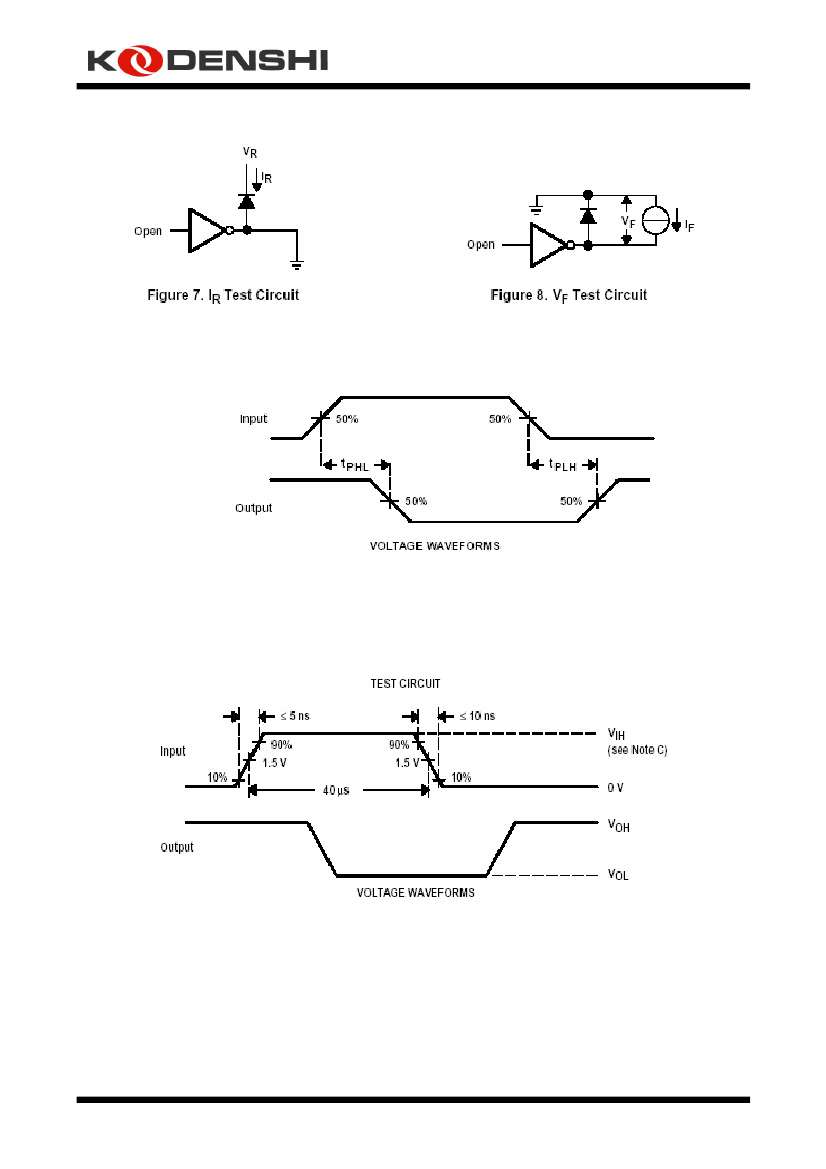

Figure 9. Propagation Delay-Time Waveforms
NOTES: A. The pulse generator has the following characteristics: PRR = 12.5 kHz, Z
O
= 50
.
B. C
L
includes probe and jig capacitance.
C. V
IH
= 3 V;
Figure 10. Latch-Up Test Circuit and Voltage Waveforms

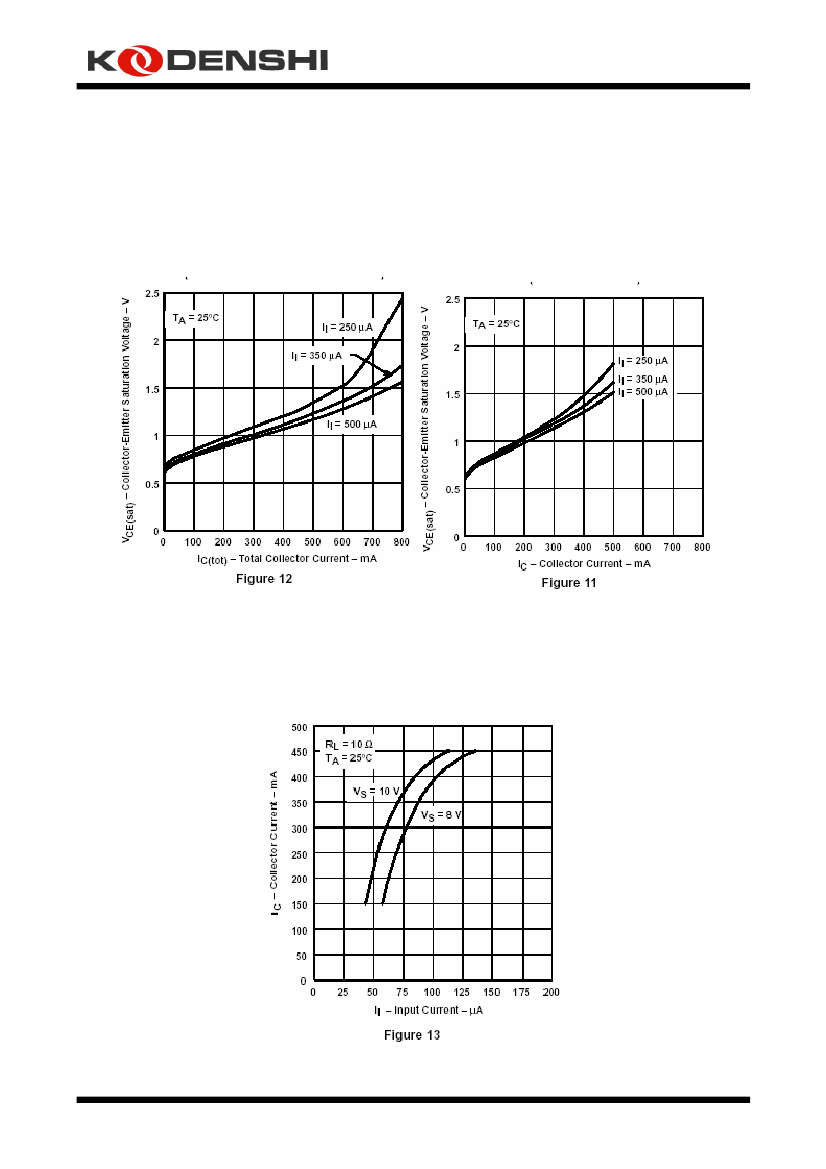

4
