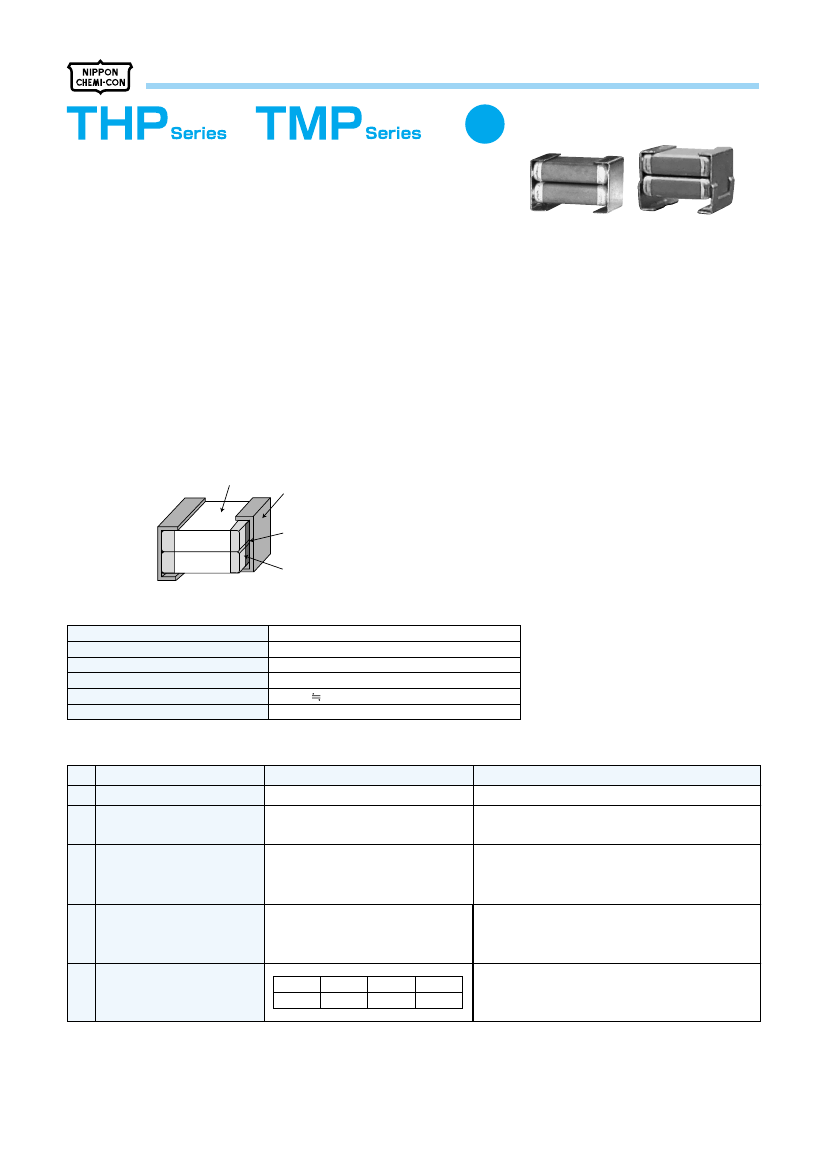

METAL CAP TYPE MULTILAYER CERAMIC CAPACITORS
/
?FEATURES
Compliant
RoHS
(High Reliability)
1. Small size and large capacitance, high ripple current.
2. Excellent temperature cycle durability and most suitable for aluminum substrate.
3. Y5U temperature characteristics.
4. Excellent noise absorption.
5. For reflow soldering use.
6. Suitable for aluminum substrate.
?APPLICATIONS
1. Smoothing circuit of switching mode AC-DC or DC-DC converter.
2. On-board power supply.
3. Noise suppressor for various kinds of equipments.
?CUSTOM
MADE PRODUCTS
We can offer custom made one element metal cap type capacitors for request of customers.
Please contact us if you have questions for details.
?CONSTRUCTION
Chip Ceramic Capacitor
Metal Cap
Soldering
Termination
?RATINGS
1.
2.
3.
4.
5.
6.
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Rated Capacitance Tolerance
Temperature Characteristics
Rated Ripple Current
-55K+125C
25, 50, 100, 200V
dc
0.45 to 100MF
M(P20%), Z(P
80
%)
20
E(JIS) Y5U(EIA)
See No.5 on the following table
?SPECIFICATIONS
No.
1
2
Items
Withstand Voltage
Insulation Resistance
Specification
No abnormality.
1000/C
R
(MO) or 10000(MO) whichever
is less.
Within specified tolerance.
Test Condition
250% of rated voltage shall be applied for 5 seconds.
Rated voltage shall be applied for 60P5 seconds at
temperature 20P2C.
Temperature
Frequency
Voltage
Temperature
Frequency
Voltage
55
3.0
76
4.0
: 20P2C
: 1P0.1kHz (]100MF, 120Hz)
: 1P0.2Vrms
: 20P2C
: 1P0.1kHz (]100MF, 120Hz)
: 1P0.2Vrms
3
Rated Capacitance
4
Dissipation Factor
5.0% maximum
5
Rated Ripple Current
Size
Arms
43
1.5
10kHzK1MHz (sine curve)
Ripple voltage Vp shall be less than
the rated voltage.
(1/4)
CAT. No. E1002P
METAL CAP TYPE MULTILAYER CERAMIC CAPACITORS
/
?SPECIFICATIONS
No.
6
Items
Temperature Cycle
Specification
Appearance : No visible damage.
DC/C
:
P15%
D.F. : To meet the initial specification.
I.R. : To meet the initial specification.
Test Condition
Temperature (C)
Step
Min. Category temperature
P3
1
Room temperature
2
3
Max. Category temperature
P3
4
Room temperature
<Cycle>
THP series : 100 cycles
TMP series : 500 cycles
Temperature : 40P2C
Humidity
: 90 to 95%RH
Voltage
: Rated voltage
Time
: 500P
24
hours
0
Temperature : 85P2C
Voltage
: 200% of rated voltage.
Time
: 1000P
48
hours
0
Temperature : 125P3C
Voltage
: Rated voltage
Time
: 1000P
48
hours
0
(min.)
30P3
3 max.
30P3
3 max.
7
Humidity Load Life
Appearance : No abnormality.
DC/C
:
P20%
D.F. : 7% max.
I.R. : 50/C
R
(MO) or 1000(MO)
whichever is less.
Appearance : No abnormality.
DC/C
:
P20%
D.F. : 7% max.
I.R. : 100/C
R
(MO) or 1000(MO)
whichever is less.
8
Endurance
*C
R
: Rated Capacitance(MF)
?Note
of mountig for THP series.
1. The face of wider gap between a capacitor and a substrate shall be the mounting face.
2. To prevent degredation of temperature cycling capability, if need to be careful about amount of solder that would not go into
the inner side of terminations.
Substrate
Gap
?Note:
Single capacitor with metal cap is available upon request.
Please consult us for details.
(2/4)
CAT. No. E1002P
METAL CAP TYPE MULTILAYER CERAMIC CAPACITORS
?STANDARD
RATINGS
Rated voltage Rated Capacitance
(V
dc
)
(mF)
15
20
33
47
68
100
4.5
6.8
10
15
22
33
47
1.5
2.0
3.0
4.7
6.8
10
15
0.45
0.68
1.0
1.5
2.2
3.3
4.7
Dimensions(mm)
L
4.8P0.4
6.0P0.4
7.8P0.5
4.8P0.4
6.0P0.4
7.8P0.5
4.8P0.4
W
3.5P0.3
5.0P0.4
6.6P0.5
3.5P0.3
5.0P0.4
6.6P0.5
3.5P0.3
Tmax.
5.5
4.5
5.6
6.5
5.5
4.5
5.6
6.5
5.5
4.5
5.6
6.5
5.5
4.5
5.6
6.5
1.5P0.3
1.3P0.3
4.0
1.5
a
1.3P0.3
1.3P0.3
1.5P0.3
1.3P0.3
1.3P0.3
Maximum ripple current
(Arms)
1.5
3.0
4.0
1.5
3.0
Part Number
KHP250E156M435AT00
KHP250E206M435AT00
KHP250E336M555AT00
KHP250E476M555AT00
KHP250E686M555AT00
KHP250E107M765BT00
KHP500E455M435AT00
KHP500E685M435AT00
KHP500E106M555AT00
KHP500E156M555AT00
KHP500E226M555AT00
KHP500E336M765BT00
KHP500E476M765BT00
KHP101E155M435AT00
KHP101E205M435AT00
KHP101E305M435AT00
KHP101E475M555AT00
KHP101E685M555AT00
KHP101E106M555AT00
KHP101E156M765BT00
KHP201E454M435AT00
KHP201E684M435AT00
KHP201E105M435AT00
KHP201E155M555AT00
KHP201E225M555AT00
KHP201E335M765BT00
KHP201E475M765BT00
Previous Part Number
(Just for your reference)
25
50
100
6.0P0.4
7.8P0.5
4.8P0.4
6.0P0.4
7.8P0.5
5.0P0.4
6.6P0.5
3.5P0.3
5.0P0.4
6.6P0.5
1.3P0.3
1.5P0.3
1.3P0.3
1.3P0.3
1.5P0.3
3.0
4.0
1.5
3.0
4.0
200
THP50E1E156MT502
THP50E1E206MT502
THP60E1E336MT502
THP60E1E476MT502
THP60E1E686MT502
THP70E1E107MT502
THP50E1H455MT502
THP50E1H685MT502
THP60E1H106MT502
THP60E1H156MT502
THP60E1H226MT502
THP70E1H336MT502
THP70E1H476MT502
THP50E2A155MT502
THP50E2A205MT502
THP50E2A305MT502
THP60E2A475MT502
THP60E2A685MT502
THP60E2A106MT502
THP70E2A156MT502
THP50E2D454MT502
THP50E2D684MT502
THP50E2D105MT502
THP60E2D155MT502
THP60E2D225MT502
THP70E2D335MT502
THP70E2D475MT502
?PART
NUMBERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
?DIMENSIONS
43, 55 size
T
T
K HP 2 5 0 E 4 7 6 M 5 5 5A T 0 0
Supplement code
Taping code
Terminal code
Size code
Capacitance tolerance code
Nominal Capacitance code
Temperature characteristics code
Rated voltage code
Series code
Category
76 size
L
L
W
(3/4)
W
a
a
CAT. No. E1002P
METAL CAP TYPE MULTILAYER CERAMIC CAPACITORS
?STANDARD
RATINGS
Rated voltage Rated Capacitance
(V
dc
)
(mF)
33
47
68
100
10
15
22
33
47
4.7
6.8
10
15
1.5
2.2
3.3
4.7
Dimensions(mm)
L
6.4P0.4
8.2P0.5
6.4P0.4
8.2P0.5
6.4P0.4
8.2P0.5
6.4P0.4
8.2P0.5
W
5.0P0.4
6.6P0.5
5.0P0.4
6.6P0.5
5.0P0.4
6.6P0.5
5.0P0.4
6.6P0.5
Tmax.
5.0
6.5
5.0
6.5
5.0
6.5
5.0
6.5
a
1.3P0.3
1.5P0.3
1.3P0.3
1.5P0.3
1.3P0.3
1.5P0.3
1.3P0.3
1.5P0.3
Maximum ripple current
(Arms)
3.0
4.0
3.0
4.0
3.0
4.0
3.0
4.0
Part Number
KMP250E336M555ET00
KMP250E476M555ET00
KMP250E686M765ET00
KMP250E107M765ET00
KMP500E106M555ET00
KMP500E156M555ET00
KMP500E226M555ET00
KMP500E336M765ET00
KMP500E476M765ET00
KMP101E475M555ET00
KMP101E685M555ET00
KMP101E106M765ET00
KMP101E156M765ET00
KMP201E155M555ET00
KMP201E225M555ET00
KMP201E335M765ET00
KMP201E475M765ET00
Previous Part Number
(Just for your reference)
25
50
100
200
TMP60E1E336MT502
TMP60E1E476MT502
TMP70E1E686MT502
TMP70E1E107MT502
TMP60E1H106MT502
TMP60E1H156MT502
TMP60E1H226MT502
TMP70E1H336MT502
TMP70E1H476MT502
TMP60E2A475MT502
TMP60E2A685MT502
TMP70E2A106MT502
TMP70E2A156MT502
TMP60E2D155MT502
TMP60E2D225MT502
TMP70E2D335MT502
TMP70E2D475MT502
?PART
NUMBERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
?DIMENSIONS
Spring mechanism
T
K MP 2 5 0 E 4 7 6 M 5 5 5 E T 0 0
Supplement code
Taping code
Terminal code
Size code
Capacitance tolerance code
Nominal Capacitance code
Temperature characteristics code
Rated voltage code
Series code
Category
L
(4/4)
W
a
CAT. No. E1002P
