MN18P83217 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MN18P83217

MN18P83217: DescriptionMicrocontroller, 8-Bit, OTPROM, CMOS, PQFP80, 14 X 14 MM, PLASTIC, QFH-80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size69KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

MN18P83217 Overview

Microcontroller, 8-Bit, OTPROM, CMOS, PQFP80, 14 X 14 MM, PLASTIC, QFH-80

MN18P83217 Parametric

Parameter Name	Attribute value
Maker	Panasonic
Parts packaging code	QFP
package instruction	LQFP,
Contacts	80
Reach Compliance Code	unknown
Has ADC	YES
Other features	928 BYTES RAM
Address bus width
bit size	8
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G80
length	14 mm
Number of I/O lines	67
Number of terminals	80
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	3.2 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3.5 V
surface mount	YES
technology	CMOS
Terminal form	GULLWING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

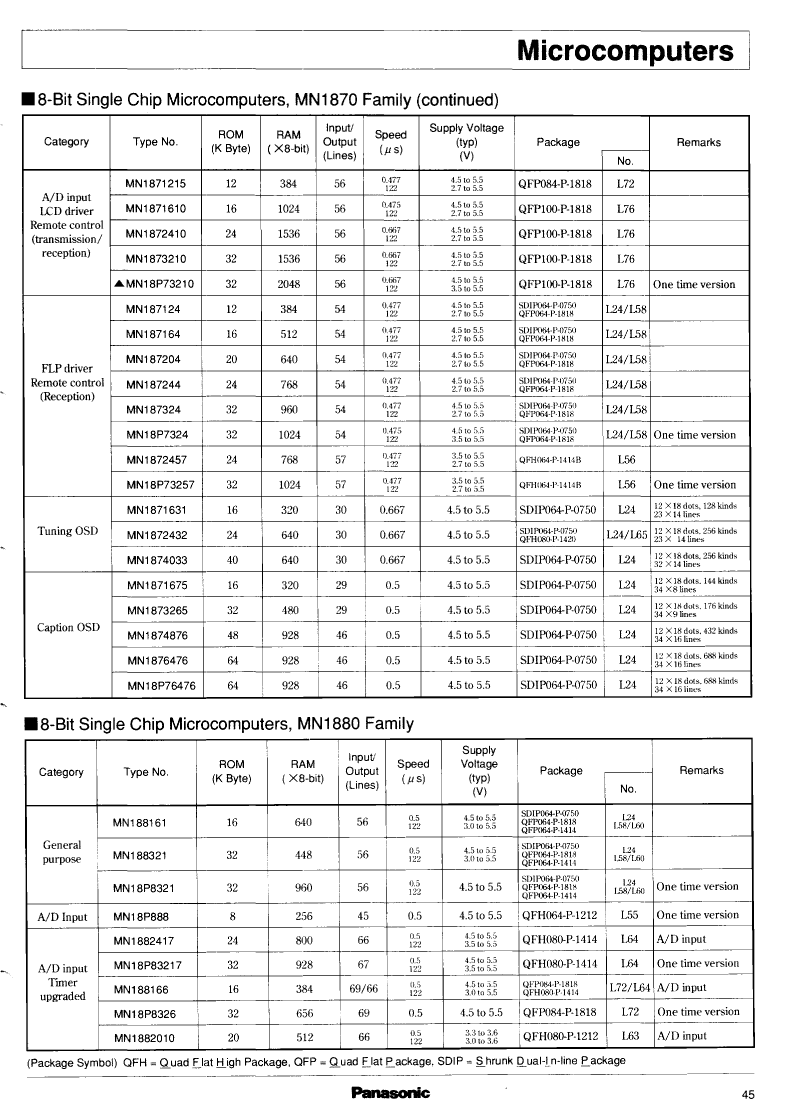

Preview

Download Datasheet

View All

MN18P83217 Related Products

	MN18P83217	MN1873210	MN18P73210	MN1871631	MN1872457	MN1871610	MN1872410	MN1882417	MN18P73257
Description	Microcontroller, 8-Bit, OTPROM, CMOS, PQFP80, 14 X 14 MM, PLASTIC, QFH-80	Microcontroller, 8-Bit, MROM, CMOS, PQFP100, 18 X 18 MM, PLASTIC, QFP-100	Microcontroller, 8-Bit, OTPROM, CMOS, PQFP100, 18 X 18 MM, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, CMOS, PDIP64, 0.750 INCH, PLASTIC, SDIP-64	Microcontroller, 8-Bit, MROM, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFH-64	Microcontroller, 8-Bit, MROM, CMOS, PQFP100, 18 X 18 MM, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, CMOS, PQFP100, 18 X 18 MM, PLASTIC, QFP-100	Microcontroller, 8-Bit, MROM, CMOS, PQFP80, 14 X 14 MM, PLASTIC, QFH-80	Microcontroller, 8-Bit, OTPROM, CMOS, PQFP64, 14 X 14 MM, PLASTIC, QFH-64
Parts packaging code	QFP	QFP	QFP	DIP	QFP	QFP	QFP	QFP	QFP
package instruction	LQFP,	QFP,	LQFP,	SDIP,	14 X 14 MM, PLASTIC, QFH-64	18 X 18 MM, PLASTIC, QFP-100	18 X 18 MM, PLASTIC, QFP-100	14 X 14 MM, PLASTIC, QFH-80	14 X 14 MM, PLASTIC, QFH-64
Contacts	80	100	100	64	64	100	100	80	64
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	NO	NO	YES	YES	YES	NO
Other features	928 BYTES RAM	1.5K BYTES RAM	2K BYTES RAM	320 BYTES RAM	768 BYTES RAM	1K BYTES RAM	1.5K BYTES RAM	800 BYTES RAM	1K BYTES RAM
bit size	8	8	8	8	8	8	8	8	8
JESD-30 code	S-PQFP-G80	S-PQFP-G100	S-PQFP-G100	R-PDIP-T64	S-PQFP-G64	S-PQFP-G100	S-PQFP-G100	S-PQFP-G80	S-PQFP-G64
length	14 mm	18 mm	18 mm	58.4 mm	14 mm	18 mm	18 mm	14 mm	14 mm
Number of I/O lines	67	56	56	30	57	56	56	66	57
Number of terminals	80	100	100	64	64	100	100	80	64
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	QFP	LQFP	SDIP	LQFP	LQFP	LQFP	LQFP	LQFP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK, LOW PROFILE	IN-LINE, SHRINK PITCH	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	MROM	OTPROM	MROM	MROM	MROM	MROM	MROM	OTPROM
Maximum seat height	3.2 mm	2.9 mm	2.9 mm	5.2 mm	3.05 mm	2.9 mm	2.9 mm	3.2 mm	3.05 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3.5 V	2.7 V	3.5 V	4.5 V	2.7 V	2.7 V	2.7 V	3.5 V	2.7 V
surface mount	YES	YES	YES	NO	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULLWING	GULL WING	GULLWING	THROUGH-HOLE	GULLWING	GULLWING	GULLWING	GULLWING	GULLWING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	1.778 mm	0.8 mm	0.65 mm	0.65 mm	0.65 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	18 mm	18 mm	19.05 mm	14 mm	18 mm	18 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Panasonic	-	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
DAC channel	NO	-	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	-	NO	NO	NO	NO	NO	NO	NO
PWM channel	NO	-	NO	NO	NO	NO	NO	NO	NO
