103-009-024T Overview

Aracon㈢ Tubular Fiber Braid (Grey)

Preview

Download Datasheet

View All

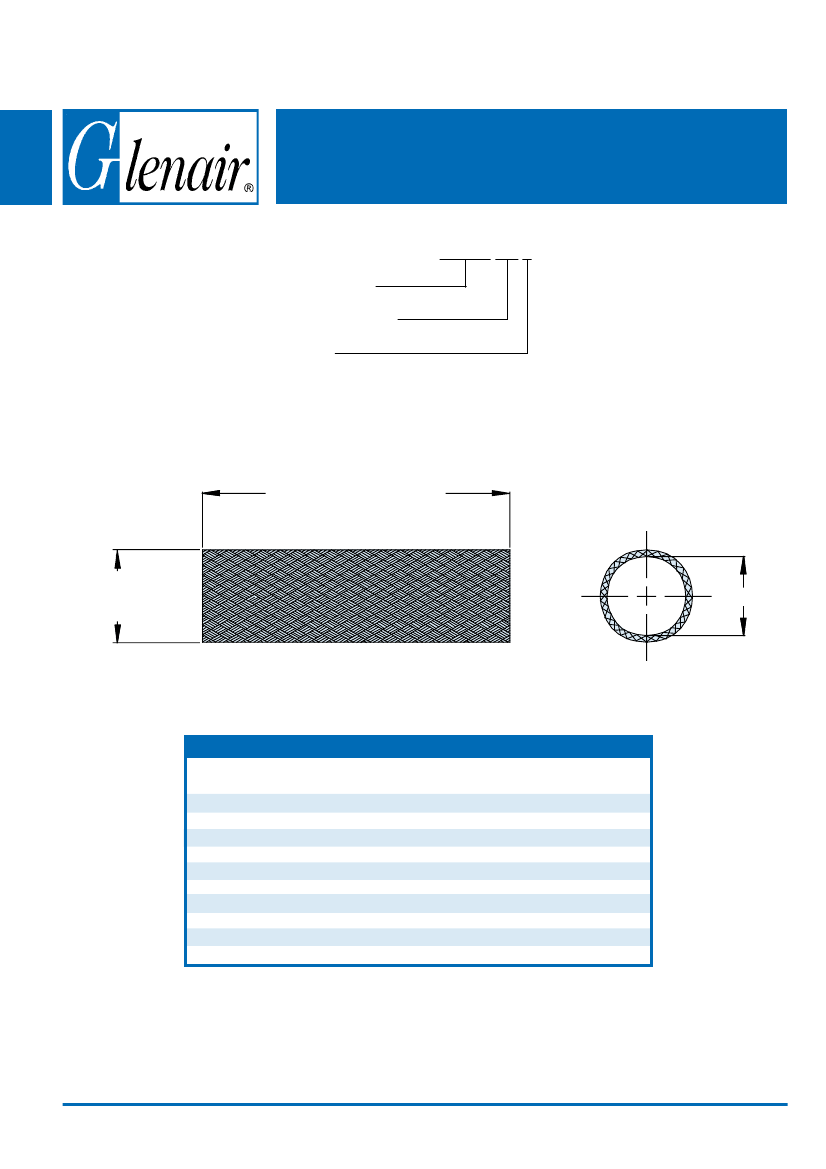

for Series 72 & 74 Tubing and Series 75 Conduit

103-009

Aracon

Tubular Fiber Braid (Grey)

®

Braiding

103-009-008

S

Product Series

Dash No. (Table I)

Coating

S = Silver

T = Tin Coated

Omit for Nickel Coating

Minimum Order Length

is 50 Feet (15.24M)

Wire Bundle

Accomodation

Range (Ref)

I.D.

TABLE I

Nominal

Dash

I.D. (Ref)

No.

.062 (1.6)

002

.125 (3.2)

004

.250 (6.4)

008

.375 (9.5)

012

.500 (12.7)

016

.625 (15.9)

020

.750 (19.1)

024

032 1.000 (25.4)

040 1.250 (31.8)

048 1.500 (38.1)

Wire Bundle

Accomodation Range Ref.

.080 (2.0) / .048 (1.2)

.150 (3.8) / .090 (2.3)

.280 (7.1) / .125 (3.2)

.420 (10.7) / .187 (4.7)

.540 (13.7) / .250 (6.4)

.640 (16.3) / .437 (11.1)

.780 (19.8) / .500 (12.7)

1.050 (26.7) / .875 (22.2)

1.300 (33.0) / 1.000 (25.4)

1.575 (40.0) / 1.375 (34.9)

Approx. Lbs.

100 Ft.

.10

.23

.44

.57

.71

.90

1.10

1.90

2.10

2.42

Metric dimensions (mm) are indicated in parentheses.

Aracon is a registered trademark of DuPont Corporation.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

H-32
