ITH 08 A and ITH 08 R
90° Plug Connector with Accessory Backshell
and a Selection of Cable Clamps
ITH
Rigid Insert
Connectors
ITH G 08 A 28-21 P Y XXX
ITH = Plastic Insert and Standard
Contacts (See Notes #4, 6)
Grounding Fingers
(Omit for Standard)
08 = 90° Angle Plug
Environmental Class
A = Non-Environmental
R = Environmental
L1
Mod Code Option (See Table II)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Page 6)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Page 7)
D1
L2
F
Order Cable Clamps and
Sleeves Separately or Use
Mod Codes (Table II) to Add
Clamp to This Assembly.
IT 3057 C
Cable Clamp
IT 3420
Neoprene Sleeve
IT 3057 A
Cable Clamp
Application Notes:
1. 90° plug connector with backshell for cable clamps or BR backshells.
2. Environmental class A (non-environmental) not supplied with grommet; Class R (environmental) supplied with
grommet.
3. Standard shell materials configuration consists of aluminum alloy with cadmium free conductive plating and
black passivation.
4. Standard contact material consists of copper alloy with gold plating.
5. A broad range of other front and rear connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is Low fire hazard plastic
UL94V0, IAW Article 3, NFF16-102, 356833.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
28
and a Selection of Cable Clamps

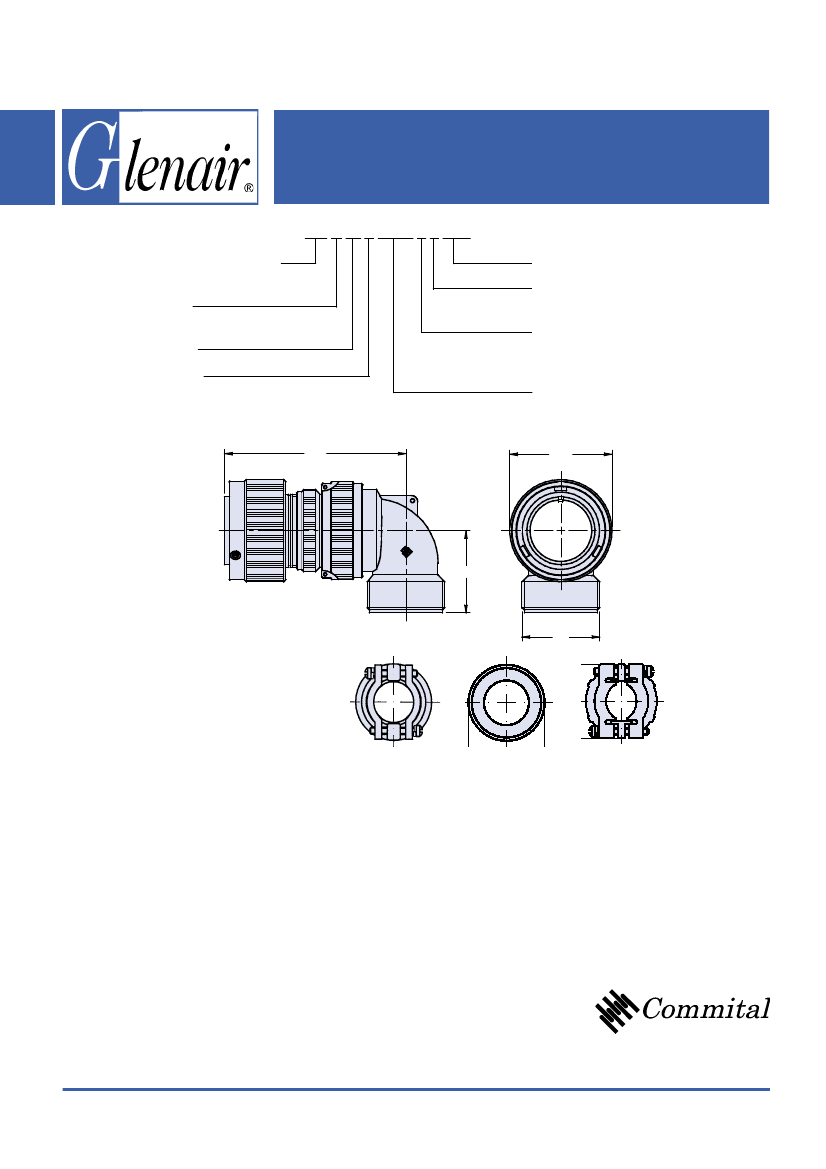

TABLE I: DIMENSIONS
Shell size
18
20
22
24
28
32
36
40
D1
±0.2
36.2
39.8
43.0
46.4
53.0
60.0
66.2
72.3
1.0000 - 20UNEF
1.1875 - 18UNEF
1.1875 - 18UNEF
1.4375 - 18UNEF
1.4375 - 18UNEF
1.7500 - 18UNS
2.0000 - 18UNS
2.2500 - 16UN
F thread
L1
Max.
70.0
75.0
75.0
80.0
80.0
85.0
90.0
95.0
L2
±0.2
30.0
32.0
32.0
37.0
38.0
45.5
47.2
52.0
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
Connector less contacts
Omit for standard version (Gold Plated
Copper Alloy Contacts Supplied)
FINISH OPTIONS
Sym Description
F2
F6
F8
Bright Nickel Plating
Black Electrodeposited Paint
Olive Drab Zn-Co Plating
Omit for standard version
(Cad free / black passivation Finish)
N0
N1
N5
N12
ACCESSORY OPTIONS
Connector less backshell
Connector with IT 3057 A cable clamp
Connector with IT 3057 C cable clamp
Connector with IT 3057 A cable clamp
and IT 3420 neoprene sleeve
Omit for standard version
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
29
