Crystal Clock Oscillators (XO’s)
XO-500 (J-Type)
PECL Output

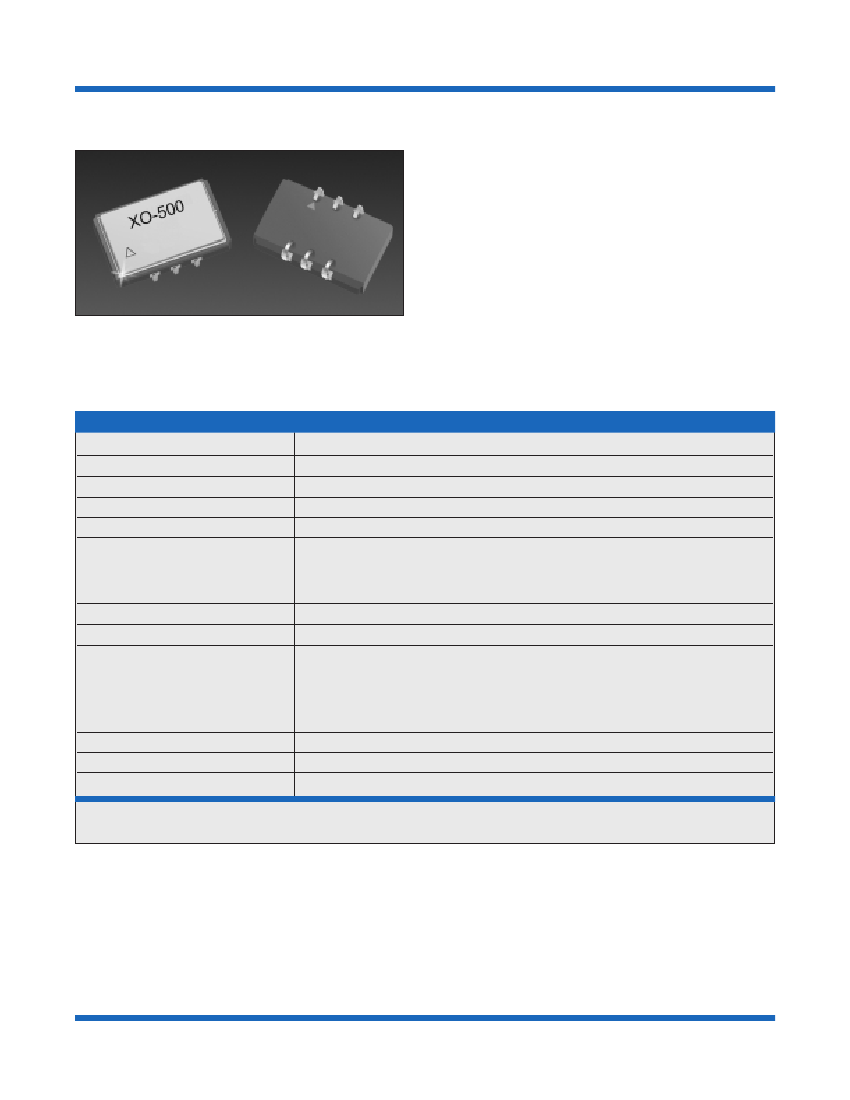

Description:
Low jitter capable, PECL output XO in a 14 mm x
9 mm SMD package.
Features
• Output Frequencies from 15 MHz to 200 MHz
• +3.3 or +5 volt options
• Small 14 mm x 9 mm J-type Package
• Complementary PECL Output
• Low phase noise and custom options
• 0/70°C or -40/85°C operating temperature
• Enable/Disable
Electrical Performance
Parameter
Frequency:
Package Size:
Supply Voltage
1
:
Supply Current:
Output Type:
Output Level:
Characteristics
15 MHz to 200 MHz
13.97 x 8.89 x 4.49mm (0.55” x 0.35” x 0.177”)
3.3 Vdc ±5%, 5 Vdc ±5%
<65 mA
Complementary PECL
0/70°C V
OH
V
CC
-1.025 min.., V
CC
-0.880 max.
0/70°C V
OL
V
CC
-1.810 min.., V
CC
-1.620 max.
-40/85°C V
OH
V
CC
-1.085 min.., V
CC
-0.880 max.
-40/85°C V
OL
V
CC
-1.830 min.., V
CC
-1.555 max.
<1 ns (20% to 80%)
50/50 ±5%
C-205
= ±20 ppm
over
0°C to +70°C
C-325
= ±32 ppm
over
0°C to +70°C
C-505
= ±50 ppm
over
0°C to +70°C
F-505
= ±50 ppm
over
-40°C to +85°C
F-104
= ±100 ppm
over
-40°C to +85°C
<20 ppm for 10 years
0.5 ps rms typical, <1ps rms @ 155.52 MHz
-55°C to +125°C
Rise/Fall Time tr/tf
*2
:
Symmetry (Duty Cycle):
Temperature Stability:
Aging:
Jitter (12 kHz - 20 MHz bw):
Storage Temperature:
1. Power supply bypass is required and a 0.1uF in parallel with a 0.01uF high frequency capacitor is recommended.
2. Transition times are measured from 20% to 80% of a full 10K ECL level swing.
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Web: www.vectron.com
72
Crystal Clock Oscillators (XO’s)
XO-500

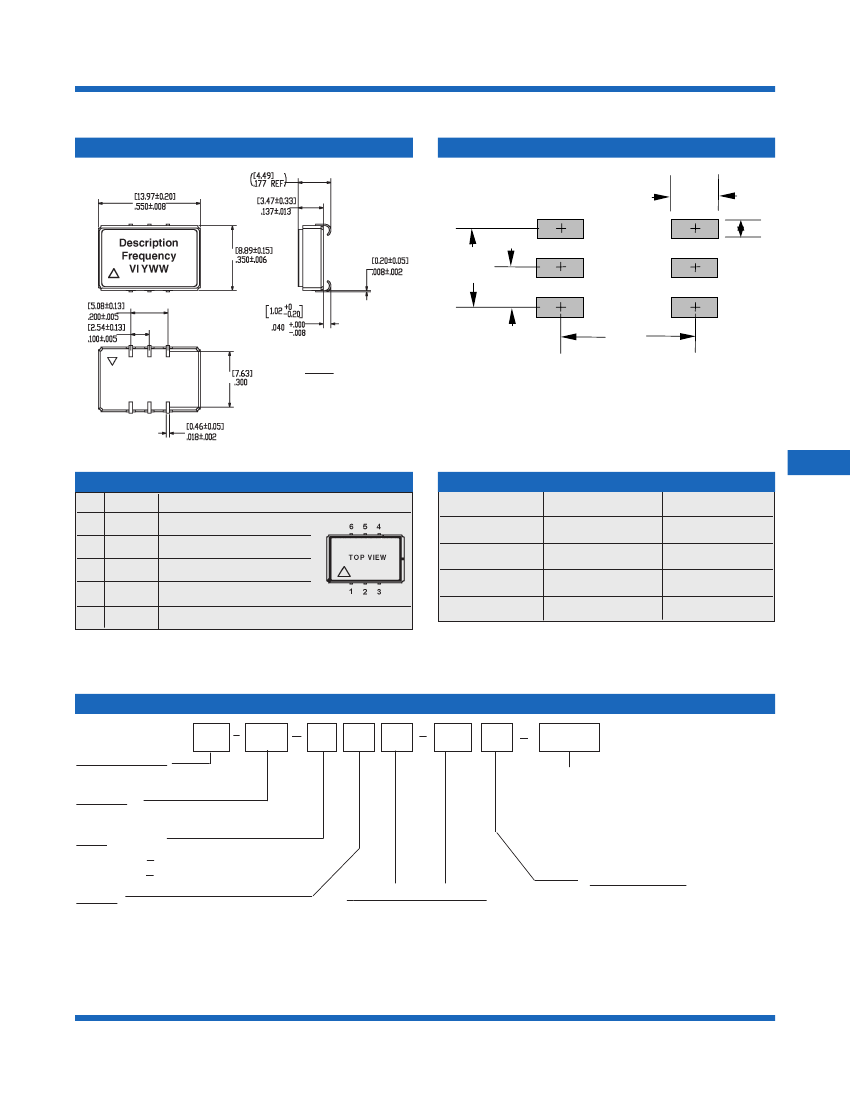

Outline Drawing
Recommended Solder Pad Layout
Dimensions are in
inches and (millimeters)
0.118
(3.00)
0.200
(5.08)
0.050
(1.27)
0.100
(2.54)
0.346
(8.80)
mm
(in)
Pin Out Information
Pin Symbol Function
1
2
3
4
5
6
E/D
N/C
GND
Output
C
Output
V
CC
Output Disable option
No Connect
Case, Ground.
Output
Complementary Output
Supply Voltage (5 V or 3.3V ±5%)
XO
Standard Frequencies
19.44 MHz
78.125 MHz
125.00 MHz
156.25 MHz
167.3316 MHz
38.88 MHz
82.944 MHz
139.264 MHz
161.1328 MHz
177.7371 MHz
77.76 MHz
100.000 MHz
155.52 MHz
166.6286 MHz
1. By setting pin 1 high, the outputs are disabled and output on pin
4 is held low while Complementary output on pin 5 is held high.
Output is enabled by setting pin 1 at < Vcc -1.6V.
Ordering Information
XO
Product Family
XO
= XO
Package
500
= 6 pin J lead
Input
C
= 5.0 Vdc +5%
D
= 3.3 Vdc +5%
Output
F
= Complementary PECL
500
D
F
C
205
E
155.52
MHz
Frequency
15 - 200 MHz
Temperature & Stability
C-205
=
±20 ppm over 0°C to 70°C
C-325
=
±32 ppm over 0°C to 70°C
C-505
= ±
50 ppm over 0°C to 70°C
F-505
= ±
50 ppm over -40°C to 85°C
F-104
= ±
100 ppm over -40°C to 85°C
Enable / Disable
N
= N/A
E =
Pin 1
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Web: www.vectron.com
73
