Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC5842AJB

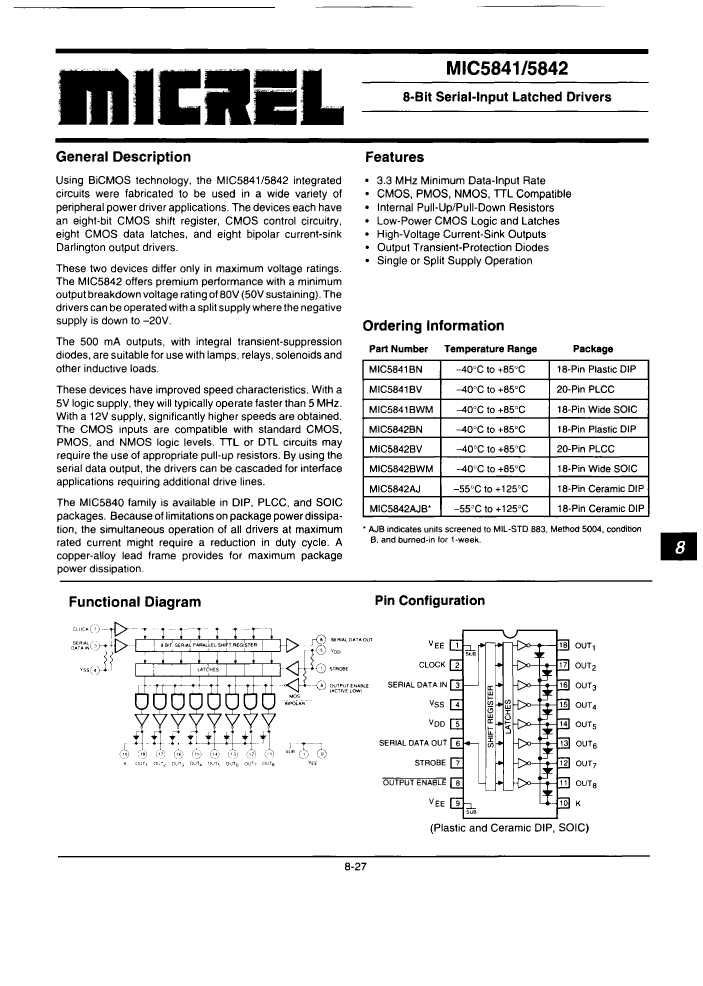

Preview

MIC5842AJB: DescriptionSIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size204KB，7 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC5842AJB Overview

SIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18

MIC5842AJB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	DIP
package instruction	DIP, DIP18,.4
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SPLIT SUPPLY OPERATION POSSIBLE
Built-in protection	TRANSIENT
Number of drives	8
Input properties	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
length	22.606 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.35 A
Nominal output peak current	0.5 A
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.4
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/12 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum slew rate	16 mA
Maximum supply voltage	12 V
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

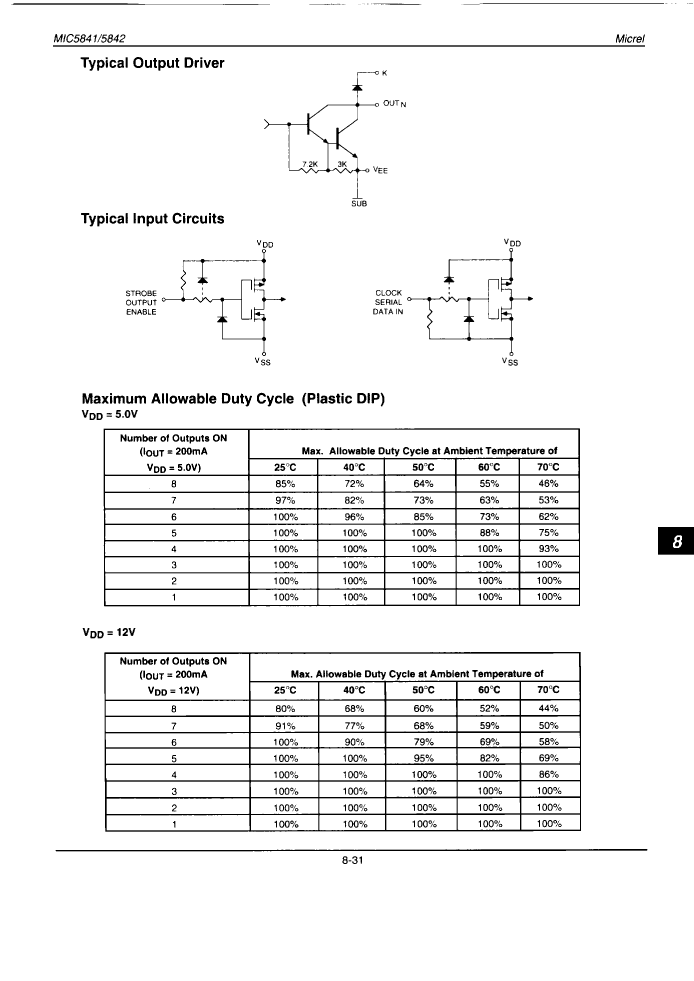

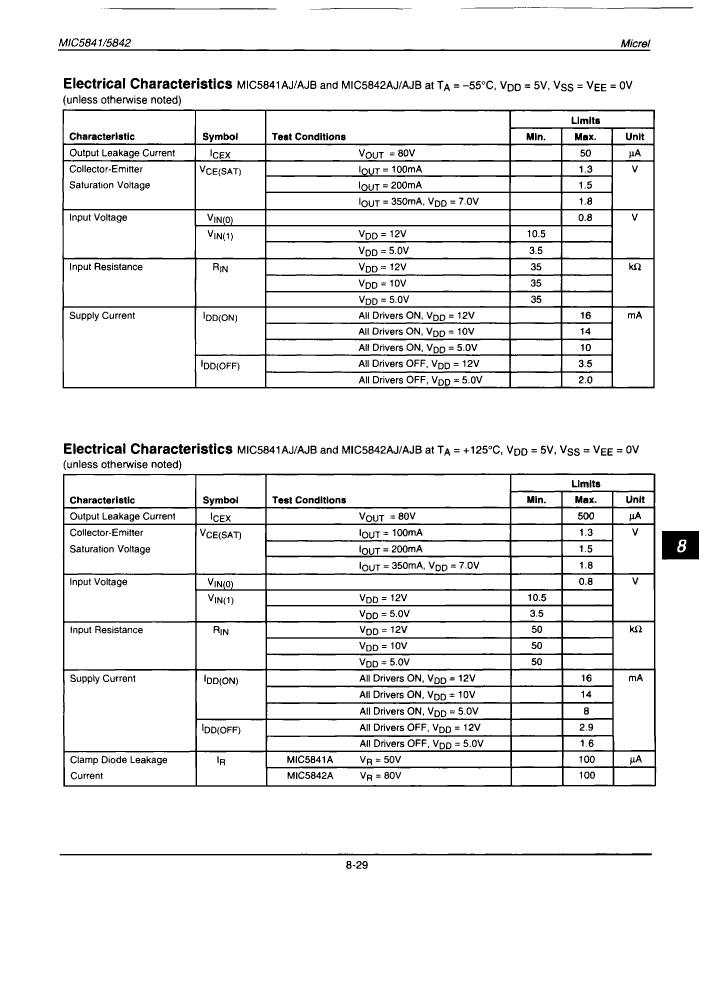

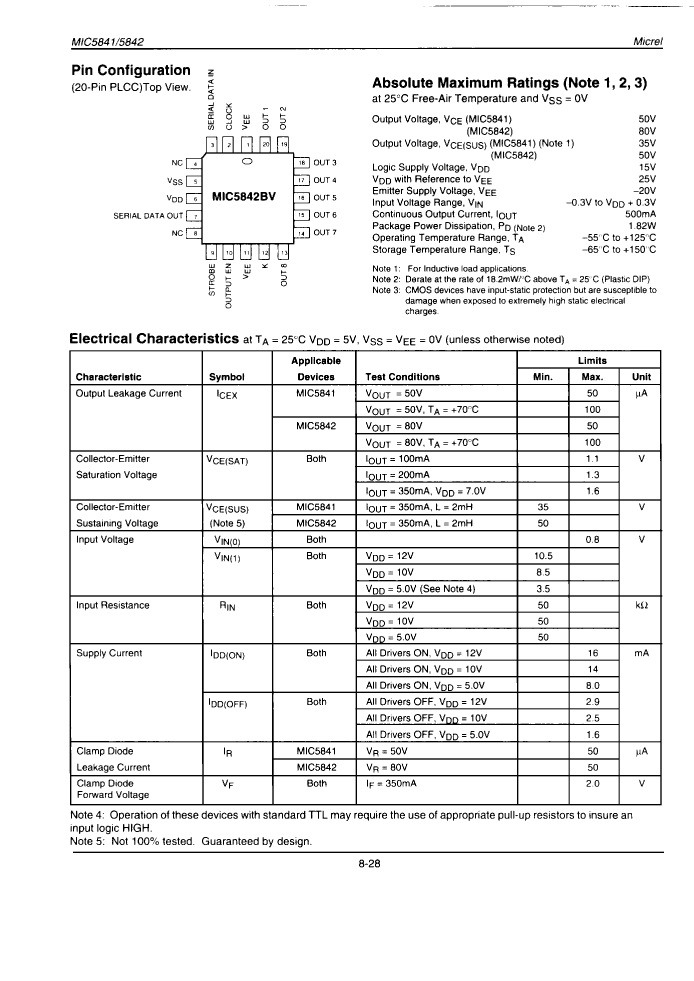

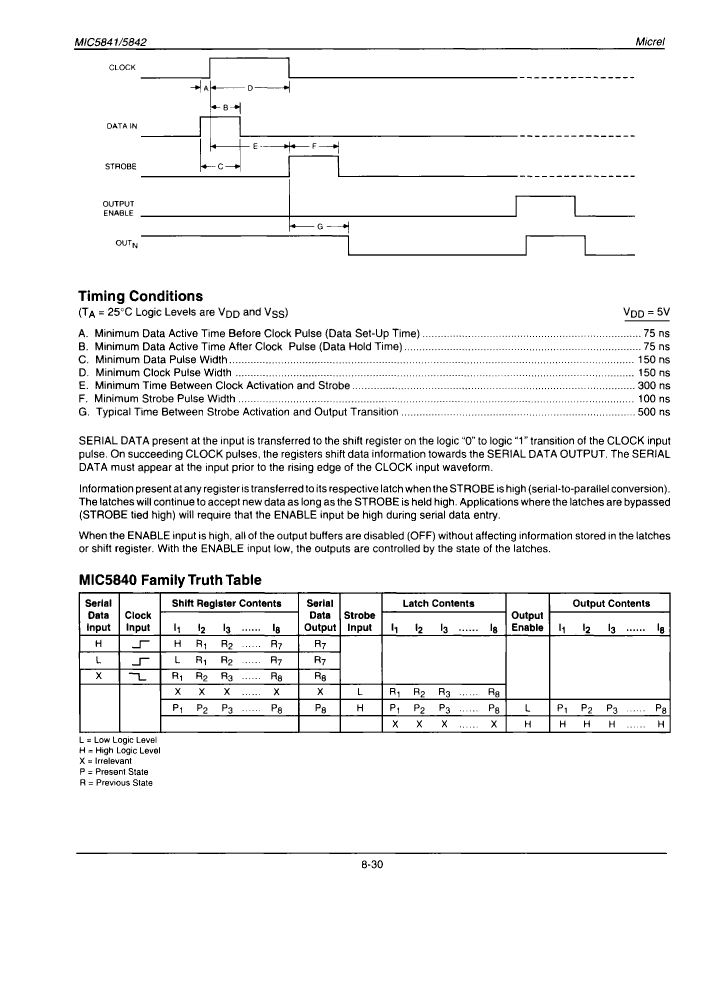

Preview

Download Datasheet

View All

MIC5842AJB Related Products

	MIC5842AJB	MIC5841AJB	MIC5841AJ
Description	SIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18	SIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18	SIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Micrel ( Microchip )	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP18,.4	DIP, DIP18,.4	DIP, DIP18,.4
Contacts	18	18	18
Reach Compliance Code	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99
Other features	SPLIT SUPPLY OPERATION POSSIBLE	SPLIT SUPPLY OPERATION POSSIBLE	SPLIT SUPPLY OPERATION POSSIBLE
Built-in protection	TRANSIENT	TRANSIENT	TRANSIENT
Number of drives	8	8	8
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER	SIPO BASED PERIPHERAL DRIVER	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T18	R-GDIP-T18	R-GDIP-T18
JESD-609 code	e0	e0	e0
length	22.606 mm	22.606 mm	22.606 mm
Number of functions	1	1	1
Number of terminals	18	18	18
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK	SINK
Maximum output current	0.35 A	0.35 A	0.35 A
Nominal output peak current	0.5 A	0.5 A	0.5 A
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.4	DIP18,.4	DIP18,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5/12 V	5/12 V	5/12 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum slew rate	16 mA	16 mA	16 mA
Maximum supply voltage	12 V	12 V	12 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
