A50-645-4504890: DescriptionRF SMA Connector, Female, Panel Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

A50-645-4504890 Overview

RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack

A50-645-4504890 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	SMA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

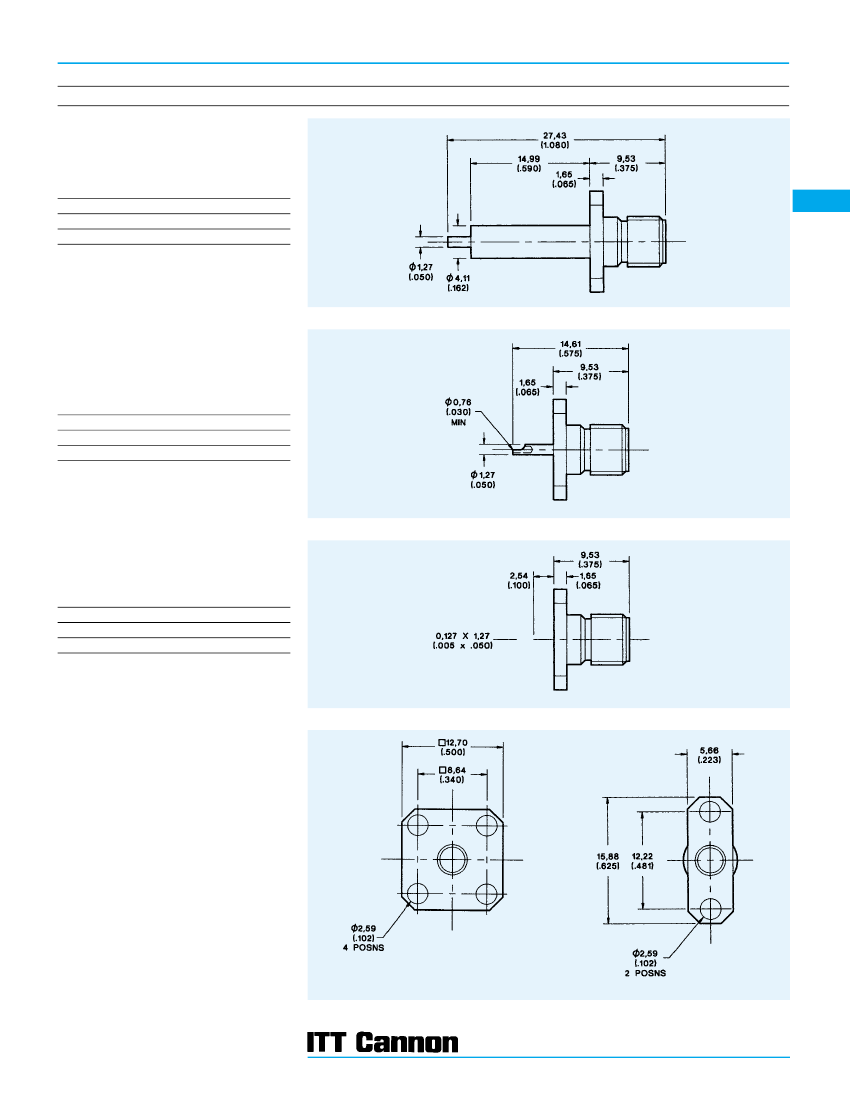

Preview

Download Datasheet

View All

RF Coaxial Connectors

Flange Mount Receptacles

Precision SMA

Straight Jack, Stub Contact, Extended Dielectric

Part Numbers

Square Flange

A50-645-4520890

Narrow Flange

A50-645-4540890

SMA

Straight Jack, Solder Pot Contact, Flush

Dielectric

Part Numbers

Square Flange

A50-645-4504890

Narrow Flange

A50-645-4526890

Straight Jack, Tab Contact, Flush Dielectric

Part Numbers

Square Flange

A50-645-4575890

Narrow Flange

A50-645-4528890

Flange Dimensions for Flange Mount

Receptacles and Panel Jacks.

ALL FLANGE MOUNT RECEPTACLES HAVE

CAPTIVATED CONTACTS

Square Flange

Narrow Flange

Dimensions are shown in mm (inch)

Dimensions subject to change

13

A50-645-4504890 Related Products

	A50-645-4504890	A50-645-4528890	A50-645-4520890	A50-645-4526890	A50-645-4540890	A50-645-4575890
Description	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Jack	RF SMA Connector, Female, Panel Mount, Jack	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Jack	RF SMA Connector, Female, Panel Mount, Jack
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ	STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 6GHZ
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA	SMA
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1
Maker	ITT	-	ITT	ITT	ITT	ITT
