KRA751F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> KRA751F

KRA751F: DescriptionSmall Signal Bipolar Transistor, 0.05A I(C), 20V V(BR)CEO, 2-Element, PNP, Silicon, TFS6, 6 PIN; CategoryDiscrete semiconductor The transistor; File Size396KB，5 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/

Download Datasheet Parametric Compare View All

KRA751F Overview

Small Signal Bipolar Transistor, 0.05A I(C), 20V V(BR)CEO, 2-Element, PNP, Silicon, TFS6, 6 PIN

KRA751F Parametric

Parameter Name	Attribute value
Maker	KEC
package instruction	SMALL OUTLINE, R-PDSO-F6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	20 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-F6
Number of components	2
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

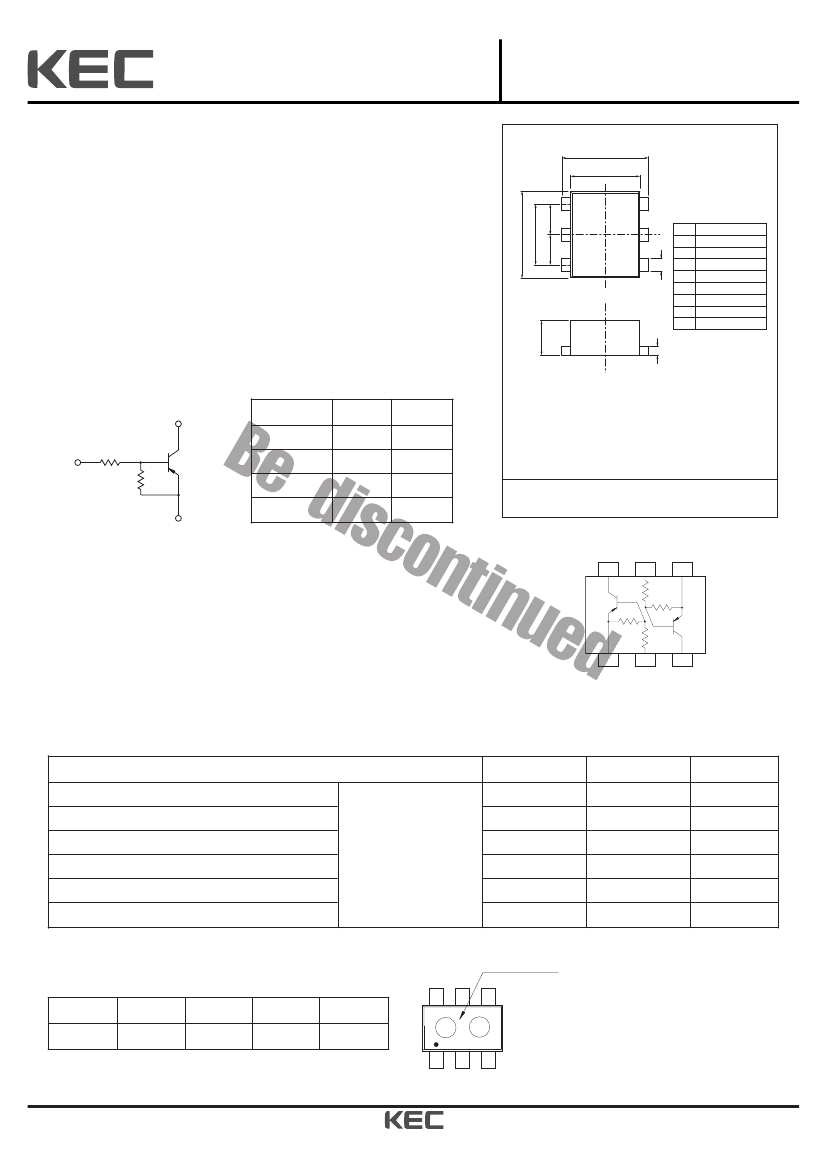

SEMICONDUCTOR

TECHNICAL DATA

SWITCHING APPLICATION.

INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.

FEATURES

・With

Built-in Bias Resistors.

KRA751F~KRA754F

EPITAXIAL PLANAR PNP TRANSISTOR

・Simplify

Circuit Design.

・Reduce

a Quantity of Parts and Manufacturing Process.

・Thin

Fine Pitch Super mini 6 pin Package.

DIM

MILLIMETERS

1.0 + 0.05

0.7 + 0.05

1.0 + 0.05

0.8 + 0.05

0.35

0.15 + 0.05

0.38+0.02/-0.04

0.1 + 0.05

EQUIVALENT CIRCUIT

OUT

BIAS RESISTOR VALUES

TYPE NO.

KRA751F

KRA752F

KRA753F

KRA754F

R1(kΩ)

4.7

R2(kΩ)

4.7

COMMON (EMITTER)

IN (BASE)

COMMON (EMITTER)

IN (BASE)

OUT (COLLECTOR)

TFS6

COMMON(+)

EQUIVALENT CIRCUIT (TOP VIEW)

MAXIMUM RATING (Ta=25℃)

CHARACTERISTIC

Output Voltage

Input Voltage

Output Current

KRA751F~754F

Power Dissipation

Junction Temperature

Storage Temperature Range

* Total Rating.

stg

150

55½150

℃

SYMBOL

RATING

-20

-10/10

-50

UNIT

Marking

MARK SPEC

TYPE

MARK

KRA751F

KRA752F

KRA753F

KRA754F

Type Name

2008. 11. 20

Revision No : 3

1/5

KRA751F Related Products

	KRA751F	KRA753F	KRA754F	KRA752F
Description	Small Signal Bipolar Transistor, 0.05A I(C), 20V V(BR)CEO, 2-Element, PNP, Silicon, TFS6, 6 PIN	Small Signal Bipolar Transistor, 0.05A I(C), 20V V(BR)CEO, 2-Element, PNP, Silicon, TFS6, 6 PIN	Small Signal Bipolar Transistor, 0.05A I(C), 20V V(BR)CEO, 2-Element, PNP, Silicon, TFS6, 6 PIN	Small Signal Bipolar Transistor, 0.05A I(C), 20V V(BR)CEO, 2-Element, PNP, Silicon, TFS6, 6 PIN
package instruction	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6	SMALL OUTLINE, R-PDSO-F6
Contacts	6	6	6	6
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A	0.05 A
Collector-emitter maximum voltage	20 V	20 V	20 V	20 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30	100	120	60
JESD-30 code	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6
Number of components	2	2	2	2
Number of terminals	6	6	6	6
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Maker	KEC	-	KEC	KEC
