EB7D
Vishay Dale
Edgeboard Connectors, Dual Readout
FEATURES
• 0.156" C-C x 0.140" grid (3.96 mm x 3.56 mm)
• Bifurcated bellows contacts provide 2 flexing contact
surfaces to assure positive contact under adverse
conditions such as vibration or PC board irregularities
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• Polarization between contact positions in all sizes.
Between contact polarization permits polarizing without
loss of contact position
• Selective gold plating
• Polarizing key is reinforced nylon, may be inserted by
hand, requires no adhesive.
• Protected entry, provided by recessed leading edge of
contact, permits the card slot to straighten and align the
board before electrical contact is made. Prevents damage
to contact which might be caused by warped or out of
tolerance boards
•
Recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524, project 77CH3889
ELECTRICAL SPECIFICATIONS
Current Rating:
5 A
Test Voltage Between Contacts:
At sea level: 1800 V
RMS
At 70 000 feet (21 336 meters): 450 V
RMS
Insulation Resistance:
5000 MΩ minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current (with
gold plating)
Operating Temperature:
- 55 °C to + 125 °C
Humidity:
96 h at 90 % relative humidity at + 40 °C, dried at
room temperature for 3 h minimum, insulation resistance
was greater than 5000 MΩ
Durability:
After 500 cycles of insertion and withdrawal of a
0.070" (1.78 mm) thick steel test gauge, contact resistance
less than 0.030 V at 5 A and individual contact retention force
when measured with 0.054" (1.37 mm) thick steel test slug
greater than ½ oz.
Shock:
Three 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
Vibration:
2 h in each of 3 mutually perpendicular planes,
frequency sweep 10 cps to 55 cps at 0.06 double amplitude
with no loss of continuity
APPLICATIONS
For use with 0.062" (1.57 mm) printed circuit boards requiring
an edgeboard type connector on 0.156" (3.96 mm) centers
MATERIAL SPECIFICATIONS
Body:
(Standard) glass-filled phenolic per MIL-M-14, dark
green, flame retardant (UL 94 V-0). (Optional - see Ordering
Information)
“1” glass-filled diallyl phtalate per MIL-M-14, type SDG-F
green, flame retardant (UL 94 V-0)
“3” thermoplastic polyester, glass-filled, black, flame
retardant (UL 94 V-0)
”5” thermoplastic polyphenylene sulfied, glass filled, brown,
flame retardant (UL 94 V-0)
Contacts:
Phosphor bronze
Polarizing Key:
Glass reinforced nylon, flame retardant
(UL 94H-B)
Contact Plating:
Gold (See Ordering Information)

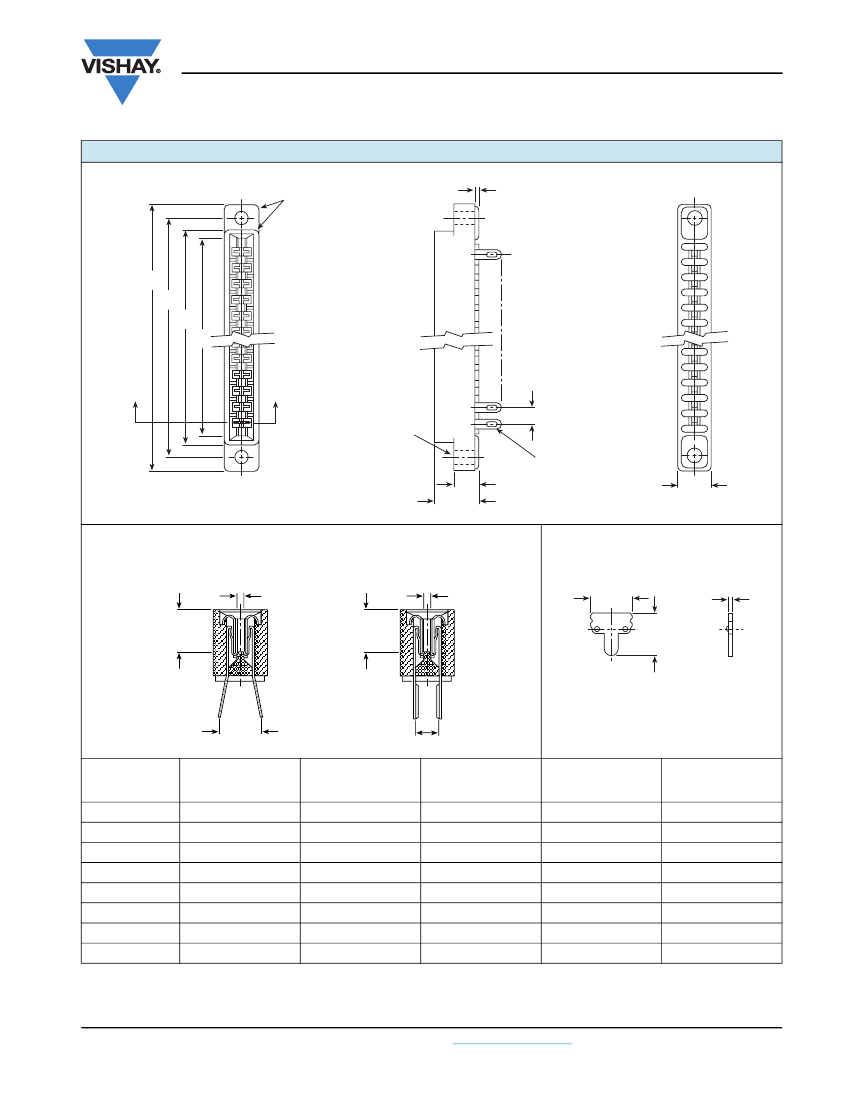

PHYSICAL SPECIFICATIONS
Contact Type:
Bifurcated bellows
Number of Contacts:
6, 10, 12, 15, 18, 22, 36, 43 per side
Contact Spacing:
0.156" (3.96 mm) center to center
Card Thickness:
0.054" to 0.071" (1.37 mm to 1.80 mm)
Card Slot Depth:
Dual readout = 0.260" (6.60 mm)
Note
• High temperature burn-in, edgeboard connectors, 0.156"
(3.96 mm) center to center are on
www.vishay.com/doc?36006
ORDERING INFORMATION
EB7
MODEL
1
BODY
MATERIAL
Optional body
material
1 = Diallyl
Phthalate
3 = Glass-filled
Polyester
5 = Glass-filled
Polyphenylene
Sulfied
= Omit number
for standard
pheniolic
D
B
A
22
SG
X
A

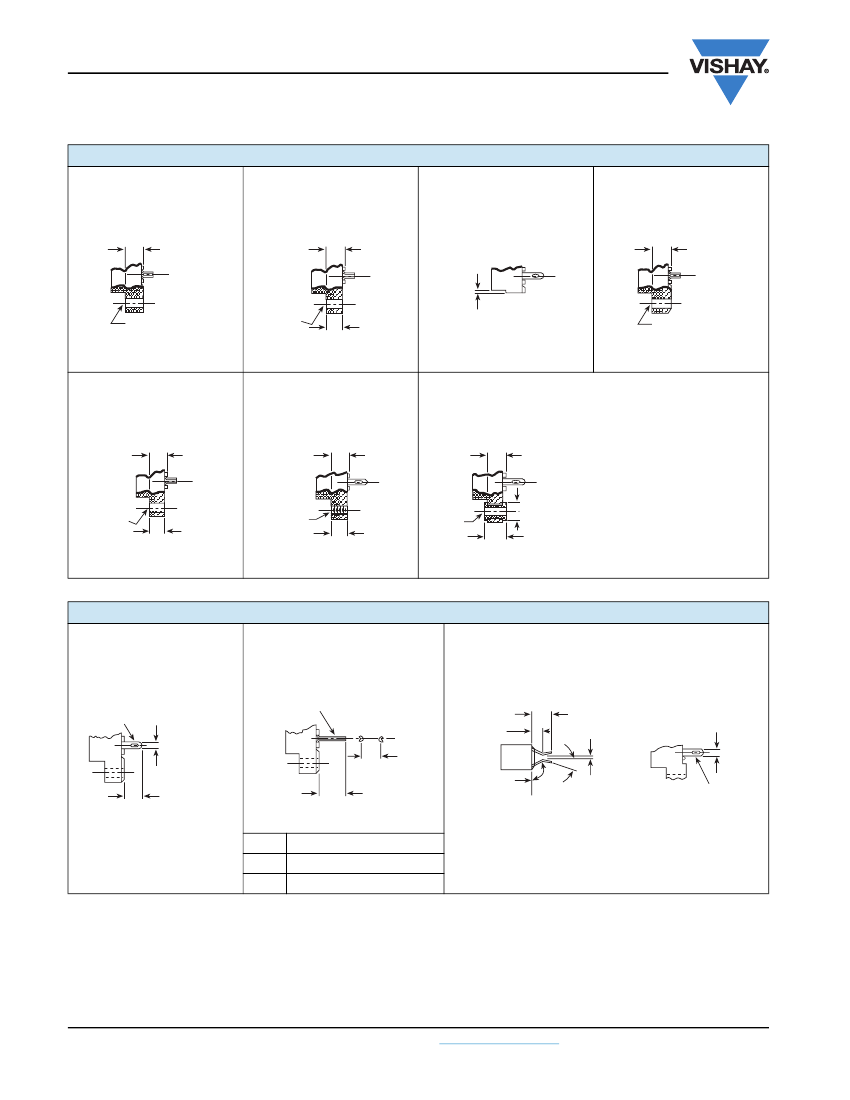

MOUNTING
POLARIZING
CONTACT PLATING
DUAL
OPTIONAL STANDARD CONTACTS
VARIATIONS KEY POSITIONS
READOUT CONTACTS TERMINAL PER SIDE
VARIATIONS
SG = Selective gold plating
6, 10, 12,
(0.00003" (0.000762 mm)
Beryllium
Key(s) are located
A, E, C,
15, 18, 22, minimum thick) on contact
Copper
to right of position(s)
or K
36, or 43
area with gold flash on
copntacts
designated.
terminal
optional
Required only when
SGF = Selective gold plating
Available in
polarizing keys are
(0.000010" (0.000254 mm)
“A” and “E”
to be factory
minimum thick) on contact
contact
installed
area with gold flash on
styles only
terminal.
(Omit for
All gold plating over
standard)
0.00005" (0.00127 mm)
minimum nickel underplate.
Contact factory for additional
plating options.
For technical questions, contact:
connectors@vishay.com
Document Number: 36003
Revision: 16-Feb-09
www.vishay.com
