120-100-1-2-10CF

Description
Helical Convoluted Tubing Natural or Black PFA, FEP, PTFE, Tefzel (ETFE) or PEEK Type A - Tubing Only - No Braid
File Size195KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

120-100-1-2-10CF Overview

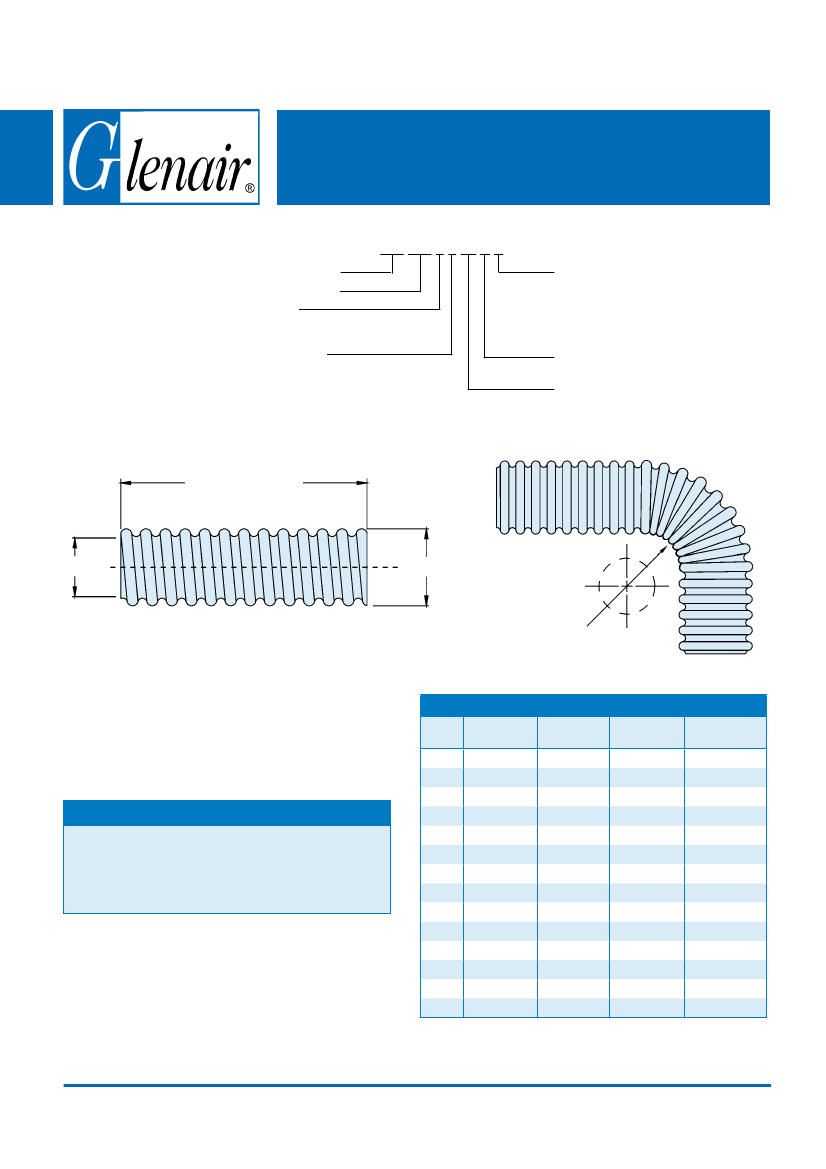

Helical Convoluted Tubing Natural or Black PFA, FEP, PTFE, Tefzel (ETFE) or PEEK Type A - Tubing Only - No Braid

120-100
Series 74 Helical Convoluted Tubing (MIL-T-81914)
Natural or Black PFA, FEP, PTFE, Tefzel
®
(ETFE) or PEEK
Type A - Tubing Only - No Braid
120-100-1-1-16 B E
Product Series
Basic Number
Class
1 = Standard Wall
2 = Thin Wall (See Note 1)
Convolution
1 = Standard
2 = Close
Material
E = ETFE
F = FEP
P = PFA
T = PTFE (See Note 2)
K = PEEK (See Note 3)
B = Black
C = Natural
Dash Number
(Table I)
Conduit and
Conduit
Systems
TUBING
ONLY
NO BRAID
TYPE
A
Length
(As Specified In Feet)
A DIA
B DIA
MINIMUM
BEND RADIUS
TABLE I: TUBING SIZE
Dash
No.
06
09
10
12
14
16
20
24
28
32
40
48
56
64
Fractional
Size Ref
3/16
9/32
5/16
3/8
7/16
1/2
5/8
3/4
7/8
1
1-1/4
1-1/2
1-3/4
2
A Inside
Dia Min
.181 (4.6)
.273 (6.9)
.306 (7.8)
.359 (9.1)
.427 (10.8)
.480 (12.2)
.603 (15.3)
.725 (18.4)
.860 (21.8)
.970 (24.6)
1.205 (30.6)
1.437 (36.5)
1.688 (42.9)
1.937 (49.2)
B Dia
Max
.320 (8.1)
.414 (10.5)
.450 (11.4)
.510 (13.0)
.571 (14.5)
.650 (16.5)
.770 (19.6)
.930 (23.6)
1.073 (27.3)
1.226 (31.1)
1.539 (39.1)
1.832 (46.5)
2.156 (54.8)
2.332 (59.2)
Minimum
Bend Radius
.500 (12.7)
.750 (19.1)
.750 (19.1)
.880 (22.4)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
1.880 (47.8)
2.250 (57.2)
2.750 (69.9)
3.250 (82.6)
3.630 (92.2)
4.250 (108.0)
APPLICATION NOTES
1. Consult factory for thin-wall, close convolution combination.
2. Consult factory for PTFE maximum lengths.
3. Consult factory for PEEK min/max dimensions.
4. Metric dimensions (mm) are in parentheses.
