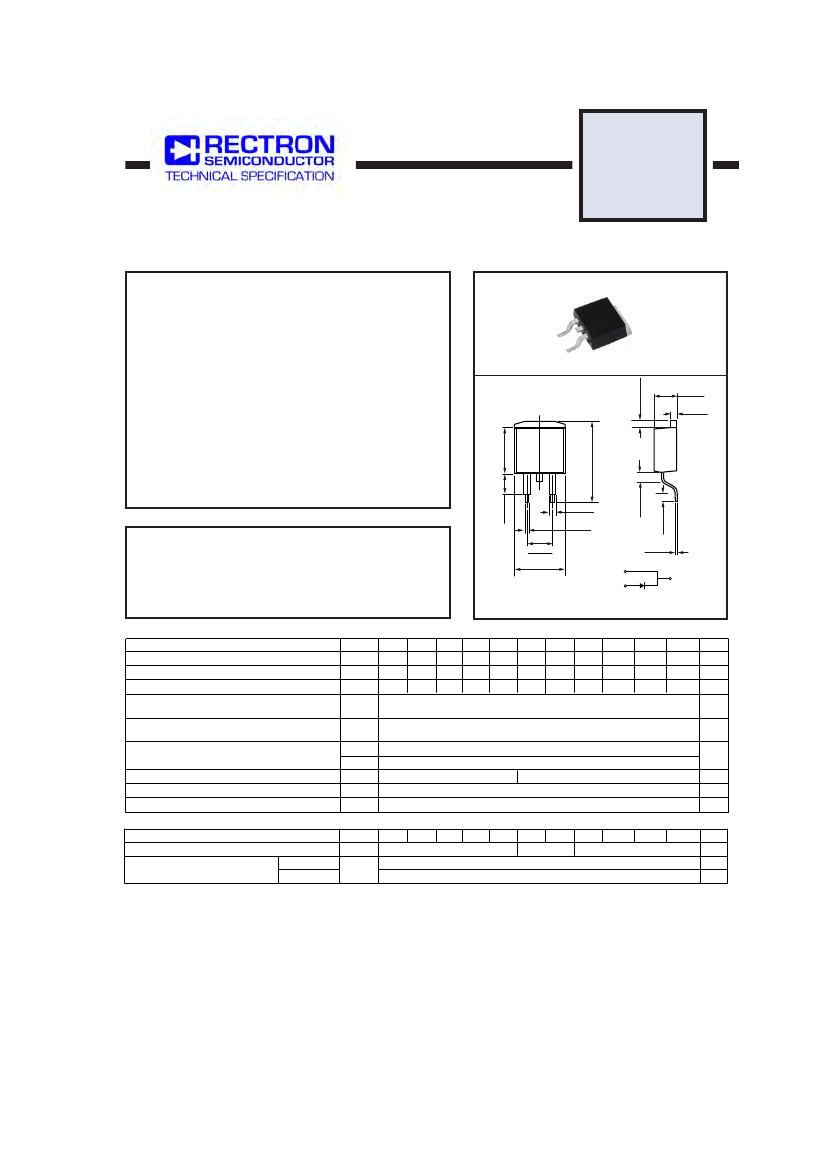

SR820S
THRU
SR8200S
SCHOTTKY BARRIER RECTIFIER
VOLTAGE RANGE 20 to 200 Volts CURRENT 8.0 Amperes
FEATURES
*
*
*
*
*
High reliability
Low switching loss
Low forward voltage drop
High current capability
High switching capability
.049 (1.25 REF.)
D2-PAK
.189 (4.80)
.173 (4.40)
.053 (1.35)
.049 (1.25)
MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* Case: Molded plastic
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting: position: Any
* Weight: 1.35 grams
.346 (8.8)
.323 (8.2)
.624 (15.84)
PIN1
PIN2
.576 (14.64)
.126 (3.20)
.110 (2.80)
.036 (0.91)
.028 (0.71)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
.202 (5.13)
.198 (5.03)
.412 (10.46)
.388 (9.86)
PIN 1
PIN 2
.020 (0.50)
.012 (0.30)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Derating Case Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
O
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
θ
JA
R
θ
JC
C
J
T
J
T
STG
.098 (2.50)
HEATSINK
.083 (2.10)
.055 (1.40)
.047 (1.20)
.069 (1.75)
.053 (1.35)
SR820S SR830S SR835S SR840S SR845S SR850S SR860S SR880S SR8100S
SR8150S SR8200S
UNITS
Volts
Volts
Volts
Amps
Amps
0
20
14
20
30
21
30
35
25
35
40
28
40
45
32
45
50
35
50
8.0
150
60
3
60
42
60
80
56
80
100
70
100
150
105
150
200
140
200
C/W
pF
0
0
700
150
-55 to + 150
450
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25 C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 8.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25
o
C
@T
A
= 100
o
C
SYMBOL
V
F
I
R
SR820S SR830S SR835S SR840S SR845S SR850S SR860S SR880S SR8100S
SR8150S SR8200S
UNITS
Volts
mA
mA
2013-06
REV: A
.65
.75
0.2
2
.85
NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. "Fully ROHS compliant", "100% Sn plating (Pb-free)".
4. Suffix "R" for Reverse Polarity.
5. Suffix "K" for D-PAK Pkg.

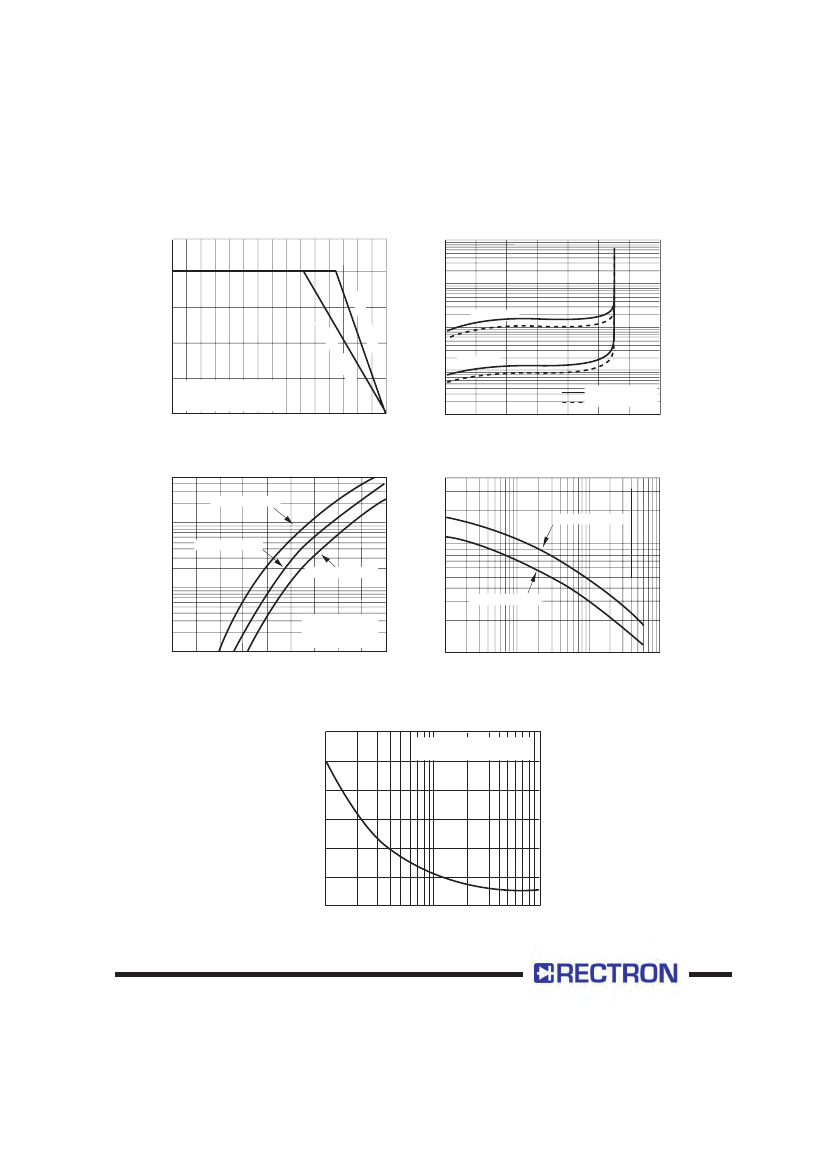

RATING AND CHARACTERISTICS CURVES ( SR820S THRU SR8200S )
INSTANTANEOUS REVERSE CURRENT, (mA)
10
AVERAGE FORWARD CURRENT, (A)
8
SR8
100
10
T
A
= 100
O
C
6
SR
82
50S
~
S R
1.0
4
2
0
820
0S
~
S
0S
0.1
T
A
= 25
O
C
SR820S
~
SR840S
SR850S~SR8200S
R8
45
S
Single Phase Half Wave
60Hz Inductive or
Resistive Load
0.01
0
50
100
O
150
0
20
40
60
80
100
120
140
CASE TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS FORWARD CURRENT, (A)
SR820S
~
SR845S
C
J
, JUNCTION CAPACITANCE, (pF)
50
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
4000
2000
1000
800
600
400
200
100
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
10
SR850S
~
SR860S
SR880S
~
SR8200S
SR820S
~
SR845S
1.0
T
J
= 25
O
C
Pulse width=300µS
1% Duty Cycle
SR850S
~
SR8200S
0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0.1
0.4
1.0
4
10
40
80100
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
155
150
145
140
135
130
125
1
2
5
8.3mS Single Half Sine-Wave
JEDEC Method
10
20
50
100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
RECTRON
Attachment information about SR8XXS
1. Internal Circuit
2. Marking on the body
Plant - code
Rectron Logo
Part No.
V Y W W
Year – code
(Y: Last digit of year &
A:2010,B:2011…..)
Week – code
(WW:01~52)
Voltage-code
20-----20V
30-----30V
35-----35V
40-----40V
45-----45V
50-----50V
60-----60V
80-----80V
100-----100V
150-----150V
200-----200V
S R 8 XX S
PACKAGING OF DIODE AND BRIDGE RECTIFIERS
BULK PACK
PACKAGE
A-405
BR-3/-6
BR-8/-10
BR-15/-25/-35/(W)
DO-15
DO-201
DO-41
HVM
HVP
MB-15/-25/-35(W)
MP-15/-25/-35(W)
R-1/-3
R-6
RB-15
RBU
RC-2
RS-1
RS-2L
RS-4L
RS-6/-8
RS-2M
RS-4M/-10M
RS-6/8/15/20/25M
WOM
PACKING CODE
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
-B
EA PER BOX
1,000
200
200
50
500
500
1,000
200
40
50
50
1000 / 500
200
1,000
450
600
600
400
300
200
600
600
300
600
INNER BOX SIZE
(mm)
194*84*21
206*208*55
236*236*50
203*205*57
194*84*21
300*73*40
194*75*21
165*214*52
236*236*40
203*205*57
203*205*57
194*84*21
300*73*40
165*252*59
240*239*35
165*252*59
240*239*35
213*162*52
230*162*52
236*236*34
236*236*40
236*236*40
230*190*46
165*252*59
CARTON SIZE
(mm)
450*220*255
450*220*255
497*251*282
450*220*255
450*220*255
347*320*271
415*220*255
353*226*290
502*251*145
450*220*255
450*220*255
450*220*255
347*320*271
347*320*271
502*251*126
347*320*271
497*255*162
450*220*255
502*251*126
497*255*162
492*255*167
497*251*100
410*243*157
347*320*271
EA PER CARTON
50,000
1,600
2,000
400
25,000
12,000
50,000
2,000
240
400
400
50,000 / 25,000
4,800
10,000
2,700
6,000
4,800
4,000
1,800
1,600
3,600
2,400
1,800
6,000
GROSS
WEIGHT(Kg)
15.64
6.00 / 6.80
12.24
12.50 (14.40)
12.74
15.90
16.2
---
8.80
13.60 (14.30)
7.7 (8.26)
11.74 / 16.17
12.93
11.6
13.00
9.4
9.264
13.65
11.3
13.6 / 14.5
10.28
11.09
13.37
11.0
TUBE PACK
PACKAGE
BDB
D2PAK
DB-1
DB-LS
DB-S
RBU
RS-1M/-2M
RS-4M/-10M
RS-6/8/15/20/25M
(I)TO-220/TO-220(A)
TO-247
PACKING CODE
-C
-C
-C
-C
-C
-C
-C
-C
-C
EA PER BOX
2,000
2,000
2,500
4,000
4,000
1,000
1,350
900
600
2,000
900
INNER BOX SIZE
(mm)
450*140*84
550*140*92
450*140*84
450*140*84
450*140*84
490*135*110
540*118*118
540*118*118
490*135*110
550*140*92
550*140*92
CARTON SIZE
(mm)
464*305*283
572*308*120
464*305*283
464*305*283
464*305*283
510*293*131
560*259*144
560*259*144
510*293*131
572*308*120
572*308*120
EA PER CARTON
12,000
4,000
15,000
24,000
24,000
2,000
2,700
1,800
1,200
4,000
1,800
WEIGHT(Kg)
14.18
10.20
14.30
16.45
18.44
13.62
12.03
12.82
13.12
11.80
7.60
-C
-C
