M4S75XAJFREQ

Description
PECL Output Clock Oscillator, 19.44MHz Min, 160MHz Max, CERAMIC, J LEADED, 4 PIN
CategoryPassive components    oscillator
File Size187KB,1 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Download Datasheet Parametric View All

M4S75XAJFREQ Overview

PECL Output Clock Oscillator, 19.44MHz Min, 160MHz Max, CERAMIC, J LEADED, 4 PIN

M4S75XAJFREQ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMtronPTI
Reach Compliance Codeunknown
maximum descent time2.5 ns
Frequency Adjustment - MechanicalNO
frequency stability35%
JESD-609 codee4
Manufacturer's serial numberM4S
Installation featuresSURFACE MOUNT
Maximum operating frequency160 MHz
Minimum operating frequency19.44 MHz
Maximum operating temperature85 °C
Minimum operating temperature
Oscillator typePECL
Output load130 OHM
physical size14.22mm x 9.78mm x 4.7mm
longest rise time2.5 ns
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry40/60 %
Terminal surfaceGold (Au)
Base Number Matches1
M4S Series

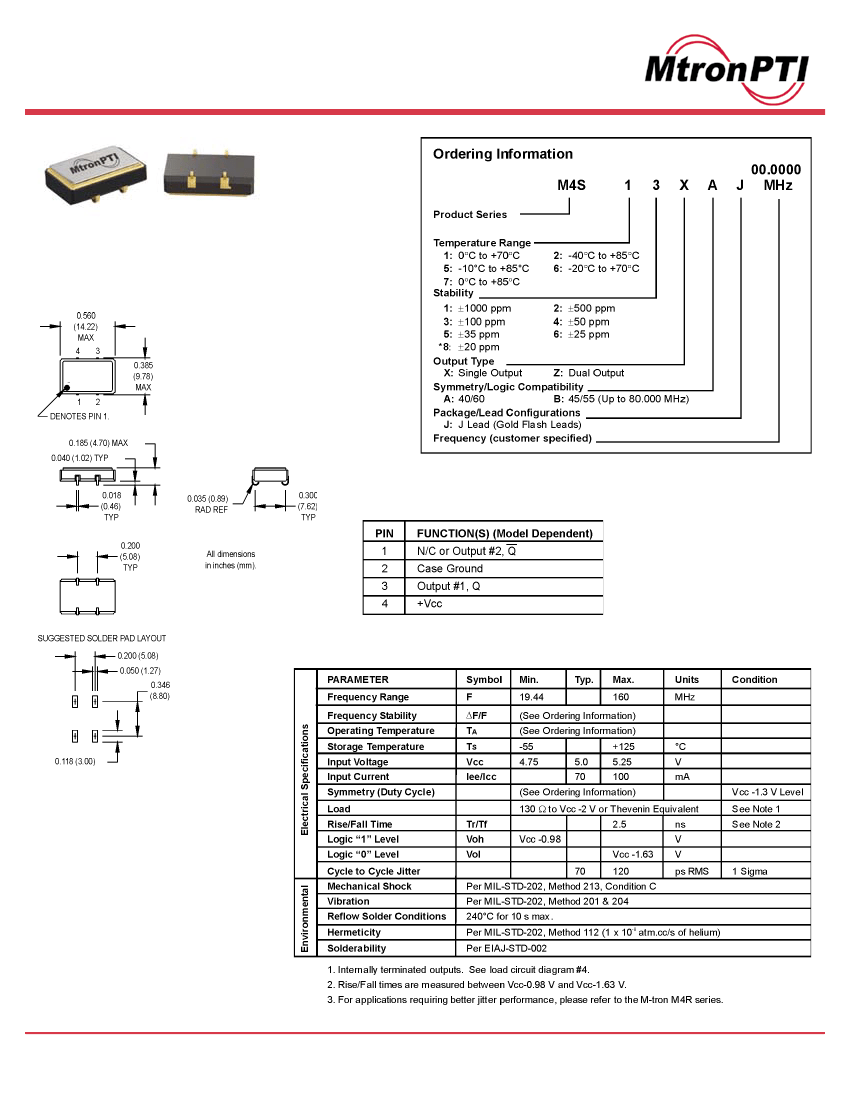

9x14 mm, 5.0 Volt, PECL, Clock Oscillator
M4S Series Ceramic J-Lead PECL Clock Oscillators
with Optional Complementary Outputs, PLL Version
Pin Connections
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Revision: 02-28-07
