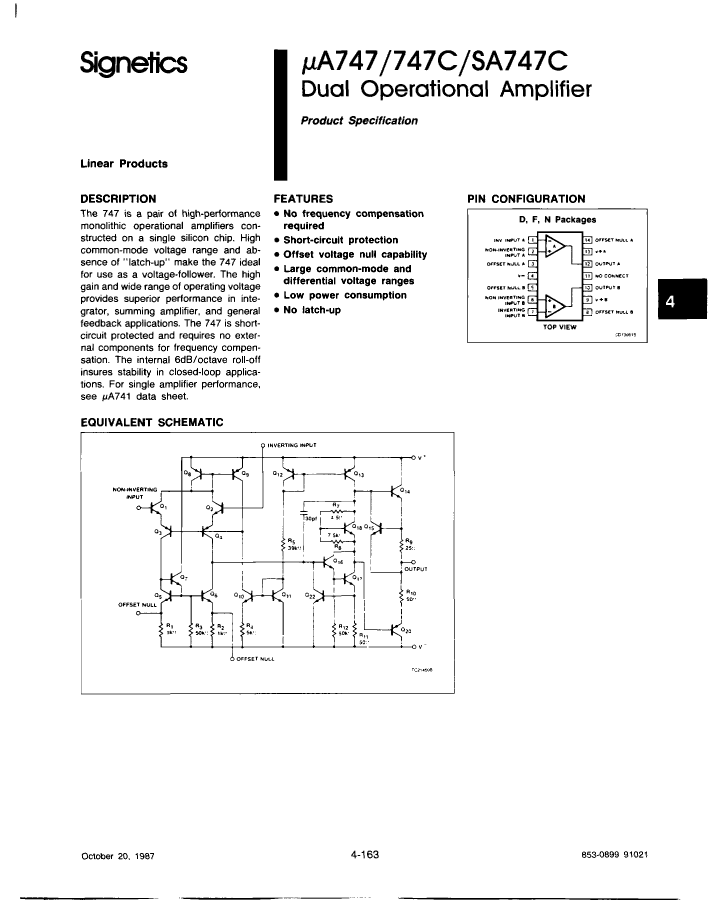

Basic information of UA747CD-T amplifier:
UA747CD-T is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,
UA747CD-T amplifier core information:
The minimum operating temperature of UA747CD-T is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.8 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of UA747CD-T is 0.5 V/us.
The nominal supply voltage of UA747CD-T is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of UA747CD-T is 7500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Relevant dimensions of UA747CD-T:
The width of UA747CD-T is: 3.9 mm and the length is 8.65 mm. UA747CD-T has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
UA747CD-T amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G14. The packaging code of UA747CD-T is: SOP. The materials used in the UA747CD-T package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The UA747CD-T package pin format is: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.
Basic information of UA747CD-T amplifier:
UA747CD-T is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,
UA747CD-T amplifier core information:
The minimum operating temperature of UA747CD-T is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.8 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of UA747CD-T is 0.5 V/us.
The nominal supply voltage of UA747CD-T is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of UA747CD-T is 7500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Relevant dimensions of UA747CD-T:
The width of UA747CD-T is: 3.9 mm and the length is 8.65 mm. UA747CD-T has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
UA747CD-T amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G14. The packaging code of UA747CD-T is: SOP. The materials used in the UA747CD-T package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The UA747CD-T package pin format is: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.

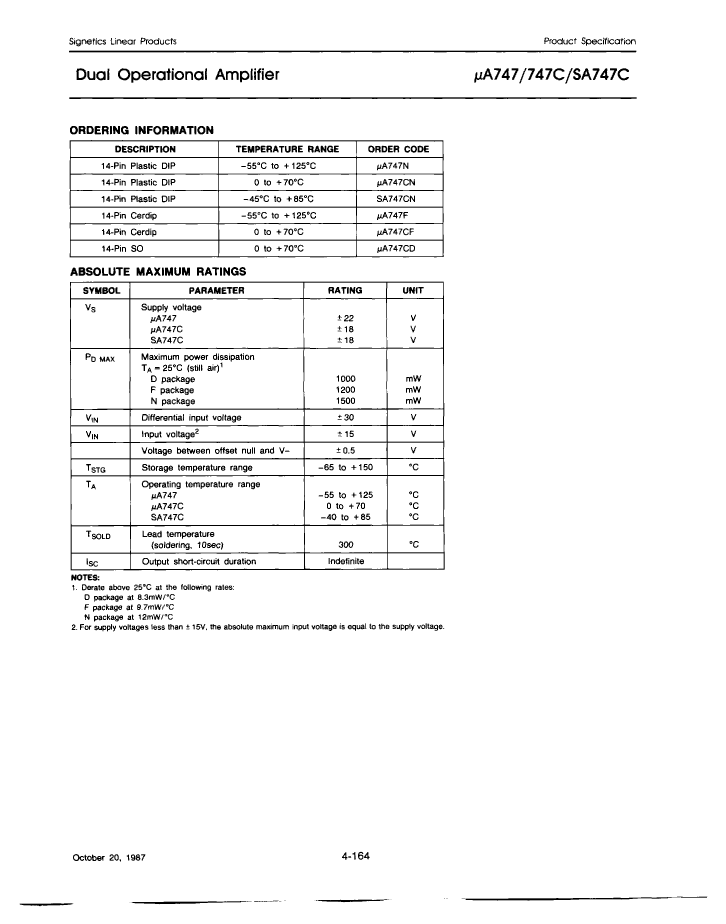

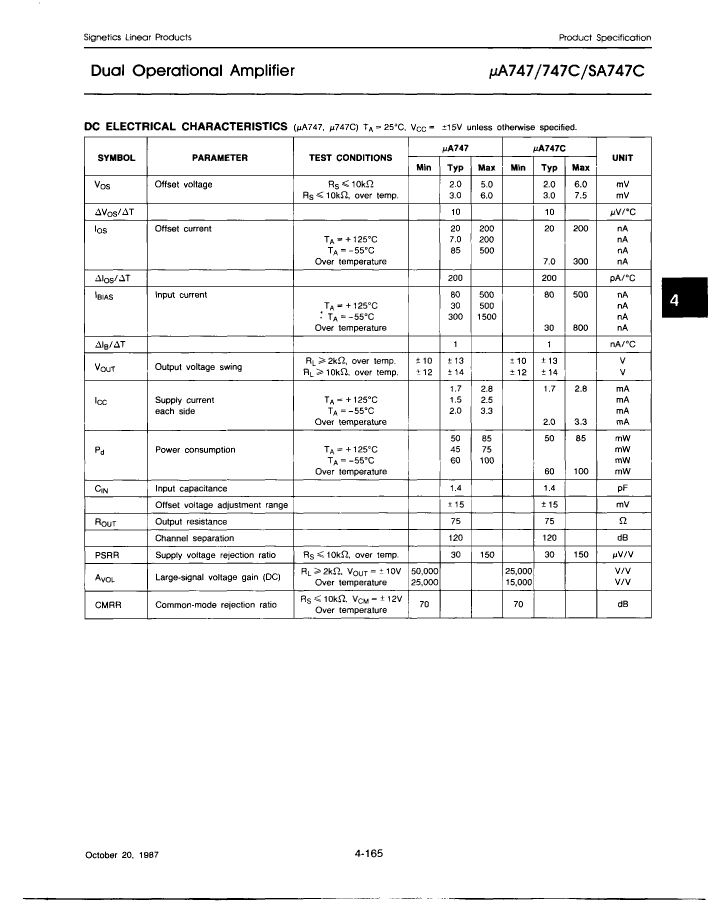

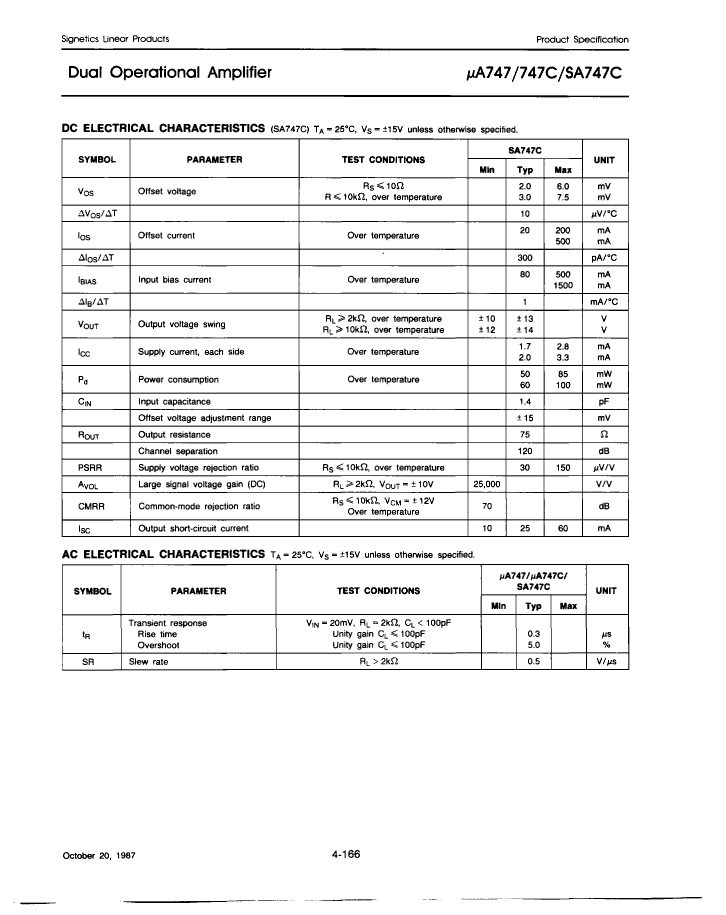

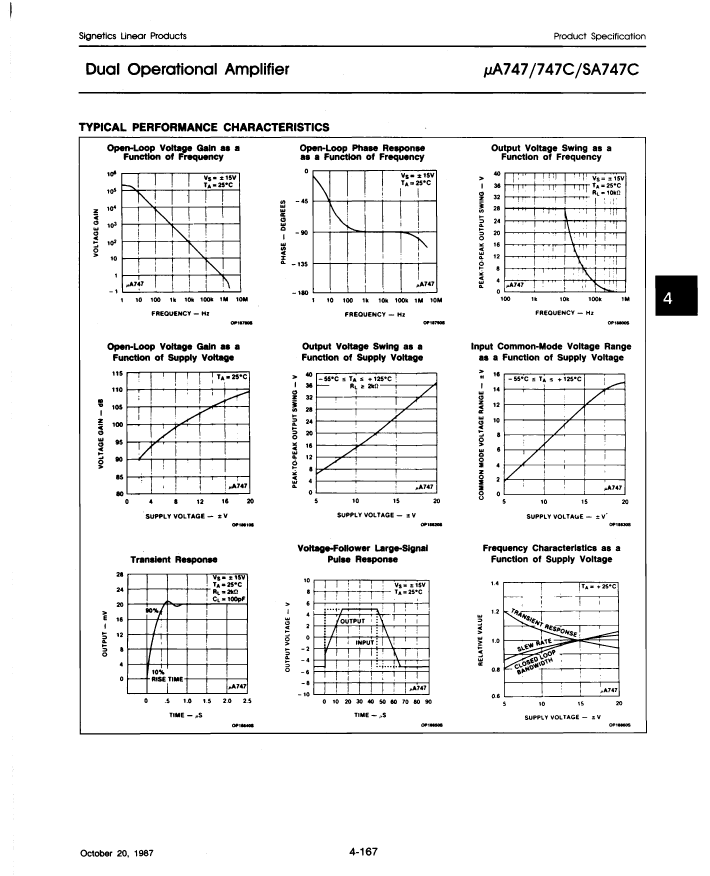

| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.8 µA |
| Nominal Common Mode Rejection Ratio | 70 dB |
| Maximum input offset voltage | 7500 µV |
| JESD-30 code | R-PDSO-G14 |
| length | 8.65 mm |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal slew rate | 0.5 V/us |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| Base Number Matches | 1 |
| UA747CD-T | UA747CD | |
|---|---|---|
| Description | IC DUAL OP-AMP, 7500 uV OFFSET-MAX, PDSO14, PLASTIC, SO-14, Operational Amplifier | IC DUAL OP-AMP, 7500 uV OFFSET-MAX, PDSO14, PLASTIC, SO-14, Operational Amplifier |
| Maker | NXP | NXP |
| Parts packaging code | SOIC | SOIC |
| package instruction | SOP, | SOP, |
| Contacts | 14 | 14 |
| Reach Compliance Code | unknown | unknow |
| ECCN code | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.8 µA | 0.8 µA |
| Nominal Common Mode Rejection Ratio | 70 dB | 70 dB |
| Maximum input offset voltage | 7500 µV | 7500 µV |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 |
| length | 8.65 mm | 8.65 mm |
| Negative supply voltage upper limit | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 2 | 2 |
| Number of terminals | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm |
| Nominal slew rate | 0.5 V/us | 0.5 V/us |
| Supply voltage upper limit | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | YES | YES |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL |
| width | 3.9 mm | 3.9 mm |
