Composite
Backshells
CONNECTOR DESIGNATOR:
with Shrink Boot Porch and Self Locking Rotatable Coupling
Finish Symbol
(See
Table III)
Angle and Profile
S
- Straight
B
- 45° Elbow
A
- 90° Elbow
Custom Braid Length
Specify In Inches
(Omit for Std. 12" Length)
Shrink Boot
For S and B
Angle Only
(Omit for None)
319-134
Composite EMI/RFI Ultra Low-Profile Shield Sock
A
F
H
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series III and IV
SELF-LOCKING
ROTATABLE COUPLING
Product Series
319
- EMI/RFI Shield
Sock Assemblies
Optional Braid
Material
Omit for Standard
(See
Table IV)
319
H
S
134
Basic Part
Number
XO
16
B
R - S
14
B

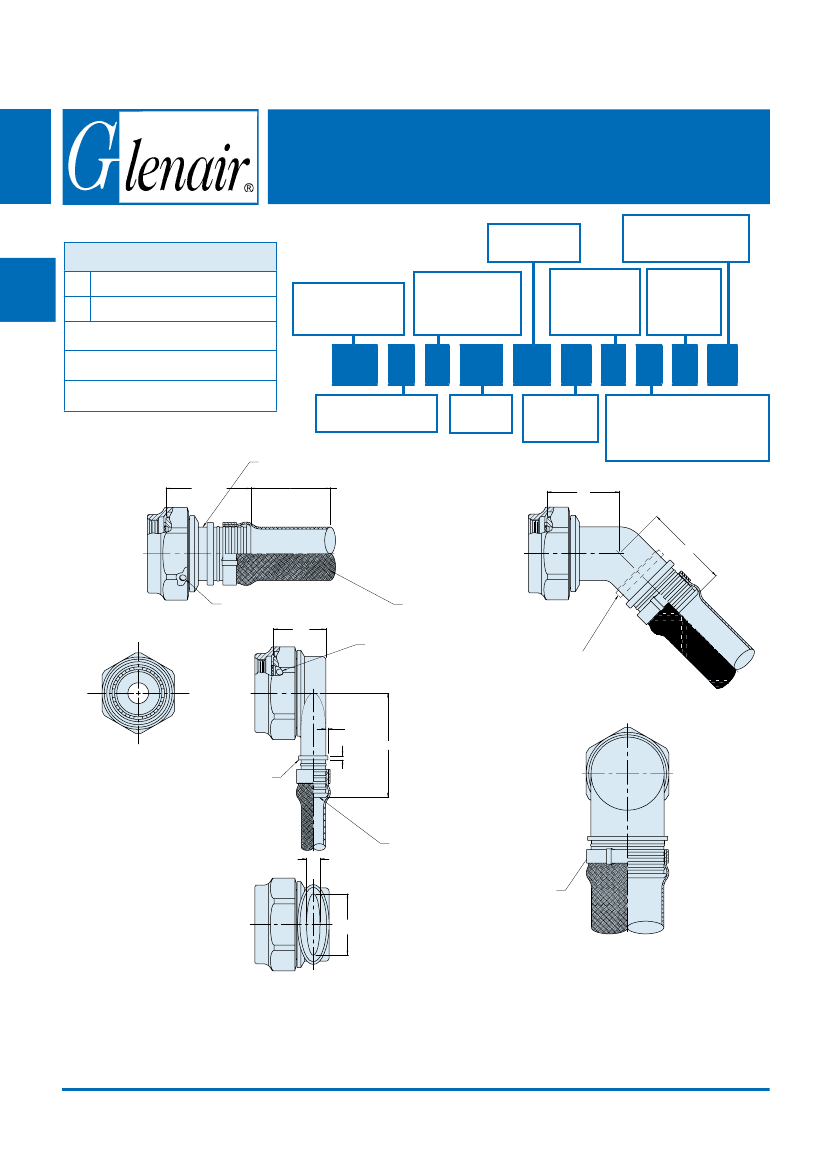

STANDARD PROFILE
Connector Designator
F and H
Connector
Dash Number
(See
Table II)
Shrink Sleeve
or Boot Groove
.962
Max
12.00 Min Standard Shield Length.
See Part Number Development
for Optional Length
E
Split Ring / Band Option
Split Ring (687-749) and Band
(600-057-1) supplied with
R
option
(Omit
for none)
C
Optional Ø .125 Drain Holes
3 Minimum, Equally Spaced
G
Standard Shield
IAW 107-030 Nickel/Copper
See Table III for Optional Material
Optional Ø .125 Drain Holes
3 Minimum, Equally Spaced
Raised Configuration
Manufacturers Option
F
D
Shrink Sleeve
or Boot Lip
.065
.025
.07
H
E
K
Accomodates
600-057-1 Micro Band
600-057-1
Band
F
J
Accomodates
600-057-1 Micro Band
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-16
with Shrink Boot Porch and Self Locking Rotatable Coupling
TABLE II: SHELL SIZE
Shell Size
F
08
10
12
14
16
18
20
22
24
H
09
11
13
15
17
19
21
23
25
E
± .06
.72 (18.3)
.75 (19.1)
.75 (19.1)
.76 (19.3)
.78 (19.8)
.79 (20.1)
.82 (20.8)
.86 (21.8)
.89 (22.6)
F
± .09
.87 (22.1)
.93 (23.6)
1.00 (25.4)
1.03 (26.2)
1.05 (26.7)
1.06 (26.9)
1.09 (27.7)
1.13 (28.7)
1.16 (29.5)
G
Max
.63 (16.0)
.66 (16.8)
.72 (18.3)
.83 (21.1)
.91 (23.1)
.93 (23.6)
1.04 (26.4)
1.12 (28.4)
1.18 (30.0)
H
± .03
1.042 (26.5)
1.107 (28.1)
1.174 (29.8)
1.241 (31.5)
1.305 (33.1)
1.371 (34.8)
J
.304 (7.7)
.432 (11.0)
.546 (13.9)
.670 (17.0)
.796 (20.2)
.902 (22.9)
K
.160 (4.1)
.174 (4.4)
.195 (5.0)
.315 (8.0)
.385 (9.8)
.445 (11.3)
.525 (13.3)
.595 (15.1)
.655 (16.6)
319-134
Composite EMI/RFI Ultra Low-Profile Shield Sock
1.438 (36.5) 1.027 (26.1)
1.505 (38.2) 1.152 (29.3)
1.572 (39.9) 1.276 (32.4)
TABLE III: FINISH
Symbol
XM
XMT
Finish Description
2000 Hour Corrosion Resistant Electroless Nickel
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
2000 Hour Corrosion Resistant Cadmium Olive
Drab Over Electroless Nickel
XW
TABLE IV: BRAID TYPE
Symbol
A
B
Standard
T
Braid Type
100% AmberStrand
®
75%/25% AmberStrand
®
Blend
Nickel/Copper 34awg
Tin/Copper 34awg
NOTES
1.
2.
3.
770-001S**-0 shrink boot supplied with T option. See shrink boot product page for more details.
Coupling nut supplied unplated.
See Table I in Intro for front end dimensional details.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-17
