Z8L38220ASC: DescriptionMicroprocessor, 16-Bit, 20MHz, CMOS, PQFP144, VQFP-144; CategoryThe embedded processor and controller Microcontrollers and processors; File Size445KB，29 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z8L38220ASC Overview

Microprocessor, 16-Bit, 20MHz, CMOS, PQFP144, VQFP-144

Z8L38220ASC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	LFQFP, QFP144,.87SQ,20
Contacts	144
Reach Compliance Code	unknown
Address bus width	24
bit size	16
boundary scan	NO
maximum clock frequency	20 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G144
JESD-609 code	e0
length	20 mm
low power mode	YES
Number of terminals	144
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP144,.87SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
speed	20 MHz
Maximum slew rate	75 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	20 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

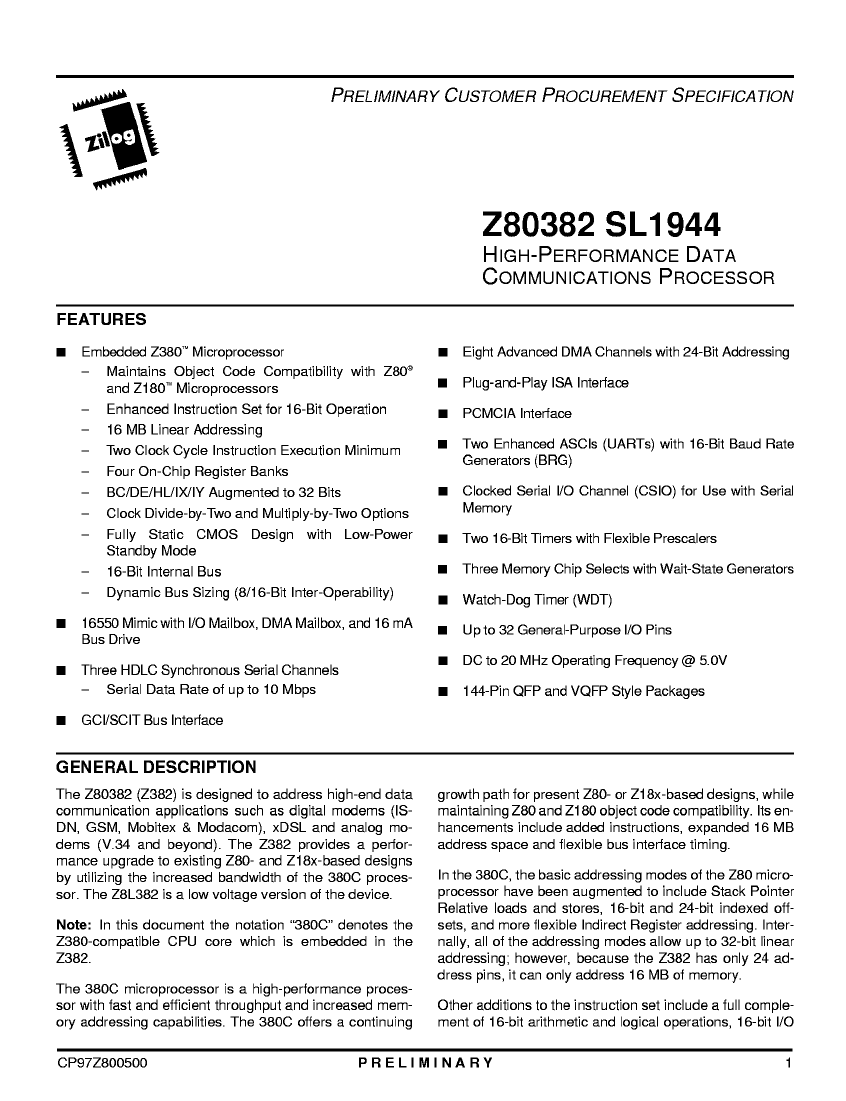

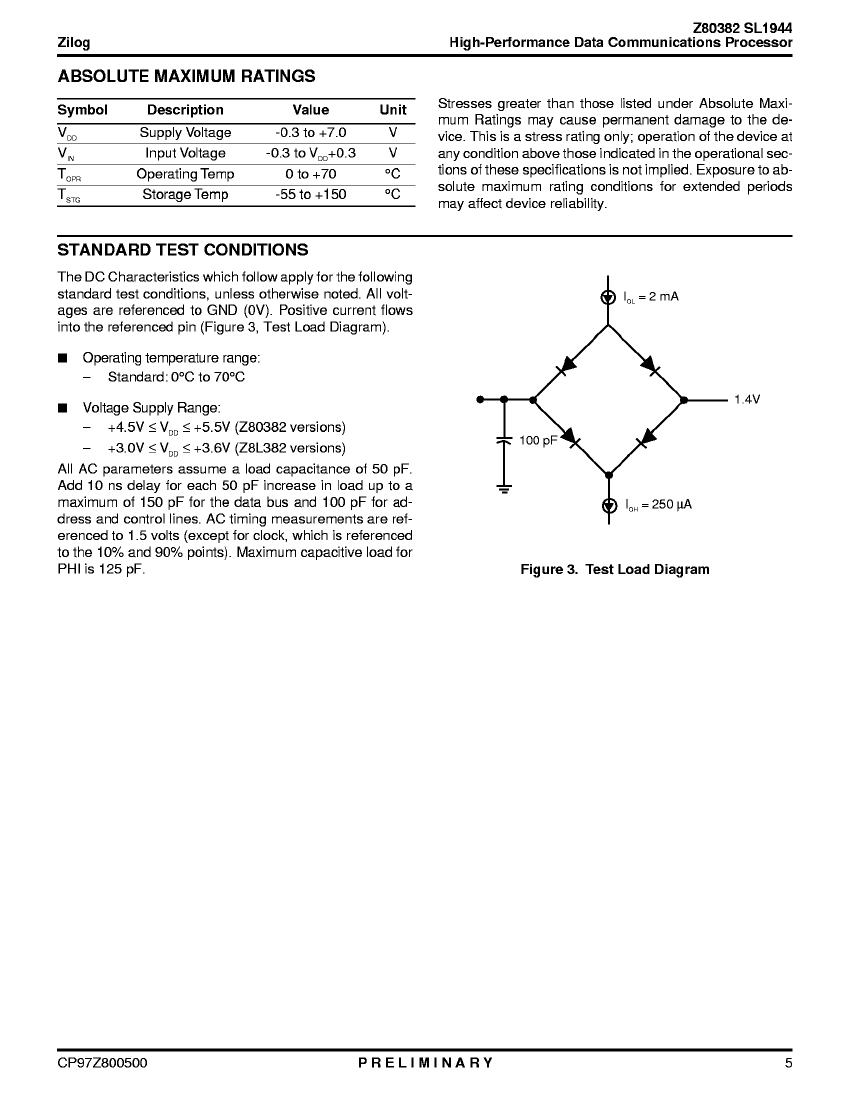

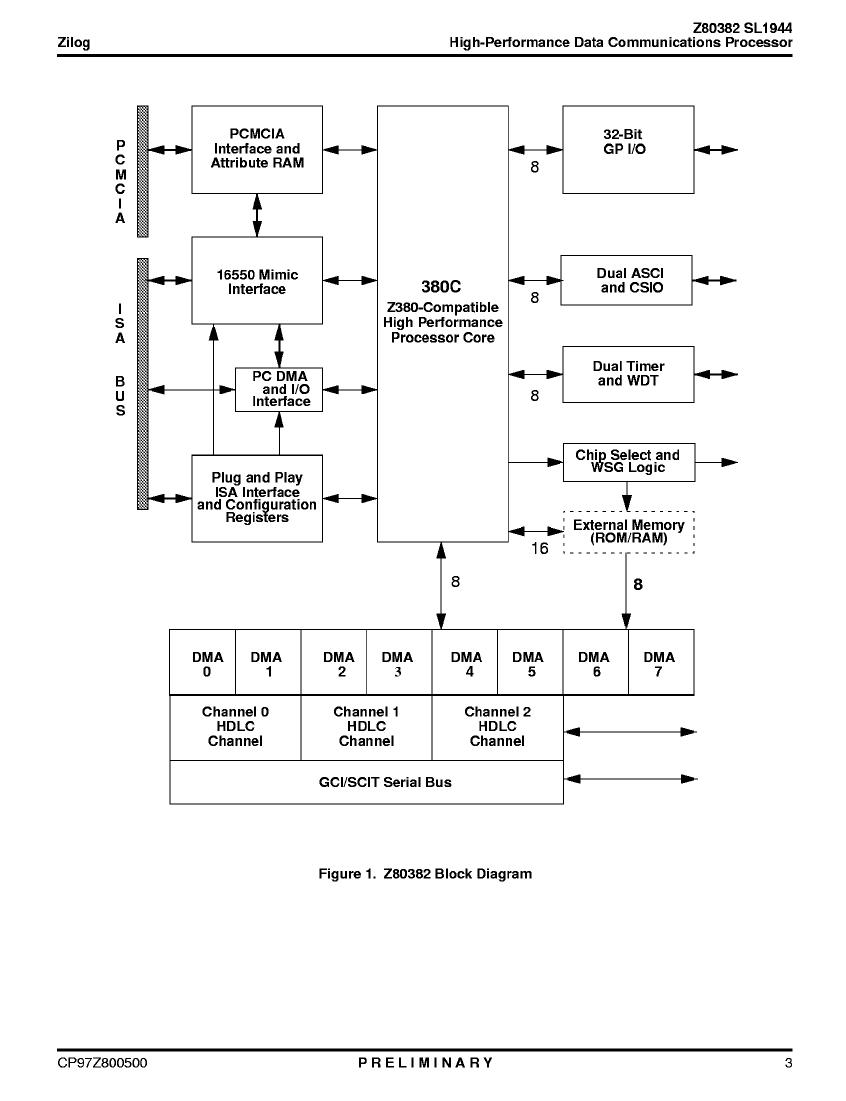

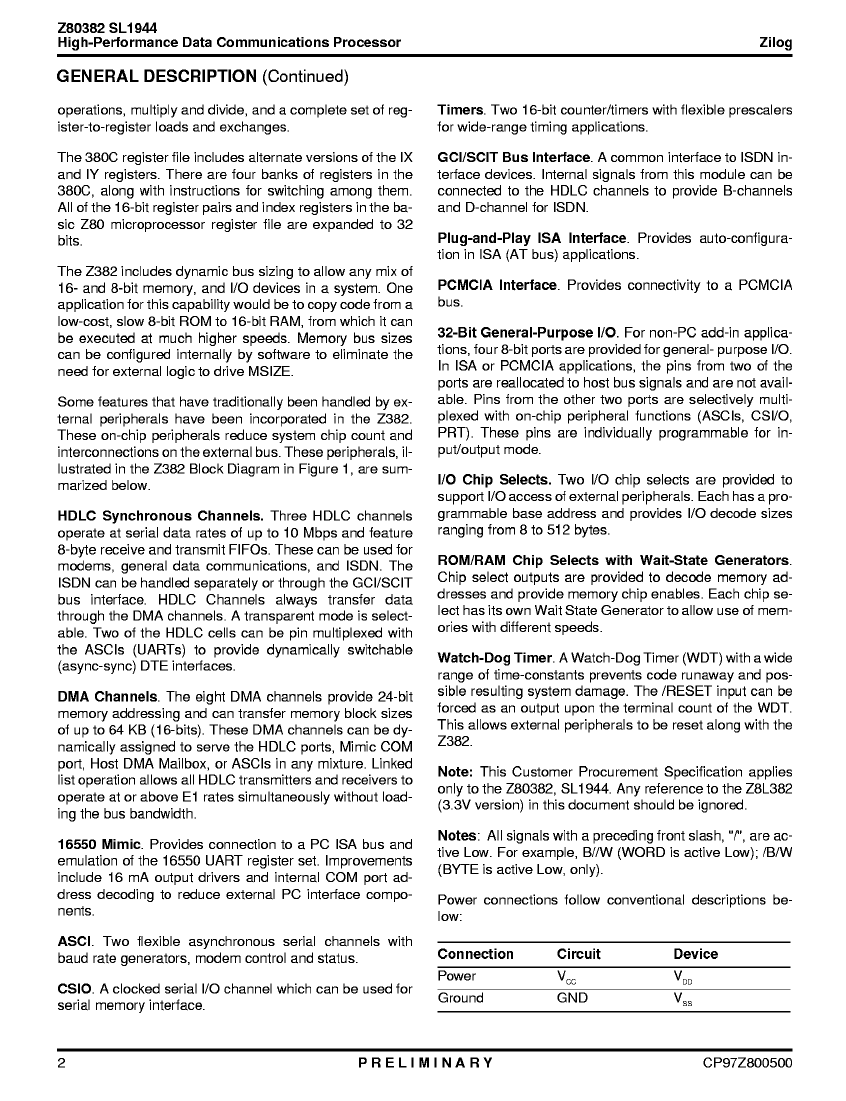

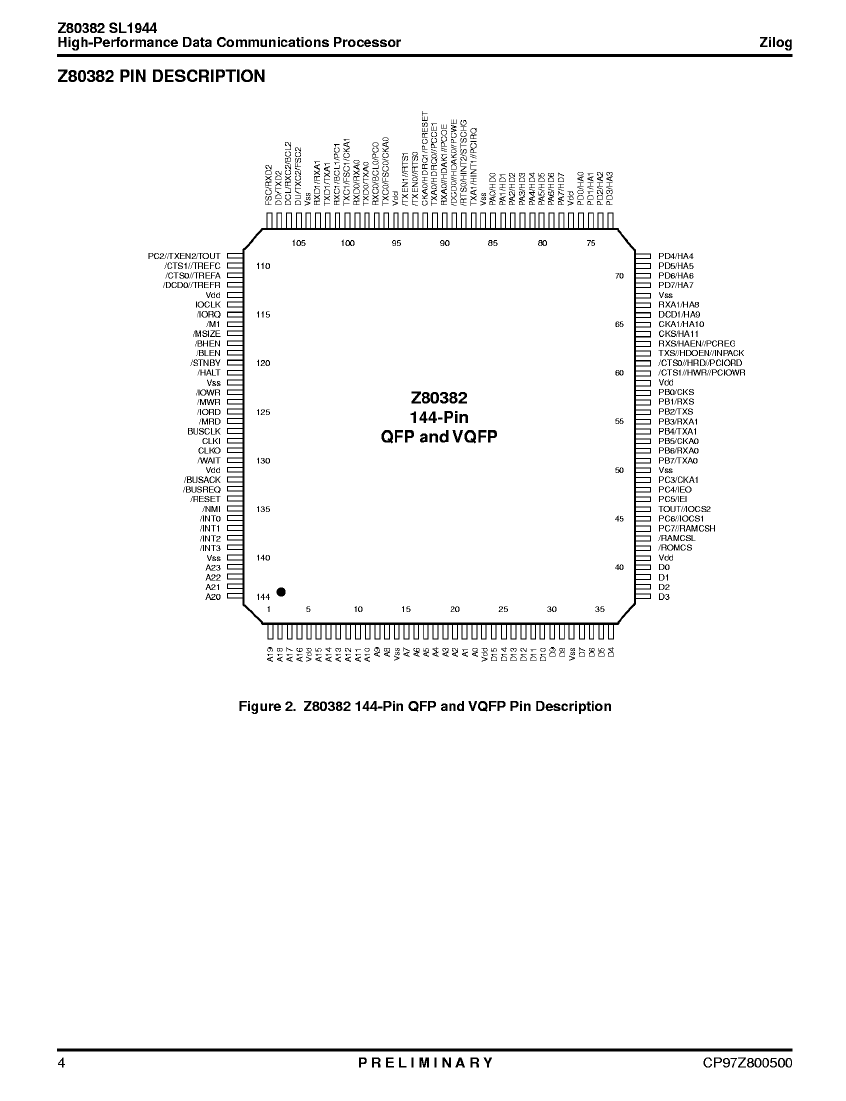

Preview

Download Datasheet

View All

Z8L38220ASC Related Products

	Z8L38220ASC	Z8L38220FSC
Description	Microprocessor, 16-Bit, 20MHz, CMOS, PQFP144, VQFP-144	Microprocessor, 16-Bit, 20MHz, CMOS, PQFP144, QFP-144
Is it Rohs certified?	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	QFP
package instruction	LFQFP, QFP144,.87SQ,20	QFP, QFP144,1.2SQ
Contacts	144	144
Reach Compliance Code	unknown	unknown
Address bus width	24	24
bit size	16	16
boundary scan	NO	NO
maximum clock frequency	20 MHz	20 MHz
External data bus width	16	16
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQFP-G144	S-PQFP-G144
JESD-609 code	e0	e0
length	20 mm	28 mm
low power mode	YES	YES
Number of terminals	144	144
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	QFP
Encapsulate equivalent code	QFP144,.87SQ,20	QFP144,1.2SQ
Package shape	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	4.07 mm
speed	20 MHz	20 MHz
Maximum slew rate	75 mA	75 mA
Maximum supply voltage	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.65 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	20 mm	28 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR
