HA9P2425-5 Overview

HA9P2425-5 amplifier basic information:

HA9P2425-5 is a SAMPLE AND HOLD CIRCUIT. Commonly used packaging methods are SOP, SOP14,.25

HA9P2425-5 amplifier core information:

The minimum operating temperature of HA9P2425-5 is 75 °C. Its peak reflow temperature is 240

The maximum slew rate of the HA9P2425-5 given by the manufacturer is 5.5 mA.

The nominal supply voltage of HA9P2425-5 is 15 V, and its corresponding nominal negative supply voltage is -15 V.

Related dimensions of HA9P2425-5:

The width of HA9P2425-5 is: 3.9 mm and the length is 8.65 mm. HA9P2425-5 has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14

HA9P2425-5 amplifier additional information:

Its temperature grade is: COMMERCIAL EXTENDED. HA9P2425-5 is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0. The packaging code of HA9P2425-5 is: SOP.

HA9P2425-5 packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The form of HA9P2425-5 package pins is: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.

HA9P2425-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum acquisition time	6 µs
Nominal acquisition time	3.2 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	+-15 V
Certification status	Not Qualified
Sample and hold/Track and hold	SAMPLE
Maximum seat height	1.75 mm
Maximum slew rate	5.5 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HA-2420

3.2µs Sample and Hold Amplifiers

E S I GN S

R NEW D NT

EN DED

CEM E

E C OM M

D RE PL A e n te r a t

OT R

OMMEN

u p p o rt C

NO R E C

hnical S ntersil.com/tsc

our Tec

contact ERSIL or www.i

1-888-IN

DATASHEET

FN2856

Rev.7.00

October 24, 2013

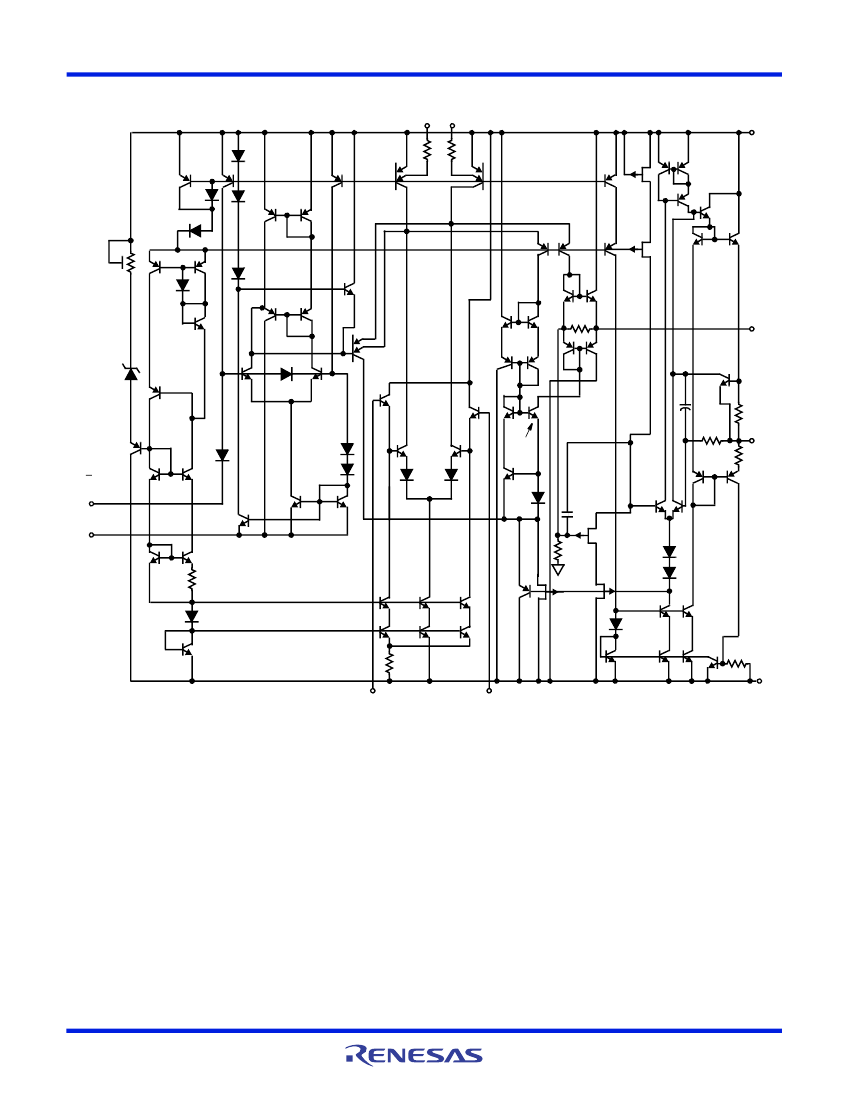

The HA-2420 is a monolithic circuit consisting of a high

performance operational amplifier with its output in series

with an ultra-low leakage analog switch and JFET input unity

gain amplifier.

With an external hold capacitor connected to the switch

output, a versatile, high performance sample-and-hold or

track-and-hold circuit is formed. When the switch is closed,

the device behaves as an operational amplifier, and any of

the standard op amp feedback networks may be connected

around the device to control gain, frequency response, etc.

When the switch is opened the output will remain at its last

level.

Performance as a sample-and-hold compares very favorably

with other monolithic, hybrid, modular, and discrete circuits.

Accuracy to better than 0.01% is achievable over the

temperature range. Fast acquisition is coupled with superior

droop characteristics, even at high temperatures. High slew

rate, wide bandwidth, and low acquisition time produce

excellent dynamic characteristics. The ability to operate at

gains greater than 1 frequently eliminates the need for

external scaling amplifiers.

The device may also be used as a versatile operational

amplifier with a gated output for applications such as analog

switches, peak holding circuits, etc. For more information,

please see Application Note

AN517.

Features

• Maximum Acquisition Time

- 10V Step to 0.1% . . . . . . . . . . . . . . . . . . . . . 4µs (Max)

- 10V Step to 0.01% . . . . . . . . . . . . . . . . . . . . 6µs (Max)

• Low Droop Rate (C

= 1000pF). . . . . . . . . . 5µV/ms (Typ)

• Gain Bandwidth Product . . . . . . . . . . . . . . . 2.5MHz (Typ)

• Low Effective Aperture Delay Time . . . . . . . . . 30ns (Typ)

• TTL Compatible Control Input

• ±12V to ±15V Operation

Applications

• 12-Bit Data Acquisition

• Digital to Analog Deglitcher

• Auto Zero Systems

• Peak Detector

• Gated Operational Amplifier

Pinout

HA-2420 (CERDIP)

TOP VIEW

-IN 1

+IN 2

14 S/H CONTROL

13 GND

12 NC

11 HOLD CAP.

10 NC

9 V+

8 NC

Ordering Information

PART NUMBER

HA1-2420-2

TEMP.

RANGE (°C)

-55 to +125

PACKAGE

14 Ld CERDIP

PKG.

DWG. #

F14.3

OFFSET ADJ. 3

OFFSET ADJ. 4

V- 5

NC 6

OUTPUT 7

FN2856 Rev.7.00

October 24, 2013

Page 1 of 11

HA9P2425-5 Related Products

	HA9P2425-5	8001601CA
Description	SAMPLE AND HOLD AMPLIFIER, 3.2us ACQUISITION TIME, PDSO14	SAMPLE AND HOLD AMPLIFIER, CDIP14
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP14,.25	DIP, DIP14,.3
Contacts	14	14
Reach Compliance Code	not_compliant	compliant
ECCN code	EAR99	EAR99
Maximum acquisition time	6 µs	6 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	10 V	10 V
Minimum analog input voltage	-10 V	-10 V
JESD-30 code	R-PDSO-G14	R-CDIP-T14
JESD-609 code	e0	e0
length	8.65 mm	19.5326 mm
Negative supply voltage upper limit	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	75 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Qualified
Sample and hold/Track and hold	SAMPLE	SAMPLE
Maximum seat height	1.75 mm	5.08 mm
Maximum slew rate	5.5 mA	12 mA
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	3.9 mm	7.62 mm
Base Number Matches	1	1
