EMI/RFI Non-Environmental Backshell with Strain Relief

Preview

Download Datasheet

View All

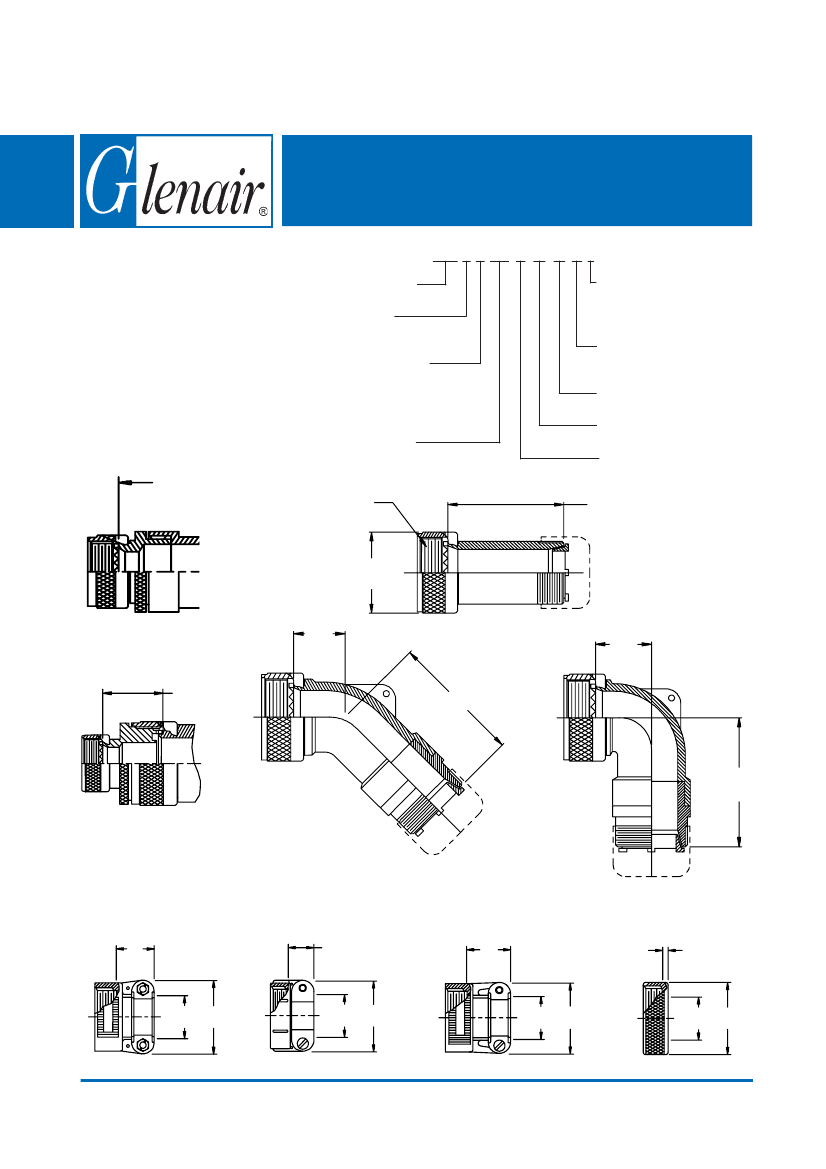

380-115

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type B - Rotatable Coupling - Low Profile

CONNECTOR

DESIGNATORS

380 F S 115 M 16 10 M 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Finish (Table II)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, D)

Cable Entry (Tables X, XI)

Shell Size (Table I)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE B INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Minimum Order Length 2.0 Inch A Thread

(See Note 4)

(Table I)

Length ± .060 (1.52)

Minimum Order Length 1.5 Inch

(See Note 4)

C Typ.

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

(Table III)

F (Table III)

(Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 20
