756-1105/0060-0100 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 756-1105/0060-0100

756-1105/0060-0100: DescriptionInterconnection Device; CategoryThe connector The connector; File Size146KB，2 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric Compare View All

756-1105/0060-0100 Overview

Interconnection Device

756-1105/0060-0100 Parametric

Parameter Name	Attribute value
Maker	WAGO
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

CANopen, DeviceNet Cable

for

1/2

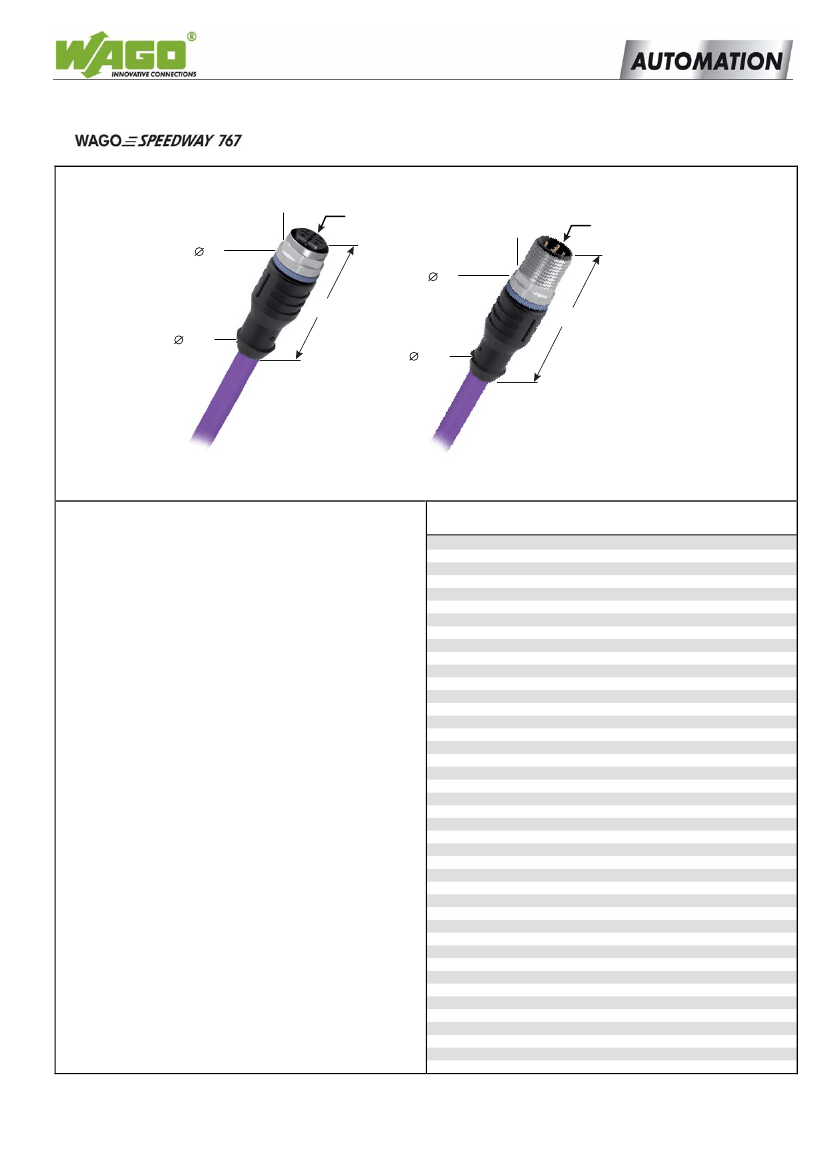

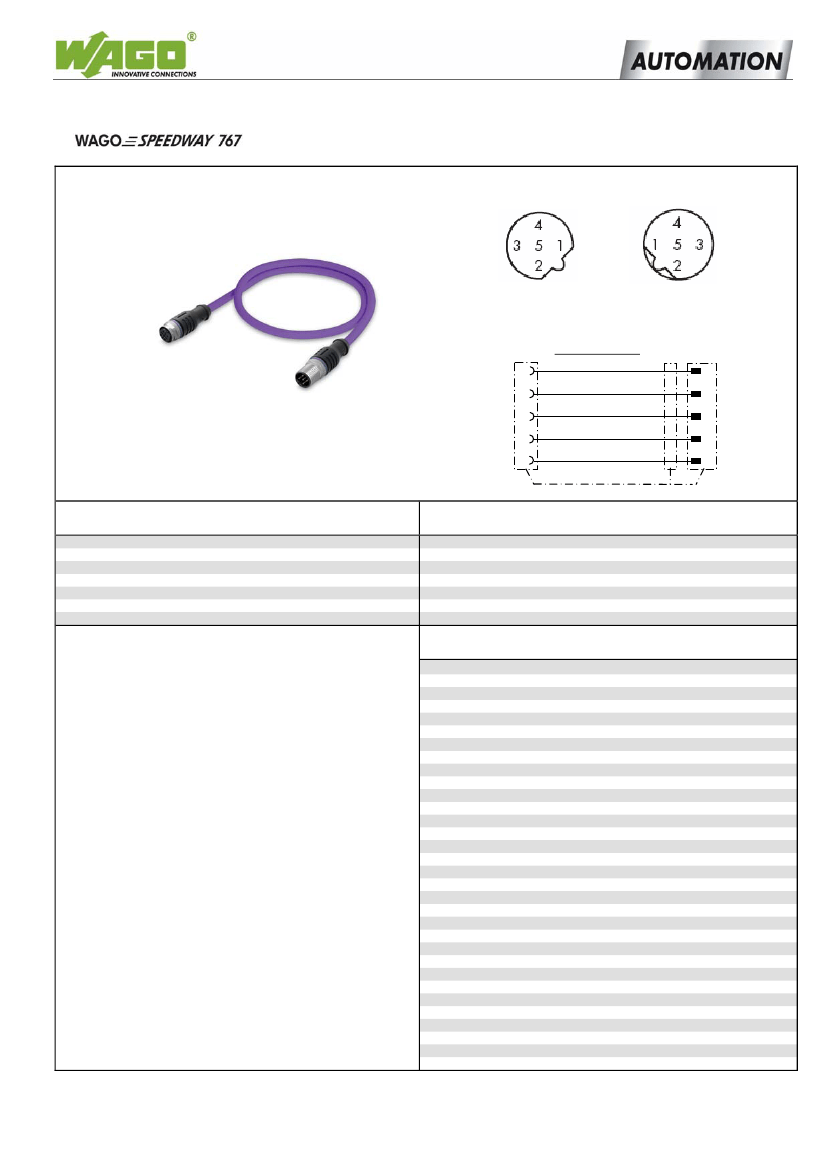

Data Sheet

M12 Socket

M12 Plug

Pin assignment

free

red

green

free

red

free

shielded

(

)

Description

CANopen, DeviceNet cable, with both ends of cable fitted, B coded

M12 socket, straight, M12 plug, straight, 2.0 m

M12 socket, straight, M12 plug, straight, 5.0 m

M12 socket, straight, M12 plug, straight, 10.0 m

M12 socket, straight, M12 plug, straight, 20.0 m

Special lengths on request

Item

no.

Pack. unit

pcs

756-1105/0060-0020

756-1105/0060-0050

756-1105/0060-0100

756-1105/0060-0200

Short description:



PUR, halogen-free

Suitable for drag chains

Free of silicon and CFC

Good resistance to microbes, hydrolysis, oil, ozone and

UV radiation. Good chemical resistance.

UL approved

Technical data

General

Operating voltage

Operating current

Rated surge voltage

Insulation resistance

Contact resistance

Resistance of conductor

Pollution degree

Degree of protection

Operating temperature

Drag chain suitability

Min. bending radius

Bending cycles

Max. acceleration

Max. traversing rate

Max. traverse path

Other characteristics

≤

60 V

4 A acc. to IEC 60512-3

1.5 kV acc. to IEC 61076-2-101

≥

1,6x10

Ωxkm

acc. to IEC60512-2

≤

10 mΩ acc. to IEC 61076-2-101

≤

Ω/km

3/2 acc. to IEC 60664-1

IP67 acc. to IEC 60529

-25 °C ... +60 °C (static and moving)

15 x cable Ø

≥

2 million

4 m/s

3 m/s

10 m horizontal

UV resistant acc. to

UL 1581 Sec. 1200

(720 h Xenon exposure)

02YH(ST)C11Y 1x2x0,65/2.56-150

LI KF 40 VI FRNC, shielded

Construction acc. to UL

File E119100 Vol.1 Sec.8 Page 1

Overlapped aluminum-laminated foil and

tinned copper braid,

80 % optical coverage

Bare copper wire (19 x 0.14 mm)

Halogen-free PE

Cable

Type code

Note

Overall shield

Conductor

Insulation

WAGO Kontakttechnik GmbH & Co.KG

Subject to design changes

30.08.2012 / d07561105_00600xx0_0en.doc

Postfach 2880 • D-32385 Minden

Hansastr. 27 • D-32423 Minden

Phone: 05 71 / 8 87-0

E-Mail:

Fax:

05 71 / 8 87-169 Web:

info@wago.com

http://www.wago.com
