HLE-139-2-G-DV-PE datasheet, PDF

Datasheet> All Categories > The connector> The connector> HLE-139-2-G-DV-PE

HLE-139-2-G-DV-PE: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size343KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HLE-139-2-G-DV-PE Overview

Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

HLE-139-2-G-DV-PE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HLE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	78
Base Number Matches	1

Preview

Download Datasheet

View All

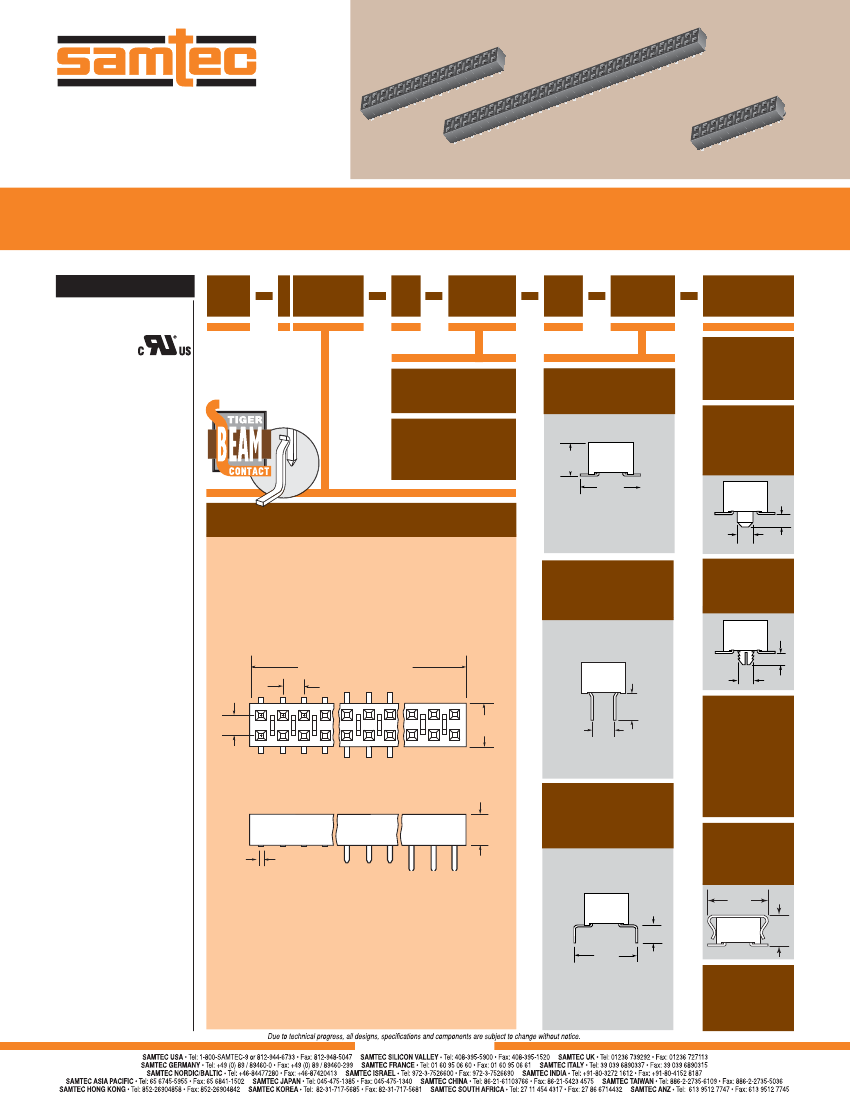

F-208

HLE–116–02–G–DV

HLE–110–02–G–DV–A

HLE–130–02–G–DV

.025" SOCKET

HLE SERIES

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?HLE

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

BeCu

Plating:

Au over 50µ"

(1,27µm) Ni

Current Rating:

2.5A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Insertion Depth:

(1,78mm) .070" to

(3,43mm) .135", pass-through,

or (2,59mm) .102" min for

bottom entry

Insertion Force:

(Single contact only)

2oz (0,56N) avg.

Withdrawal Force:

(Single contact only)

1.6oz (0,44N) avg.

RoHS Compliant:

Yes

HLE

NO.

PER PINS

ROW

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

Mates With:

TSW, MTSW, DW,

EW, ZW, TLW, TSM,

MTLW, HW

–BE

–G

= 10µ" (0,25µm) Gold

Leave blank for

Surface Mount

= Bottom Entry

(Requires Surface

Mount or –PE)

–S

= 30µ" (0,76µm) Gold

on contact,

Matte Tin on tail

(3,66)

.144

(6,60)

.260

–A

= Alignment Pin

(4 positions min.)

Metal or plastic at

Samtec discretion

(1,27)

.050

02 thru 50

(Requires –BE for Bottom Entry)

(1,60)

.063

DIA

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (02-20)

(0,15mm) .006" max (21-50)

–TE

= Through-Hole

Top Entry

–LC

= Locking Clip

(2 positions min.)

(1,27)

.050

No. of Positions x (2,54) .100

(2,54)

.100

(1,42)

.056

(3,05)

.120

(5,08)

.200

(2,54)

.100

–K

= (6,50mm) .256"

DIA Polyimide

Film Pick &

Place Pad

(3 positions min.)

Not available

with –TE or

–PE tail option

(2,54)

.100

–PE

(3,51)

.138

(0,51)

.020

= Through-hole

Pass Through Entry

–P

= Metal Pick &

Place Pad

(3 positions min.)

(7,11) .280

(5,71) .225

–PE

–TE

(2,30)

.090

(7,62)

.300

(Requires –BE for Bottom Entry)

(3,86)

.152

–TR

= Tape & Reel

Packaging

(29 positions max.)

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

WWW.SAMTEC.COM
