FQA40MHZAAD10030 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FQA40MHZAAD10030

Preview

FQA40MHZAAD10030: DescriptionParallel - 3Rd Overtone Quartz Crystal, 40MHz Nom, ULTRA MINIATURE, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size230KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FQA40MHZAAD10030 Overview

Parallel - 3Rd Overtone Quartz Crystal, 40MHz Nom, ULTRA MINIATURE, CERAMIC, SMD, 2 PIN

FQA40MHZAAD10030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ULTRA MINIATURE, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	100 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)
Series resistance	70 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

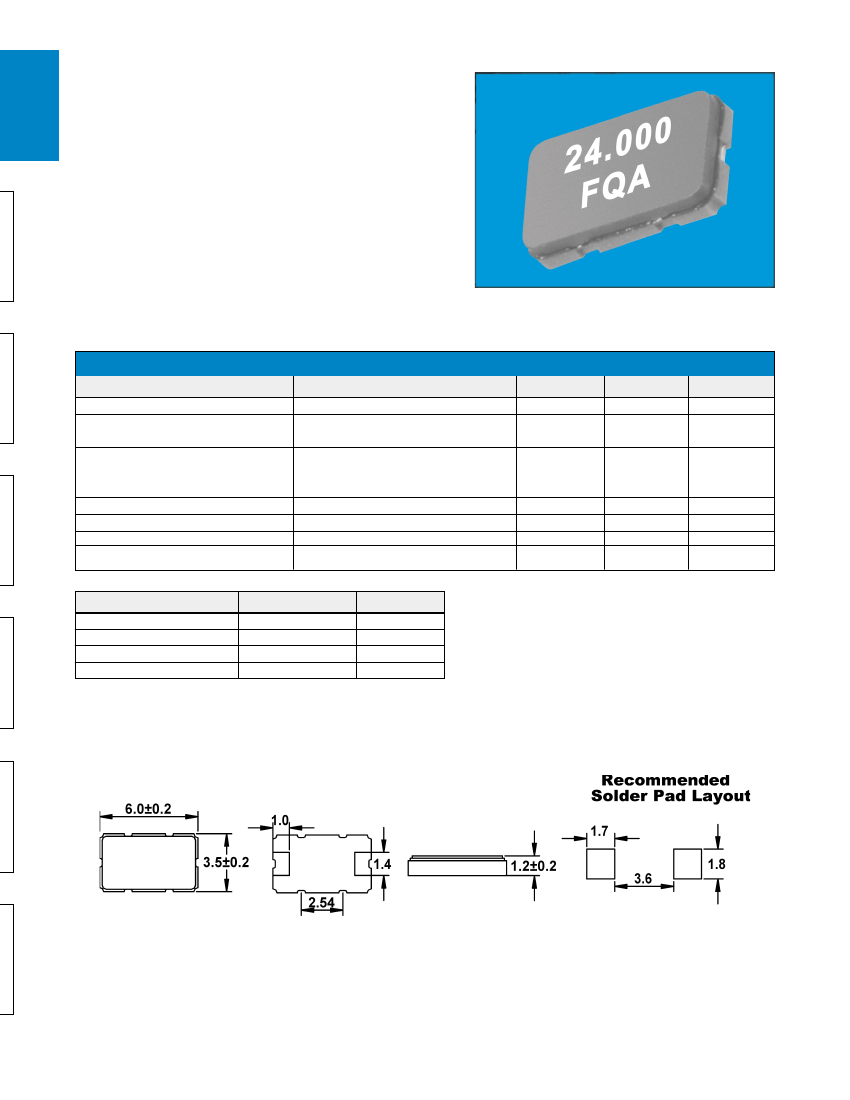

ULTRA MINIATURE CERAMIC SMD CRYSTAL

CRYSTALS

FQA

The FQA provides an ultra miniature crystal in a low cost, resin

sealed ceramic package. A fundamental mode up to 40MHz allows

ease of circuit design.

FEATURES

Low Cost

Ultra Miniature Package

1.4mm Height Max

Fundamental to 40MHz

Tape and Reel (2,000 pcs. STD)

Resin Sealed

• FQA STANDARD SPECIFICATIONS *

PARAMETERS

Frequency Range

Frequency Stability

Temperature Range

Operating

Storage

Shunt Capacitance

Load Capacitance

Drive Level

Aging

(T

OPR

)

(T

STG

)

(Co)

(C

L

)

CONDITIONS

Ta = -10ºC ~ +60ºC

Inclusive of Tolerance at 25ºC

MIN

11.0592

-100

-10

-30

Customer Specified

Ta = 25ºC; per year

Operating Mode

Fundamental

3rd OT

Max ESR

W

80

60

40

70

10.0

-5.0

MAX

67.000

+100

+60

+85

7.0

Series

0.1

+5.0

UNITS

MHz

PPM

ºC

pF

mW

PPM

Frequency Range (MHz)

11.0592 ~ 12.000

12.000+ ~ 16.000

16.000+ ~ 40.000

40.000+ ~ 67.000

* Other stabilities & operating temperature ranges available.

Consult Fox Customer Service for specific requirements, or use crystal order form on page 6.

All specifications subject to change without notice. Rev. 05/03/00

All dimensions are in millimeters.

See page 31 for tape and reel specifications.

24

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com
