IFRM18N13T1/S14L datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> IFRM18N13T1/S14L

IFRM18N13T1/S14L: DescriptionInductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical; CategoryThe sensor Sensor/transducer; File Size73KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

IFRM18N13T1/S14L Overview

Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical

IFRM18N13T1/S14L Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED
body height	60 mm
Body length or diameter	18 mm
shell	BRASS NICKEL PLATED
Maximum measuring range (mm)	12 mm
Minimum measuring range (mm)	12 mm
Maximum working current	10 mA
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Output interface type	3-WIRE INTERFACE
Output range	200mA
Output type	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensors

Inductive proximity switch

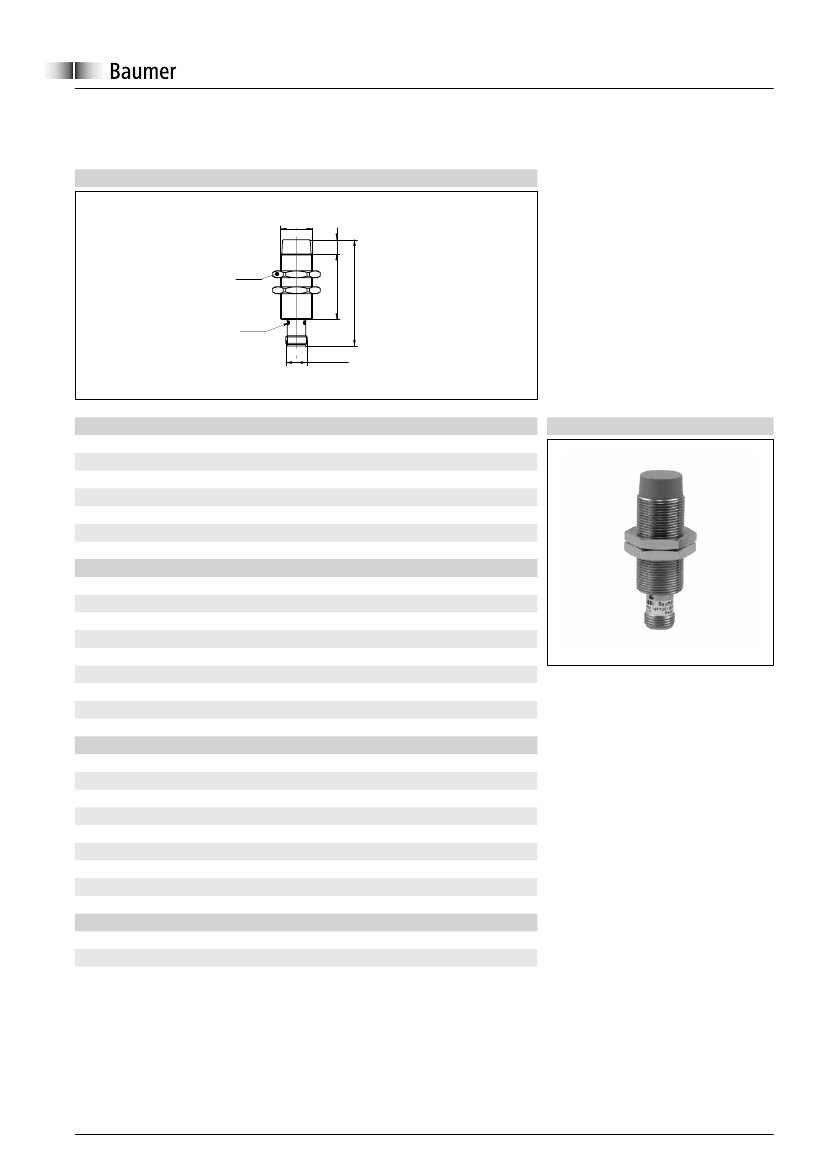

sample drawing

IFRM 18 (Sn = 12 mm, Outdoor)

M18 x 1

SW 24

3xLED

M12 x 1

general data

mounting type

special type

nominal sensing distance Sn

hysteresis

output indicator

non-flush

Outdoor design

12 mm

2 ... 15 % of Sr

LED red

sample picture

electrical data

switching frequency

voltage supply range +Vs

current consumption max. (no load)

voltage drop Vd

output current

short circuit protection

reverse polarity protection

< 500 Hz

10 ... 30 VDC

10 mA

< 2 VDC

< 200 mA

yes

mechanical data

type

material (sensing face)

housing material

dimension

cable PUR 3 x 0,25, 2 m

housing length

connector M12

housing length

ambient conditions

operating temperature

protection class

-40 ... +80 °C

IP 67

60 mm

50 mm

cylindrical threaded

PBT

brass nickel plated

18 mm

www.baumer.com

9/1/2014

IFRM18N13T1/S14L Related Products

	IFRM18N13T1/S14L	IFRM18P33T1/S14L	IFRM18N13T1/PL	IFRM18P13T1/PL	IFRM18N33T1/PL	IFRM18N33T1/S14L
Description	Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical	Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical	Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical	Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical	Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical	Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION, UNSHIELDED
body height	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Body length or diameter	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
shell	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED
Maximum measuring range (mm)	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm
Minimum measuring range (mm)	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm
Maximum working current	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output range	200mA	200mA	200mA	200mA	200mA	200mA
Output type	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Maximum supply voltage	30 V	30 V	30 V	30 V	30 V	30 V
Minimum supply voltage	10 V	10 V	10 V	10 V	10 V	10 V
Termination type	CONNECTOR	CONNECTOR	CABLE	CABLE	CABLE	CONNECTOR
Maker	Baumer Electric Ag	-	-	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag
Output interface type	3-WIRE INTERFACE	3-WIRE INTERFACE	-	3-WIRE INTERFACE	3-WIRE INTERFACE	3-WIRE INTERFACE
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	-	-
