IFRM18N17G3/L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> IFRM18N17G3/L

IFRM18N17G3/L: DescriptionInductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical; CategoryThe sensor Sensor/transducer; File Size71KB，1 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

IFRM18N17G3/L Overview

Inductive Sensor, 12mm Min, 12mm Max, 200mA, Cylindrical

IFRM18N17G3/L Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body height	40 mm
Body length or diameter	18 mm
shell	BRASS NICKEL PLATED
Maximum measuring range (mm)	12 mm
Minimum measuring range (mm)	12 mm
Maximum working current	24 mA
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Output interface type	3-WIRE INTERFACE
Output range	200mA
Output type	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	12 V
Termination type	CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensors

Inductive proximity switch

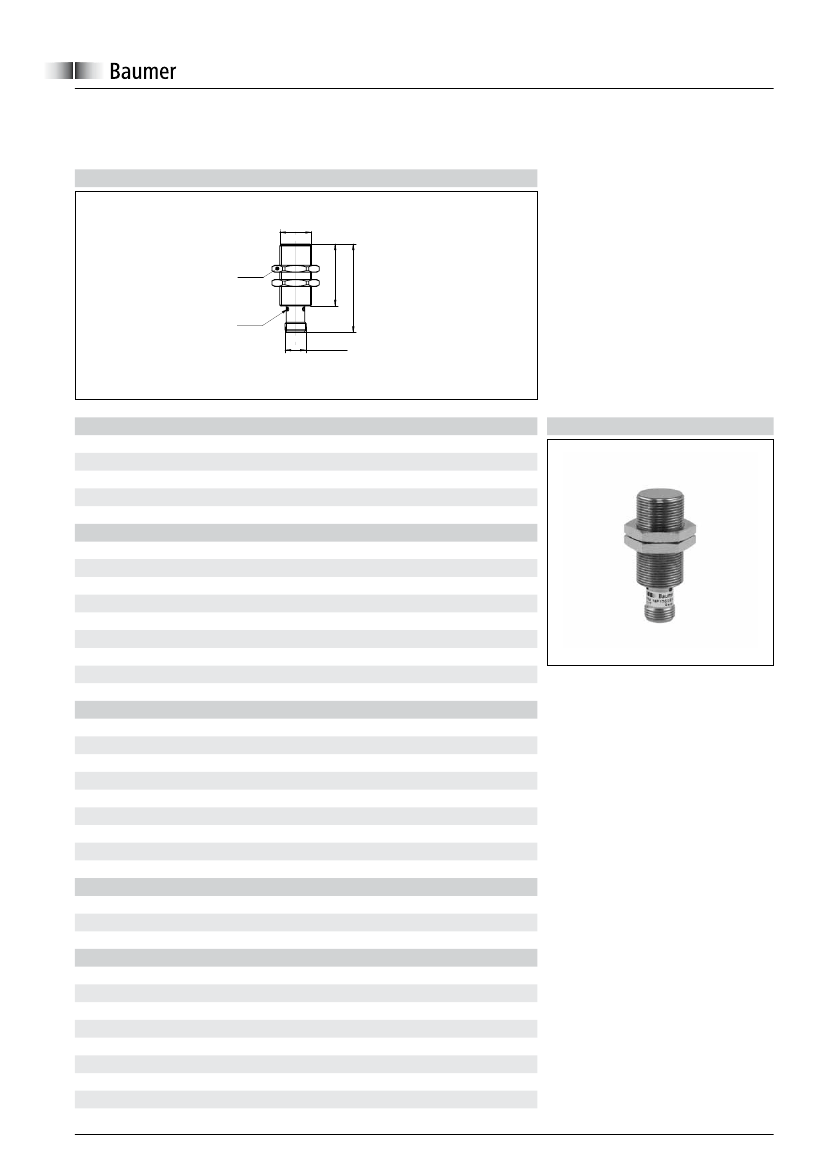

sample drawing

IFRM 18 (Sn = 12 mm, short)

M18 x 1

M12 x 1

S W 24

3xLED

general data

mounting type

special type

nominal sensing distance Sn

hysteresis

electrical data

switching frequency

voltage supply range +Vs

current consumption max. (no load)

voltage drop Vd

output current

short circuit protection

reverse polarity protection

< 400 Hz

12 ... 30 VDC

24 mA

< 2 VDC

< 200 mA

yes

quasi-flush

enhanced distance (GammaProx)

12 mm

2 ... 25 % of Sr

sample picture

mechanical data

type

material (sensing face)

housing material

dimension

cable, 2 m

housing length

connector M12

housing length

ambient conditions

operating temperature

protection class

order reference

IFRM 18N17G3/L

IFRM 18N17G3/S14L

IFRM 18N37G3/L

IFRM 18N37G3/S14L

IFRM 18P17G3/L

IFRM 18P17G3/S14L

IFRM 18P37G3/L

IFRM 18P37G3/S14L

connection types

cable, 2 m

connector M12

cable, 2 m

connector M12

cable, 2 m

connector M12

cable, 2 m

connector M12

-25 ... +75 °C

IP 67

output circuit

NPN make function (NO)

NPN break function (NC)

PNP make function (NO)

PNP break function (NC)

output indicator

LED red

3 port LED red

LED red

3 port LED red

LED red

3 port LED red

LED red

3 port LED red

50 mm

40 mm

cylindrical threaded

PBT

brass nickel plated

18 mm

www.baumer.com

8/1/2014
