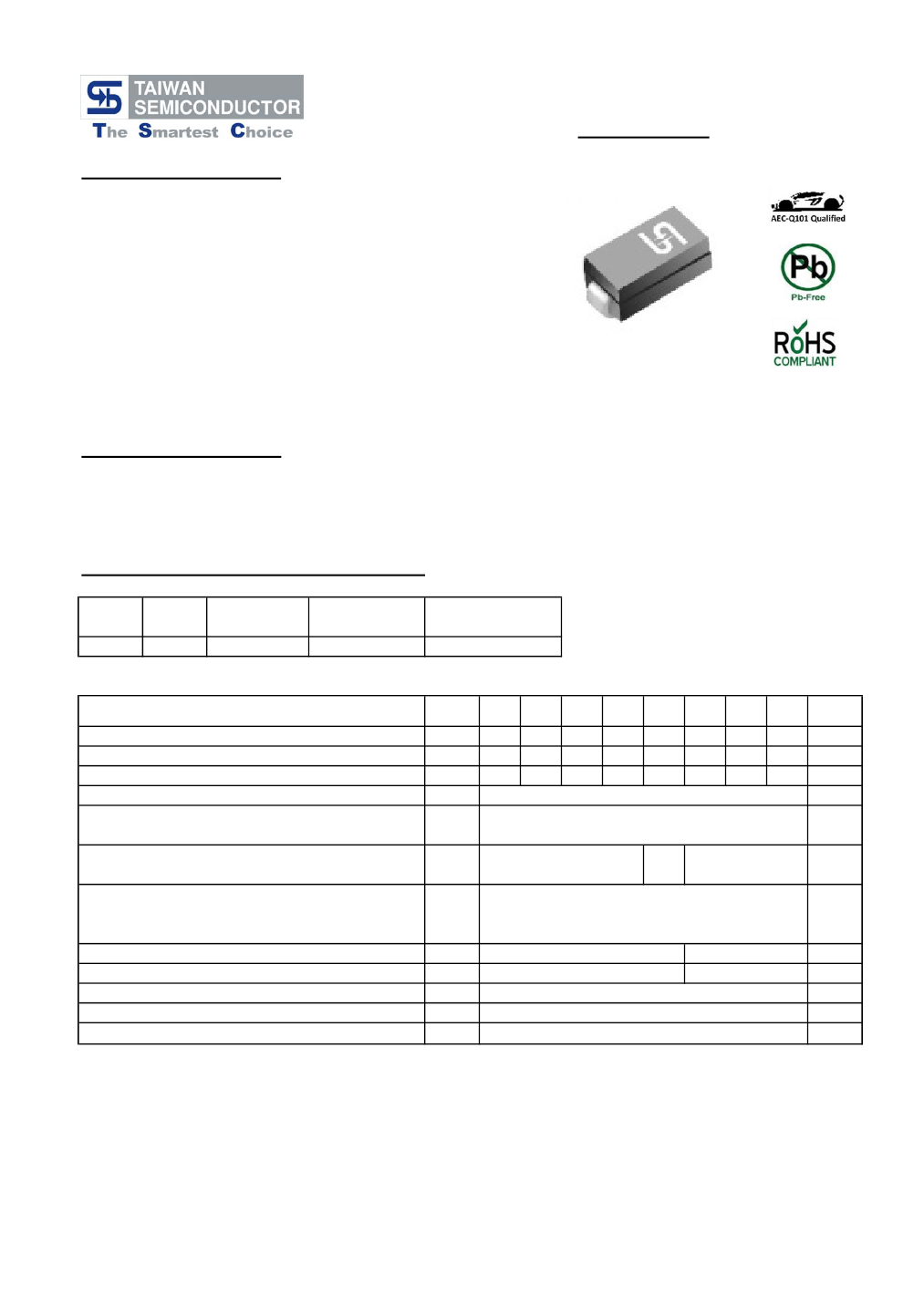

HS1A - HS1M
1.0AMP High Efficient Surface Mount Rectifiers
SMA/DO-214AC
Features
Glass passivated junction chip.
For surface mounted application
Low forward voltage drop
Low profile package
Built-in stain relief, ideal for automatic
placement
Fast switching for high efficiency
High temperature soldering:
260℃/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Green compound with suffix "G" on packing
code & prefix "G" on datecode

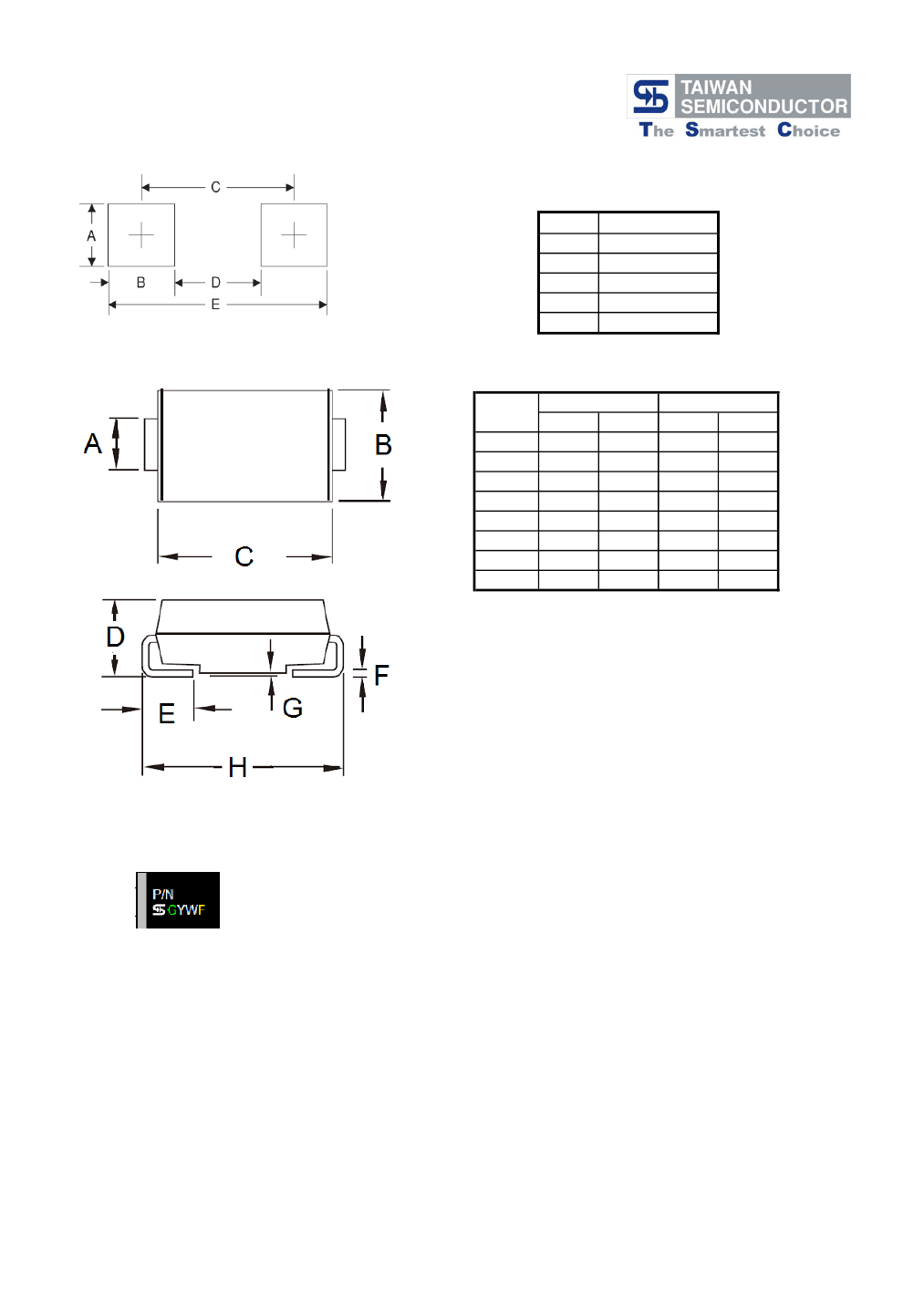

Mechanical Data
Cases: Molded plastic
Terminal: Pure tin plated, lead free
Polarity: Indicated by cathode band

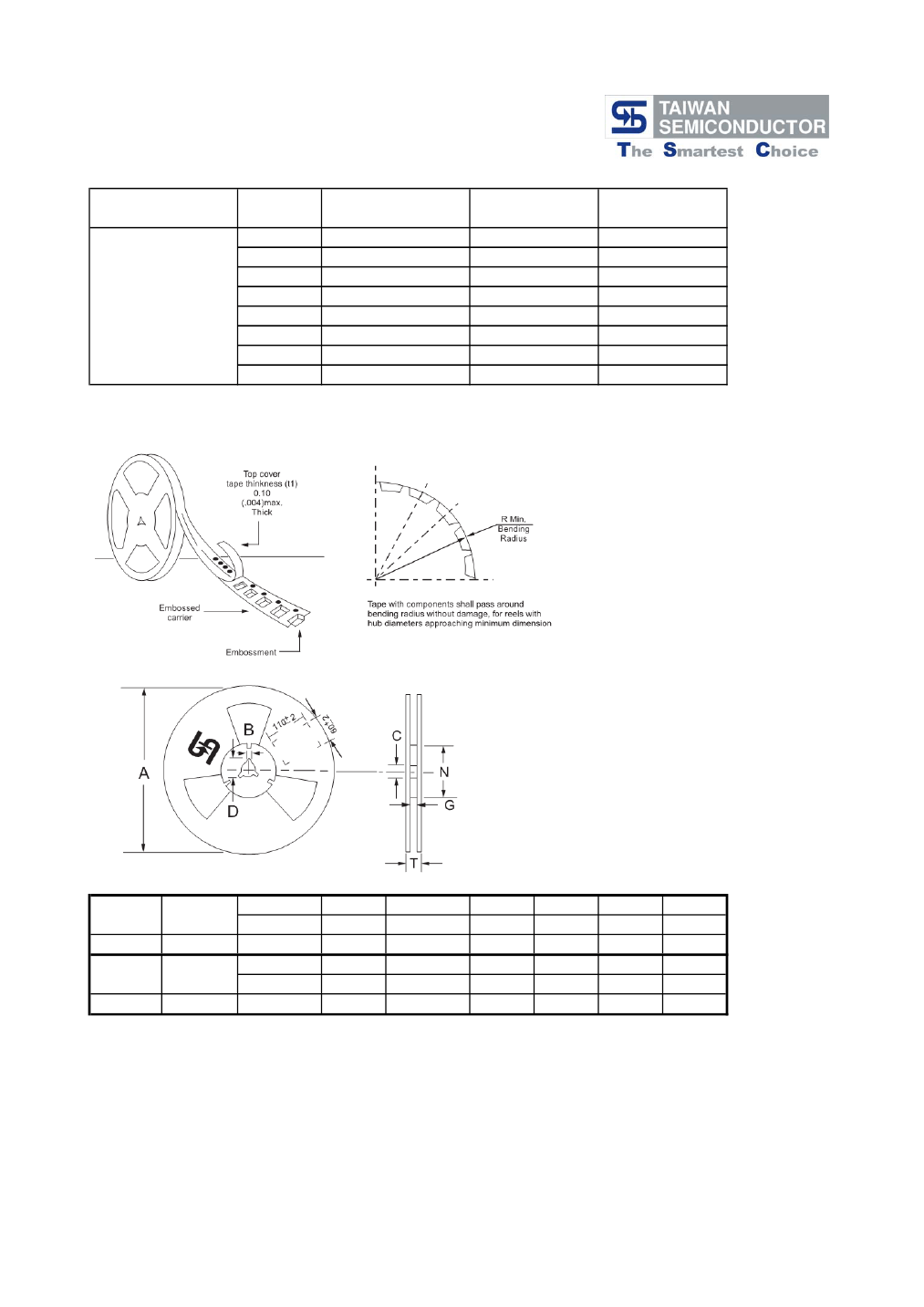

Packing: 12mm tape per EIA STD RS-481
Weight: 0.064 grams
Ordering Information (example)
Part No.
HS1A
Package
SMA
Packing
1.8K / 7" REEL
Packing code
R3
Packing code
(Green)
R3G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse
Current at Rated DC
Blocking Voltage
@ T
A
=25
℃
@ T
A
=100
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
HS
1A
50
35
50
HS
1B
100
70
100
HS
1D
200
140
200
HS
1F
300
210
300
1
30
HS
1G
400
280
400
HS
1J
600
420
600
HS
1K
800
560
800
HS
1M
1000
700
1000
Units
V
V
V
A
A
1.0
5
1.3
1.7
V
I
R
Trr
Cj
R
θJA
T
J
T
STG
50
20
50
150
75
15
70
- 55 to + 150
- 55 to + 150
O
uA
nS
pF
C/W
O
O
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0Volts.
Version:H13

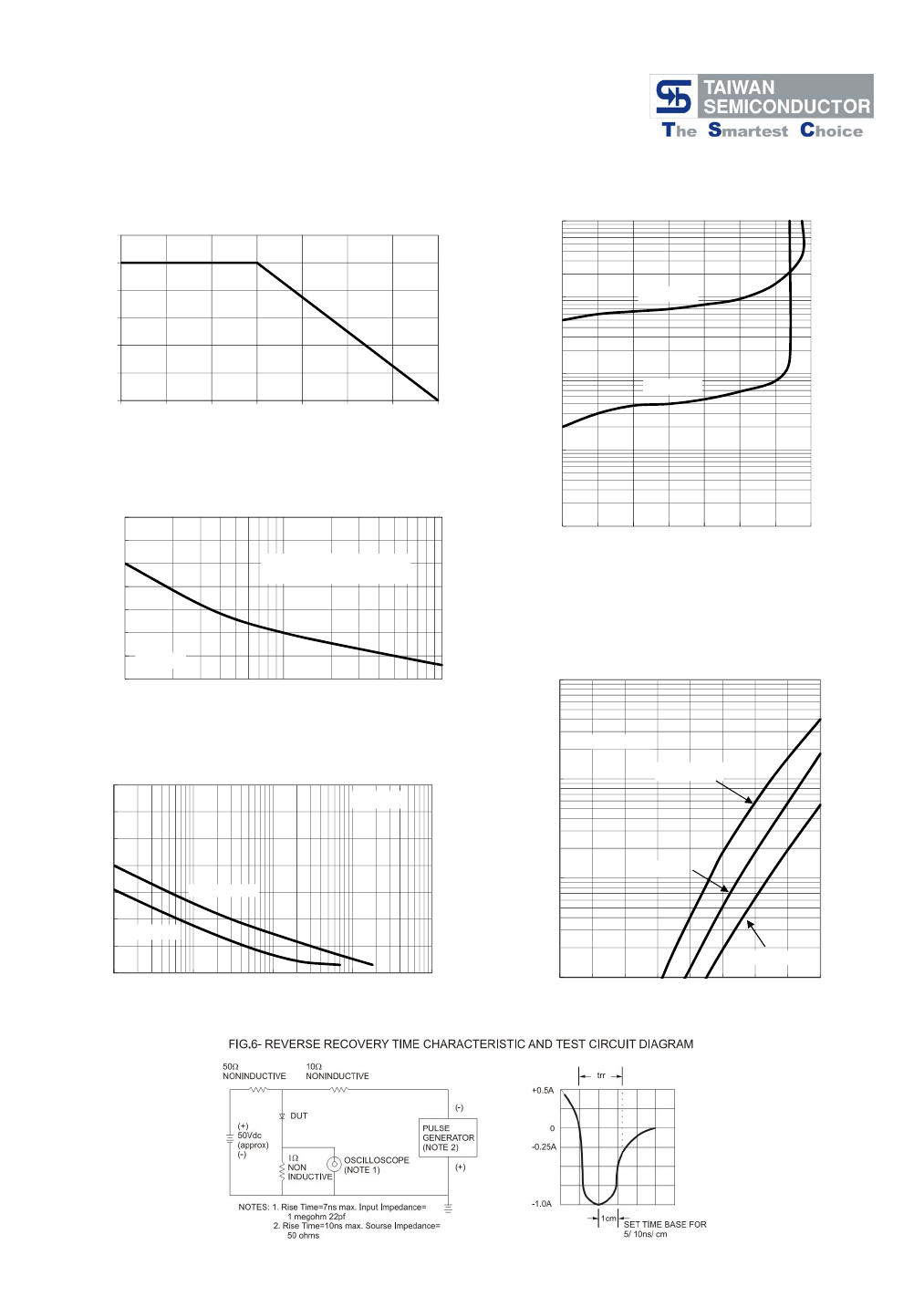

RATINGS AND CHARACTERISTIC CURVES (HS1A THRU HS1M)
FIG.1- MAXIMUM AVERAGE FORWARD CURRENT
DERATING
1.2
AVERAGE FORWARD CURRENT (A)
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
1
0.8
0.6
0.4
0.2
0
80
90
100
110
120
130
140
150
LEAD TEMPERATURE (
o
C)
INSTANTANEOUS REVERSE CURRENT (uA)
100
TA=125℃
10
TA=25℃
1
PEAK FORWARD SURGE URRENT (A)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
40
35
30
25
20
15
10
5
1
10
100
TA=25℃
8.3mS Single Half Sine Wave
JEDEC Method
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
(%)
FIG. 5- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
NUMBER OF CYCLES AT 60 Hz
INSTANTANEOUS FORWARD CURRENT (A)
TA=25℃
10
HS1A-HS1D
FIG. 4- TYPICAL JUNCTION CAPACITANCE
70
JUNCTION CAPACITANCE (pF)
60
50
40
30
20
10
0
0.1
1
10
REVERSE VOLTAGE (V)
100
1000
HS1J-HS1M
HS1A-HS1G
TA=25℃
1
HS1G
HS1J-HS1M
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
Version:H13
