IFRM04P15A1/KS35PL datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> IFRM04P15A1/KS35PL

IFRM04P15A1/KS35PL: DescriptionInductive Sensor, 1mm Min, 1mm Max, 100mA, Cylindrical; CategoryThe sensor Sensor/transducer; File Size69KB，1 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric View All

IFRM04P15A1/KS35PL Overview

Inductive Sensor, 1mm Min, 1mm Max, 100mA, Cylindrical

IFRM04P15A1/KS35PL Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHIELDED, SHORT CIRCUIT PROTECTION
body height	25 mm
Body length or diameter	4 mm
shell	STAINLESS STEEL
Maximum measuring range (mm)	1 mm
Minimum measuring range (mm)	1 mm
Maximum working current	12 mA
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Output interface type	3-WIRE INTERFACE
Output range	100mA
Output type	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensors

Inductive proximity switch

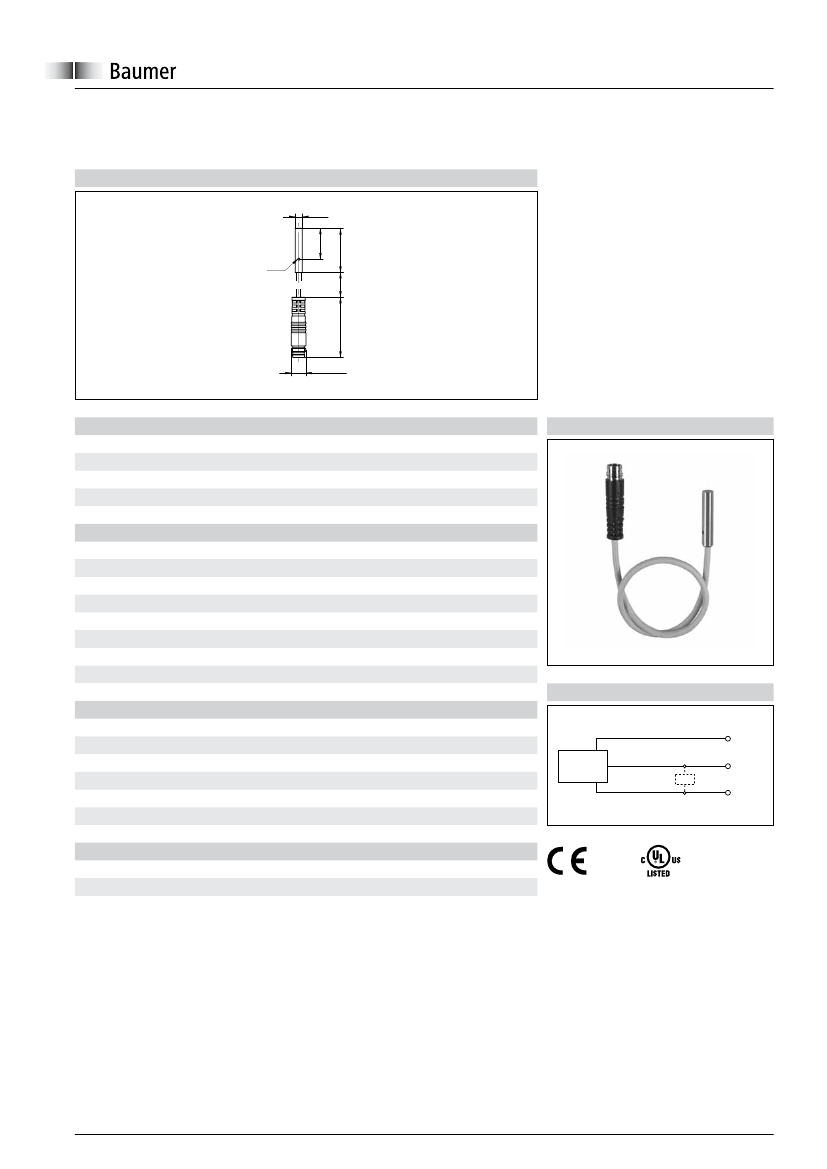

dimension drawing

ø 4

17,5

IFRM 04P15A1/KS35PL

LED

M8 x 1

standard cable length 200 mm (L)

general data

mounting type

nominal sensing distance Sn

hysteresis

output indicator

electrical data

switching frequency

voltage supply range +Vs

current consumption max. (no load)

output circuit

voltage drop Vd

output current

short circuit protection

reverse polarity protection

mechanical data

type

material (sensing face)

housing material

dimension

housing length

connection types

ambient conditions

operating temperature

protection class

-25 ... +75 °C

IP 67

cylindrical smooth

LCP

stainless steel

4 mm

25 mm

flylead connector M8

< 5 kHz

10 ... 30 VDC

12 mA

PNP make function (NO)

< 2 VDC

< 100 mA

yes

flush

1 mm

2 ... 20 % of Sr

LED red

ca. 34


connection diagram

BN (1)

output

PNP

BK (4)

BU (3)

www.baumer.com

2/10/2013
