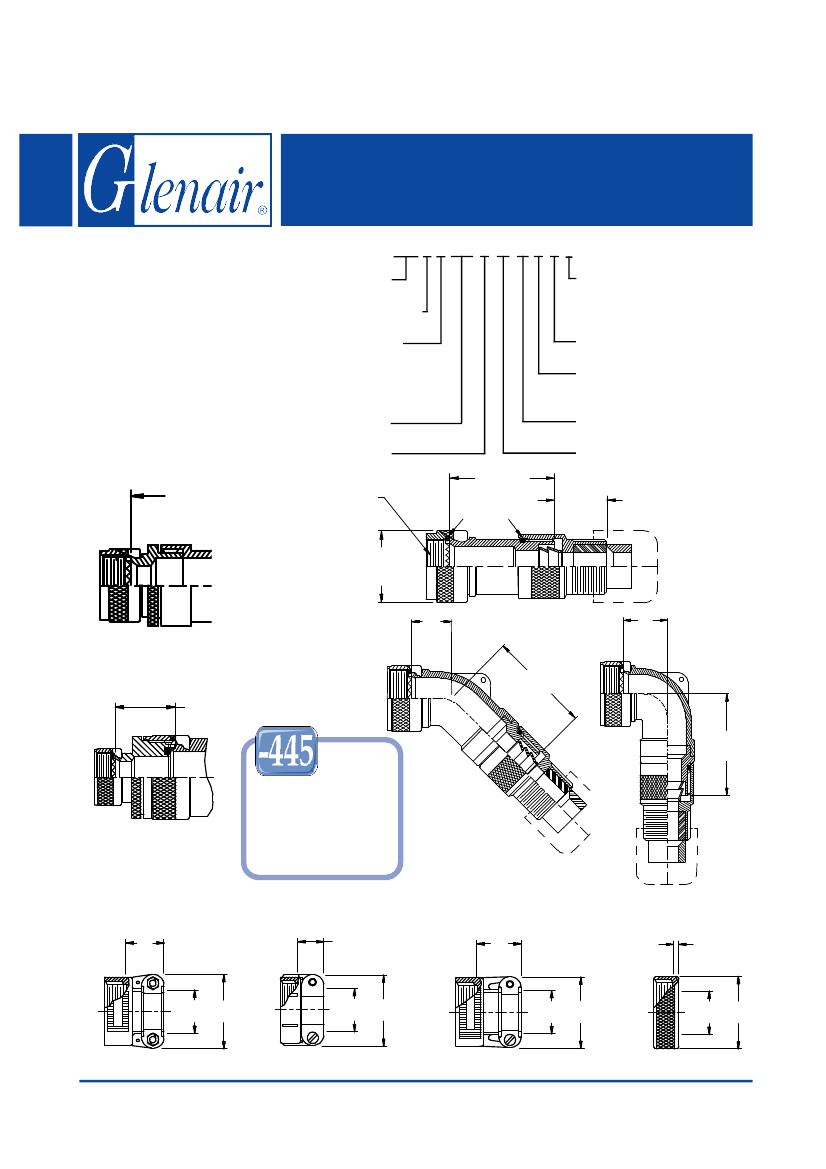

390-056
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type E - Rotatable Coupling - Low Profile
39
CONNECTOR
DESIGNATORS
390 F S 056 M 16 10 D M 6
Product Series
Connector Designator
Angle and Profile
A = 90
B = 45
S = Straight
Basic Part No.
Finish (Table II)
Length *
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (H, A, M, D)
Termination (Note 6)
D = 2 Rings, T = 3 Rings
Cable Entry (Tables X, XI)
Shell Size (Table I)
1.281
(32.5)
Ref. Typ.
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE E INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
A Thread
Minimum Order Length 2.0 Inch (Table I)
(See Note 4)
C Typ.
(Table I)
O-Rings
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
Now Available
with the NESTOR
E
(Table
III)
F (Table III)
G
(Table
III)
H
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 46
with Strain Relief
Type E - Rotatable Coupling - Low Profile
TABLE III: ELBOW DIMENSIONS
Shell Size
E
Conn. Desig.
A-F-L-S H
Max
08
09
.457 (11.6)
10
11
.520 (13.2)
12
13
.582 (14.8)
15
14
.645 (16.4)
16
17
.738 (18.7)
18
19
.926 (23.5)
20
21
.926 (23.5)
23 1.020 (25.9)
22
24
25 1.020 (25.9)
28
1.145 (29.1)
32
1.207 (30.7)
36
1.238 (31.4)
F
Max
1.760 (44.7)
1.920 (48.8)
1.990 (50.5)
2.144 (54.5)
2.254 (57.3)
2.444 (62.1)
2.444 (62.1)
2.657 (67.5)
2.657 (67.5)
2.690 (68.3)
2.790 (70.9)
2.930 (74.4)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.880 (47.8)
1.990 (50.5)
2.020 (51.3)
2.154 (54.7)
2.244 (57.0)
2.414 (61.3)
2.414 (61.3)
2.587 (65.7)
2.587 (65.7)
2.740 (69.6)
2.990 (75.9)
3.040 (77.2)
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions
E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter
lengths on straight backshells.
5. Interface O-Ring not supplied
with connector designator A.
6. Designate Symbol T for 3 ring
termination of individual and
overall braid. Designate D for
standard 2 ring termination of
individual or overall braid.
TABLE X: CABLE ENTRY
Dash
T
V
Cable Range
No.
Max
Max
Min
Max
04
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
08
.780 (19.8) 1.332 (33.8)
.387 (9.8) .562 (14.3)
10
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
16
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE XI: CABLE ENTRY
Dash
W
X
Y
Z
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
* Not available in Style M clamp.
Cable Range
Min **
Max
.156 (4.0) .250 (6.4)
.188 (4.8) .312 (7.9)
.281 (7.1) .438 (11.1)
.387 (9.8) .562 (14.3)
.375 (9.5) .625 (15.9)
.438 (11.1) .750 (19.1)
.625 (15.9)
.938 (23.8)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1.437 (36.5) 1.875 (47.6)
1.875 (47.6) 2.375 (60.3)
** Not Applicable Style D
