IDT54FCT863AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> IDT54FCT863AL

IDT54FCT863AL: DescriptionBus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CQCC28; Categorylogic logic; File Size325KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54FCT863AL Overview

Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CQCC28

IDT54FCT863AL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
MaximumI(ol)	0.032 A
Number of digits	9
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	13 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	6
translate	N/A
Base Number Matches	1

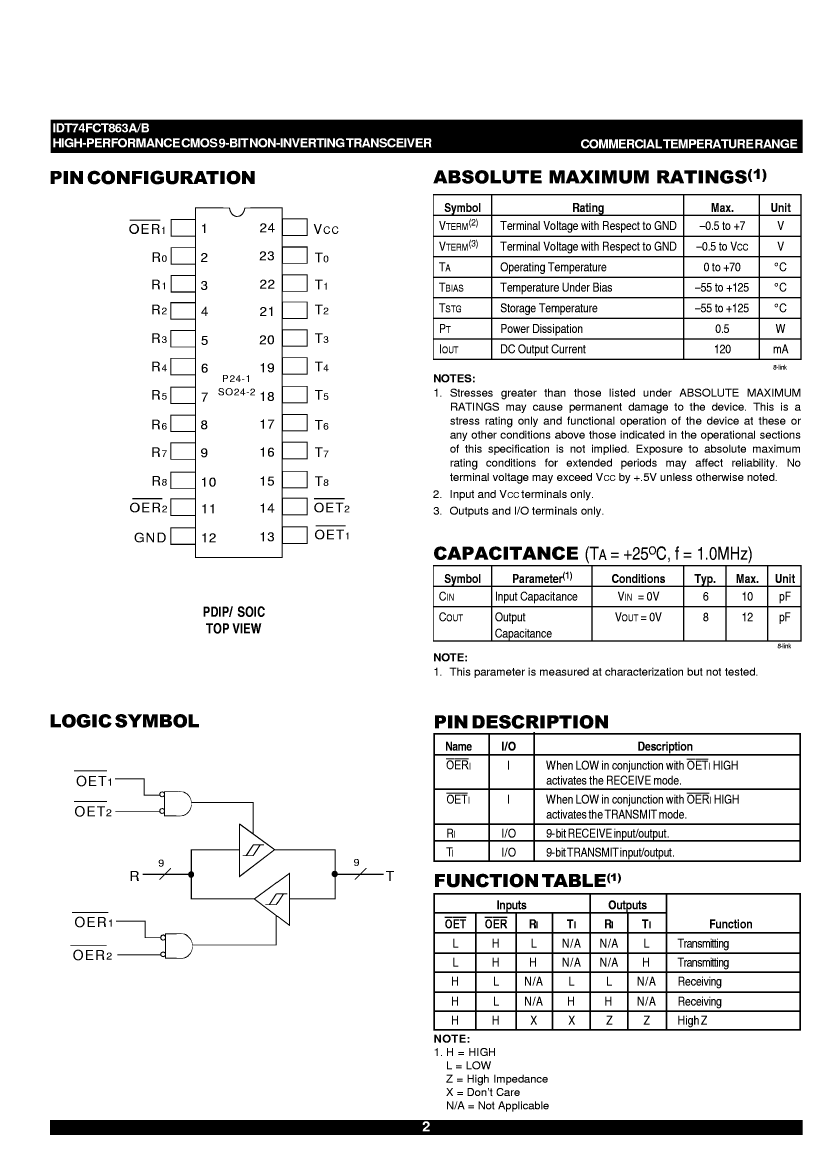

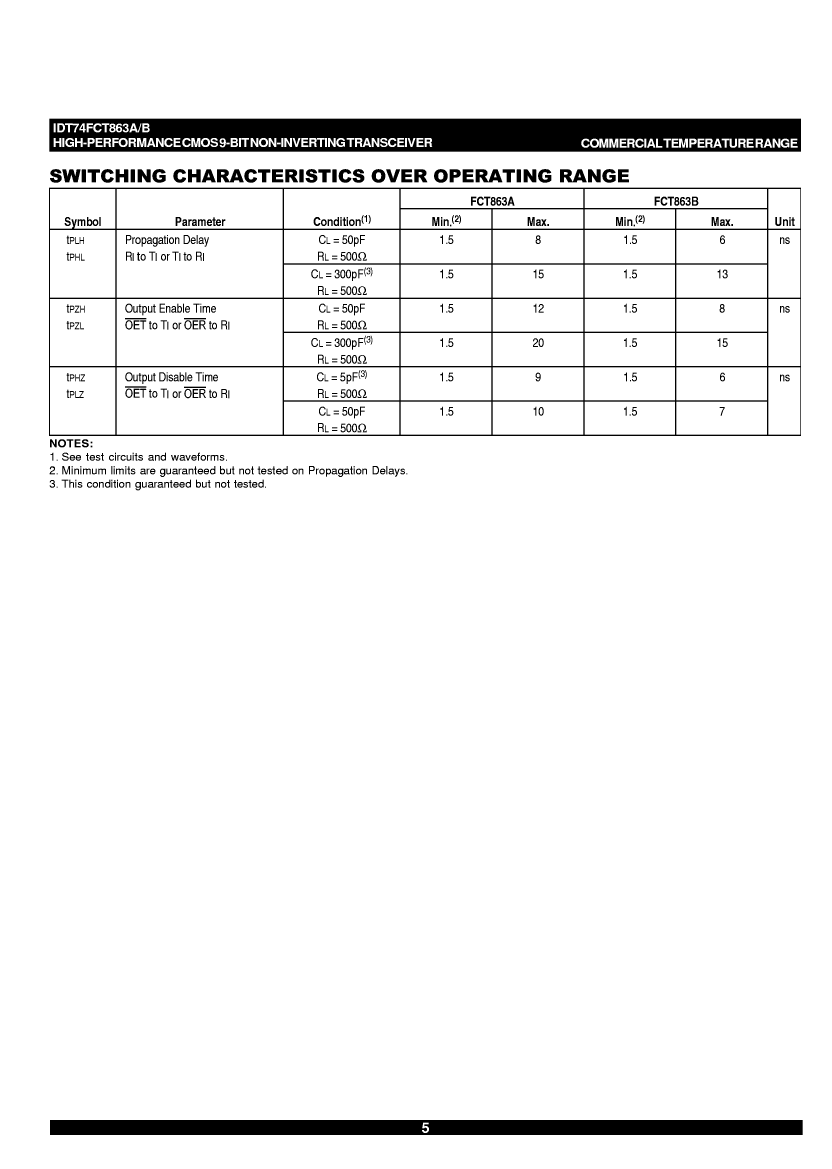

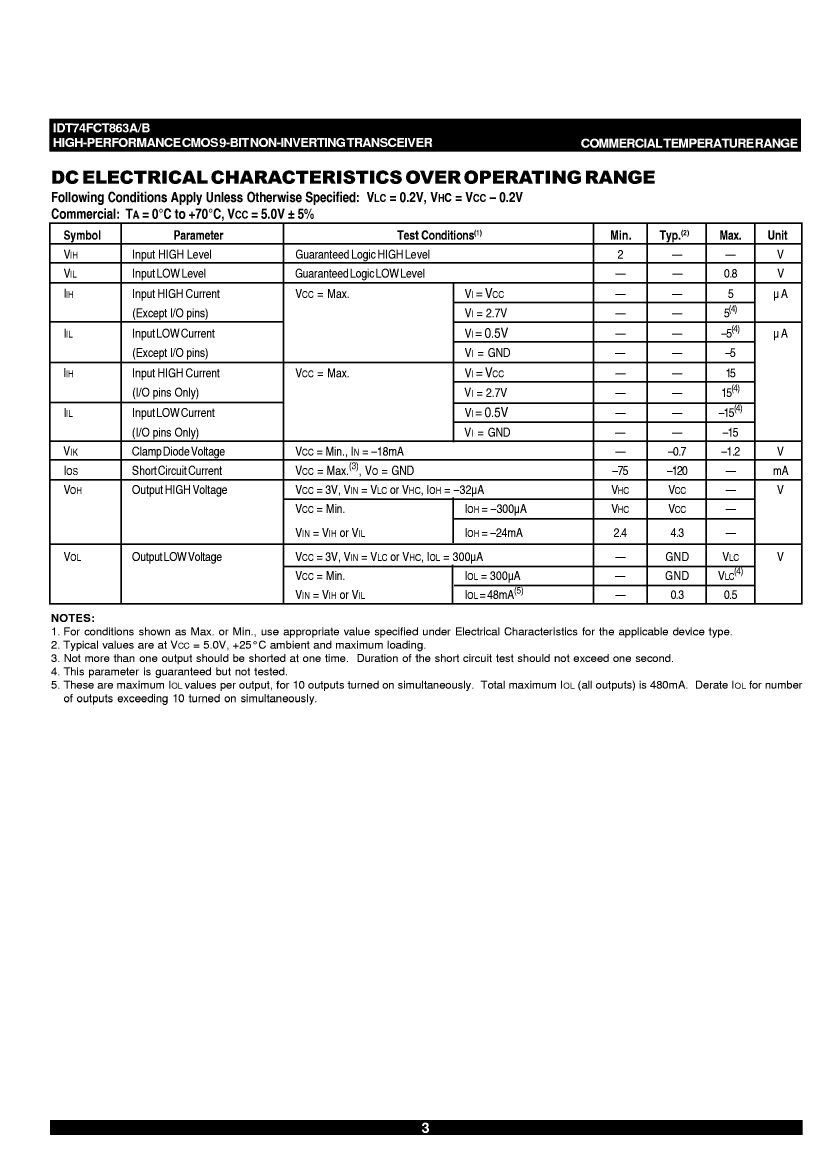

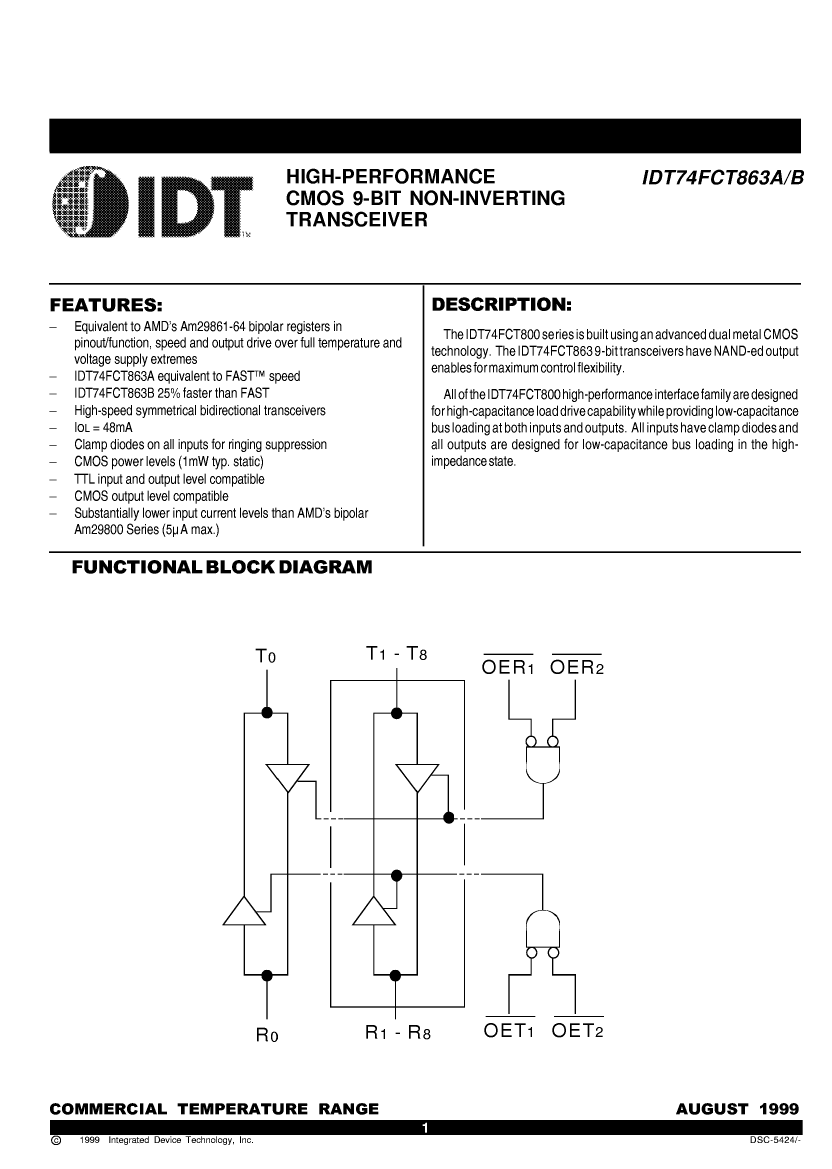

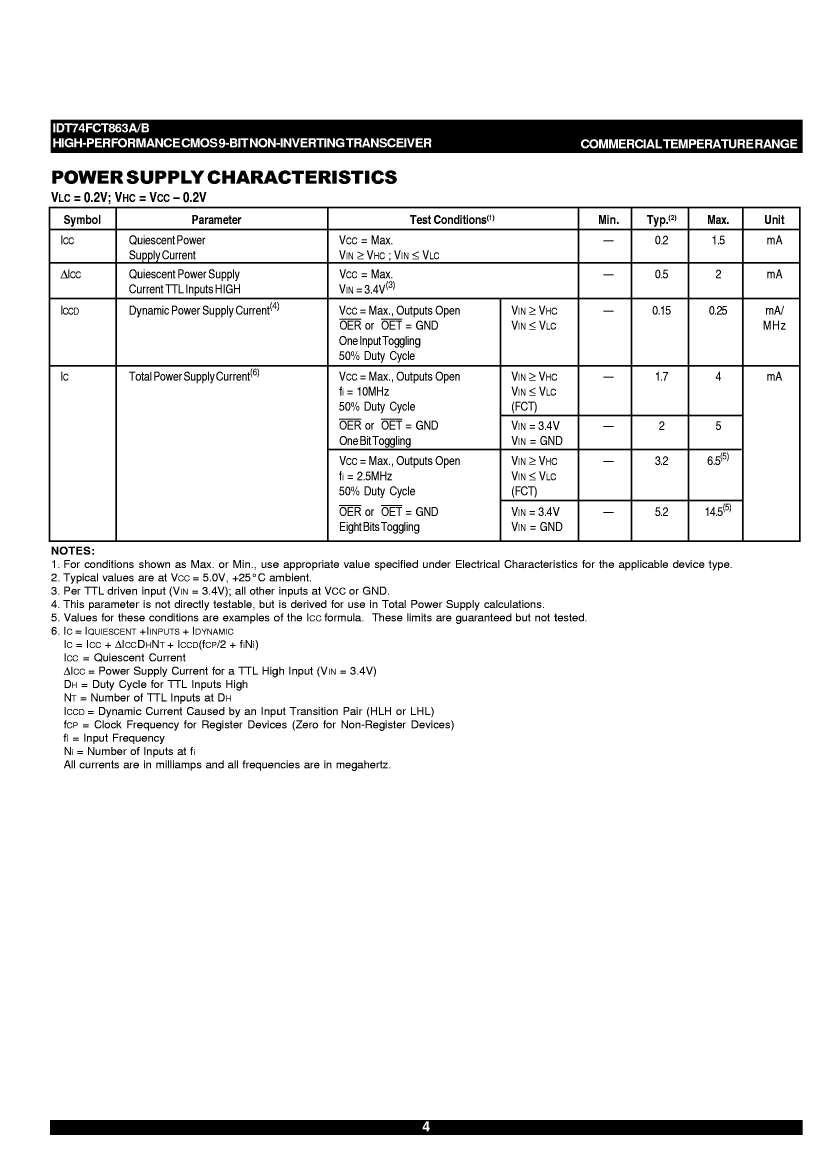

Preview

Download Datasheet

View All

IDT54FCT863AL Related Products

	IDT54FCT863AL	IDT54FCT863AD	IDT54FCT863AE	IDT54FCT863BD	IDT54FCT863BE	IDT54FCT863BL	IDT74FCT863BPQ	IDT74FCT863APQ	54FCT863AE
Description	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CQCC28	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CDIP24	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CDFP24	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CDIP24	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CDFP24	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CQCC28	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, PDIP24	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, PDIP24	Bus Driver/Transceiver, 1-Func, 9-Bit, True Output, CMOS, CDFP24
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	S-XQCC-N28	R-XDIP-T24	R-XDFP-F24	R-XDIP-T24	R-XDFP-F24	S-XQCC-N28	R-PDIP-T24	R-PDIP-T24	R-XDFP-F24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
MaximumI(ol)	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A	0.048 A	0.048 A	0.032 A
Number of digits	9	9	9	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	28	24	24	24	24	28	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	QCCN	DIP	DFP	DIP	DFP	QCCN	DIP	DIP	DFP
Encapsulate equivalent code	LCC28,.45SQ	DIP24,.3	FL24,.4	DIP24,.3	FL24,.4	LCC28,.45SQ	DIP24,.3	DIP24,.3	FL24,.4
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	225	225	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	13 ns	13 ns	13 ns	9 ns	9 ns	9 ns	8 ns	12 ns	13 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	6	6	6	6	6	6	30	30	6
translate	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Base Number Matches	1	1	1	1	1	1	-	-	-
