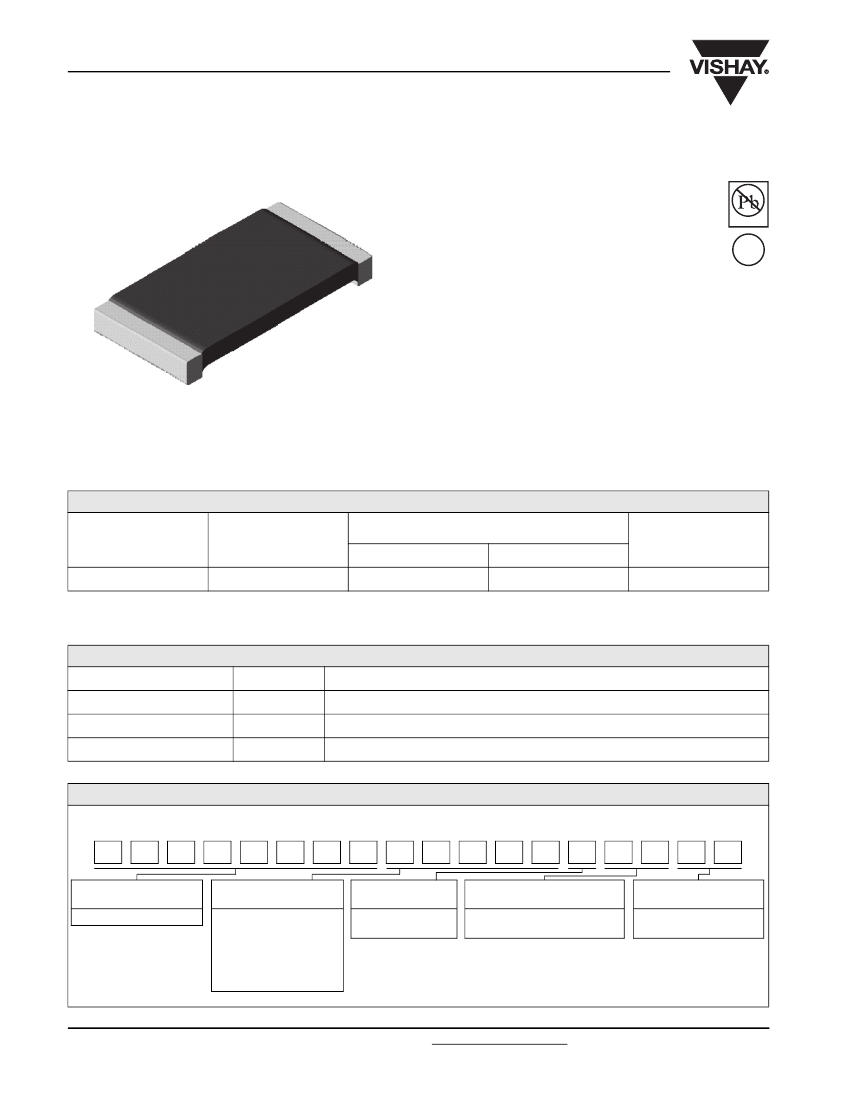

WSLP1206
Vishay Dale
Power Metal Strip
®
Resistors, Very High Power (1 W)
Low Value (down to 0.001
Ω),
Surface Mount
FEATURES
•
Very high power to foot print size ratio
(1 W in 1206 package)
•
Ideal for all types of current sensing and pulse
applications including switching and linear power
supplies, instruments, power amplifiers and
shunts
Pb-free
e3
RoHS
COMPLIANT
•
Proprietary processing technique produces extremely low
resistance values (down to 0.001
Ω)
•
All welded construction
•
Solid metal Nickel-Chrome or Manganese-Copper alloy
resistive element with low TCR (< 20 ppm/°C)
•
Very low inductance 0.5 nH to 5 nH
•
Excellent frequency response to 50 MHz
•
Low thermal EMF (< 3 µV/°C)
`
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
POWER RATING
P
70 °C
W
1.0
RESISTANCE RANGE
Ω
± 0.5 %
0.01 - 0.05
± 1.0 %
0.001 - 0.05
WEIGHT
(typical)
g/1000 pieces
16.2
WSLP1206
Note
• Part Marking: Value
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Operating Temperature Range
Maximum Working Voltage
UNIT
ppm/°C
°C
V
WSLP1206
± 75
- 65 to + 170
(P ×
R)
1/2
GLOBAL PART NUMBER INFORMATION
NEW GLOBAL PART NUMBERING: WSLP1206R0100FEA
W
S
L
P
1
2
0
6
R
0
1
0
0
F
E
A
GLOBAL MODEL
WSLP1206
RESISTANCE VALUE
L
= mΩ*
R
= Decimal
4L000
= 0.004
Ω
R0100
= 0.01
Ω
* use “L” for resistance
values < 0.01
Ω
TOLERANCE CODE
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING CODE
EA
= Lead (Pb)-free, tape/reel
EK
= Lead (Pb)-free, bulk
SPECIAL
Reserved for
future specials
www.vishay.com
10
For technical questions, contact: ww2bresistors@vishay.com
Document Number: 30122
Revision: 21-Jan-08
WSLP1206
Power Metal Strip
®
Resistors, Very High Power (1 W)
Low Value (down to 0.001
Ω),
Surface Mount
DIMENSIONS
H
W
T
L
Vishay Dale
MODEL
DIMENSIONS
in inches [millimeters]
L
W
H
T
WSLP1206
0126 ± 0.010 0.063 ± 0.010 0.025 ± 0.010 0.020 ± 0.010
[3.20 ± 0.254] [1.60 ± 0.254] [0.635 ± 0.254] [0.508 ± 0.254]
l
MODEL
b
SOLDER PAD DIMENSIONS
in inches [millimeters]
a
0.062
[1.57]
b
0.070
[1.78]
l
0.030
[0.76]
a
WSLP1206
Rated Power in
%
120
100
80
60
40
20
0
- 65 - 50
- 25
0
25
50
75
100
125
150
170
Derating
70 Ambient Temperature in °C
PERFORMANCE
TEST
Thermal Shock
Low Temperature Operation
High Temperature Exposure
Bias Humidity
Mechanical Shock
Vibration
Load Life
Resistance to Solder Heat
Moisture Resistance
- 65 °C for 45 min
1000 h at + 170 °C
+ 85 °C, 85 % RH, 10 % Bias, 1000 h
100 g’s for 6 ms, 5 pulses
Frequency varied 10 to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at 70 °C, 1.5 h “ON”, 0.5 h “OFF”
+ 260 °C Solder, 10 - 12 s dwell, 25 mm/s emergence
MIL-STD-202, Method 106, 0 % power, 7b not required
CONDITIONS OF TEST
- 55 °C to + 150 °C, 1000 cycles, 15 min at each extreme
TEST LIMITS
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (1.0 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (1.0 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
PACKAGING
MODEL
WSLP1206
Note
• Embossed Carrier Tape per EIA-481-2
TAPE WIDTH
8 mm/Embossed Plastic
DIAMETER
178 mm/7"
REEL
PIECES/REEL
4000
CODE
EA
Document Number: 30122
Revision: 21-Jan-08
For technical questions, contact: ww2bresistors@vishay.com
www.vishay.com
11
