BL-R1134 datasheet, PDF - EEWORLD Datasheet

BL-R1134: DescriptionSingle Color LED, Red, Diffused, 3.5mm, L-088, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size251KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-R1134 Overview

Single Color LED, Red, Diffused, 3.5mm, L-088, 2 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-088, 2 PIN
Reach Compliance Code	unknown
color	RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	DIFFUSED
Nominal luminous intensity	0.4 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.6 mm
method of packing	BULK
peak wavelength	655 nm
shape	RECTANGULAR
size	3.5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	120 deg
Base Number Matches	1

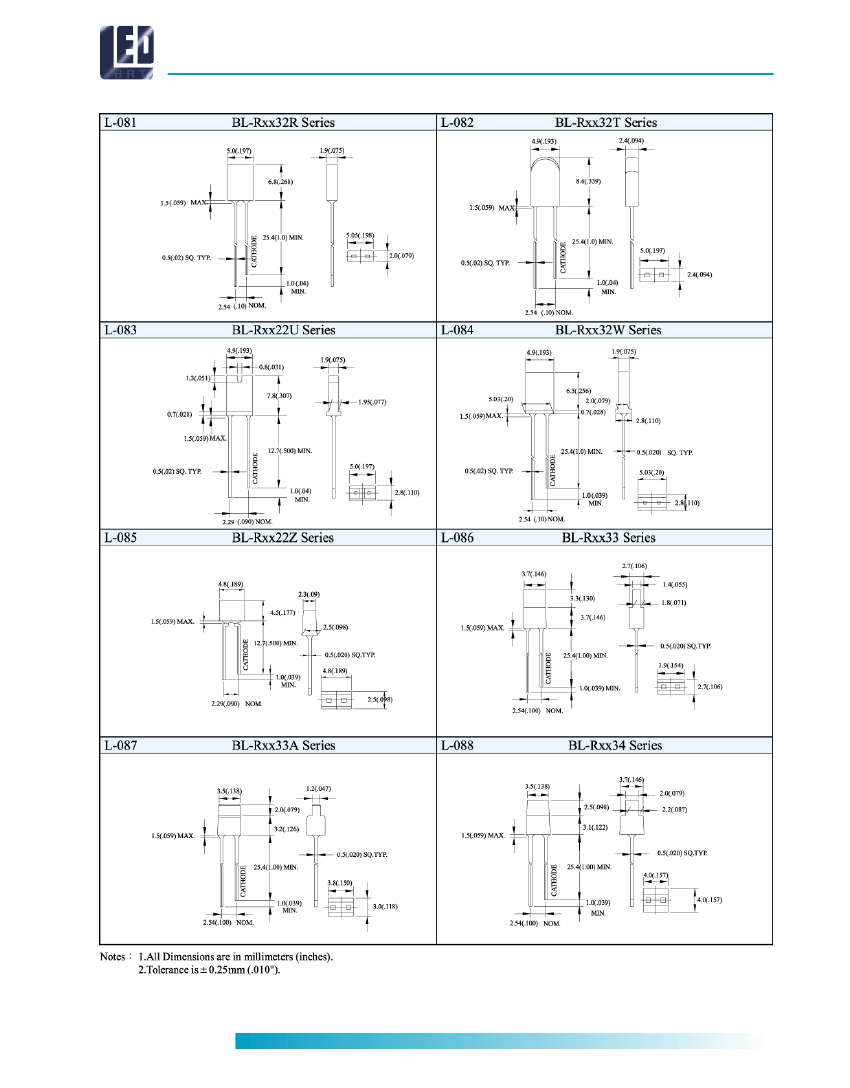

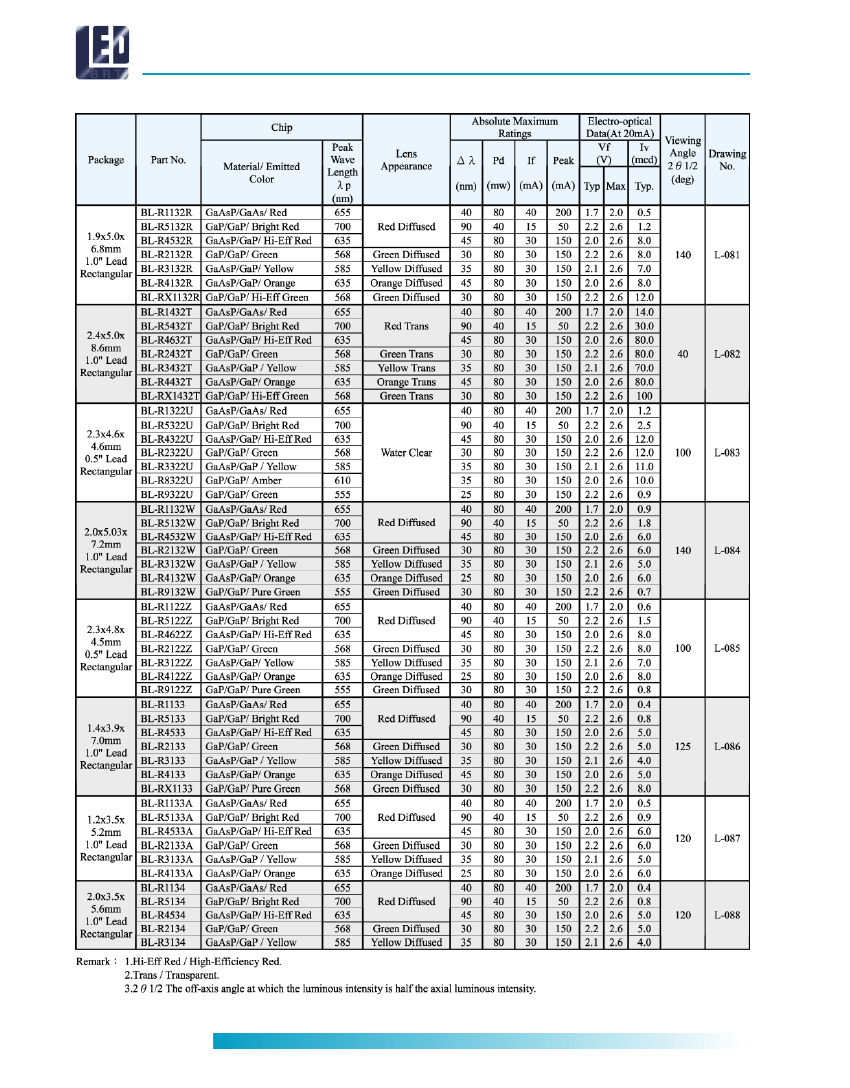

Standard LED Lamps

BL-R Series

Rectangular Types

AMERICAN BRIGHT

62

w w w. a m e r i c a n b r i g h t l e d . c o m

.

	BL-R1134	BL-R1133	BL-R1133A	BL-R1122Z	BL-R1322U
Description	Single Color LED, Red, Diffused, 3.5mm, L-088, 2 PIN	Single Color LED, Red, Diffused, 3.7mm, L-086, 2 PIN	Single Color LED, Red, Diffused, 3.5mm, L-087, 2 PIN	Single Color LED, Red, Diffused, 4.8mm, L-085, 2 PIN	Single Color LED, Red, Water Clear, 4.9mm, L-083, 2 PIN
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	L-088, 2 PIN	L-086, 2 PIN	L-087, 2 PIN	L-085, 2 PIN	L-083, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color	RED	RED	RED	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	WATER CLEAR
Nominal luminous intensity	0.4 mcd	0.4 mcd	0.5 mcd	0.6 mcd	1.2 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.6 mm	7 mm	5.2 mm	4.5 mm	7.8 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	655 nm	655 nm	655 nm	655 nm	655 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	3.5 mm	3.7 mm	3.5 mm	4.8 mm	4.9 mm
surface mount	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.29 mm	2.29 mm
perspective	120 deg	125 deg	120 deg	100 deg	100 deg
Maximum operating temperature	85 °C	85 °C	85 °C	-	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-
Base Number Matches	1	1	1	-	-
