BR250-80A2-12V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> BR250-80A2-12V

BR250-80A2-12V: DescriptionPower/Signal Relay, 1 Form C, SPDT, Momentary, 0.15A (Coil), 12VDC (Coil), 1800mW (Coil), 25A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size148KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

BR250-80A2-12V Overview

Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.15A (Coil), 12VDC (Coil), 1800mW (Coil), 25A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount,

BR250-80A2-12V Parametric

Parameter Name	Attribute value
Maker	Microsemi
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	13.34 mm
body height	25.65 mm
Body length or diameter	26.04 mm
Maximum coil current (DC)	0.15 A
Coil operating voltage (DC)	9 V
Coil power	1800 mW
Coil release voltage (DC)	3.5 V
Coil resistance	80 Ω
Maximum coil voltage (DC)	12 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated load I	15A@115VAC
Contact (AC) maximum rated load M	10A@115VAC
Contact (AC) maximum rated R load	25A@208VAC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	25 A
Contact (DC) maximum rated R load	25A@28VDC
Maximum contact voltage (AC)	208 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1250 Vrms
Dielectric strength between breaking contacts	1250 Vrms
Electrical life	50000 Cycle(s)
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	5
operating hours	16 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	26.04mm x 13.34mm x 25.65mm
Guideline	MIL-PRF-6106
Relay action	MOMENTARY
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	16 ms
surface mount	NO
Terminal surface	GOLD
Termination type	SOLDER
weight	45.36 g
Base Number Matches	1

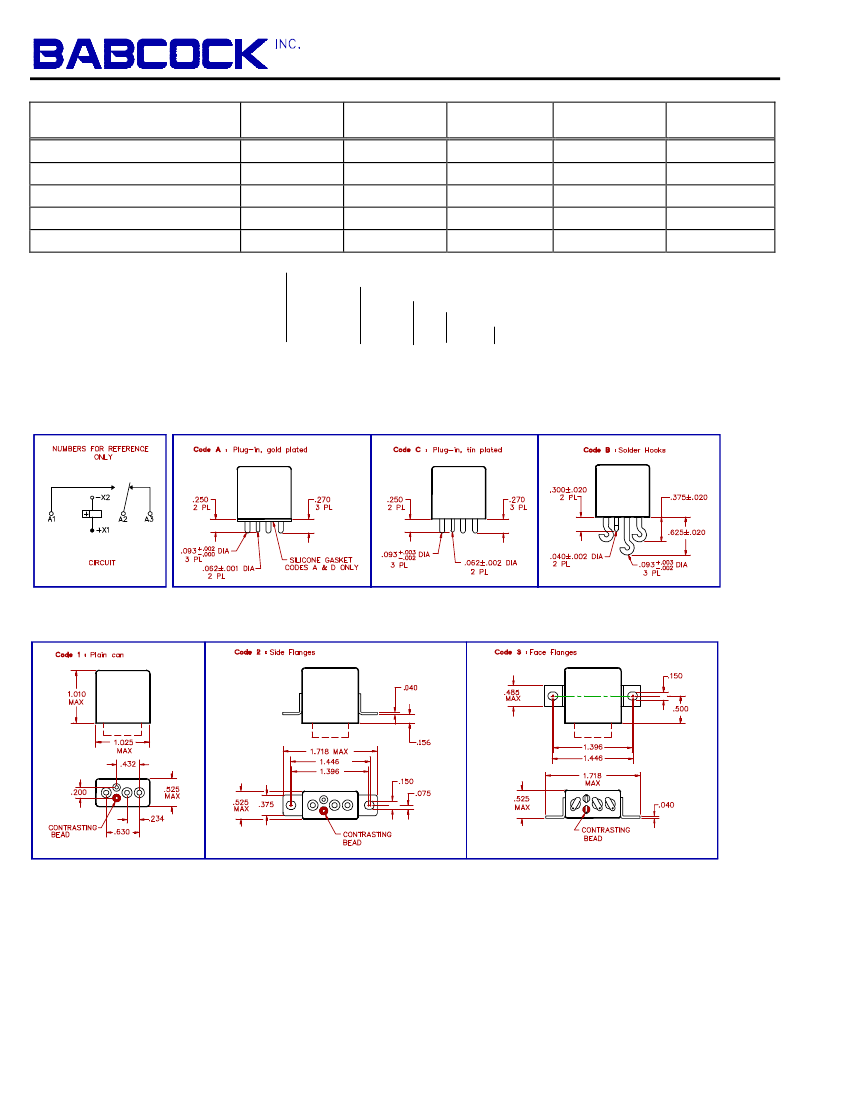

Preview

Download Datasheet

View All

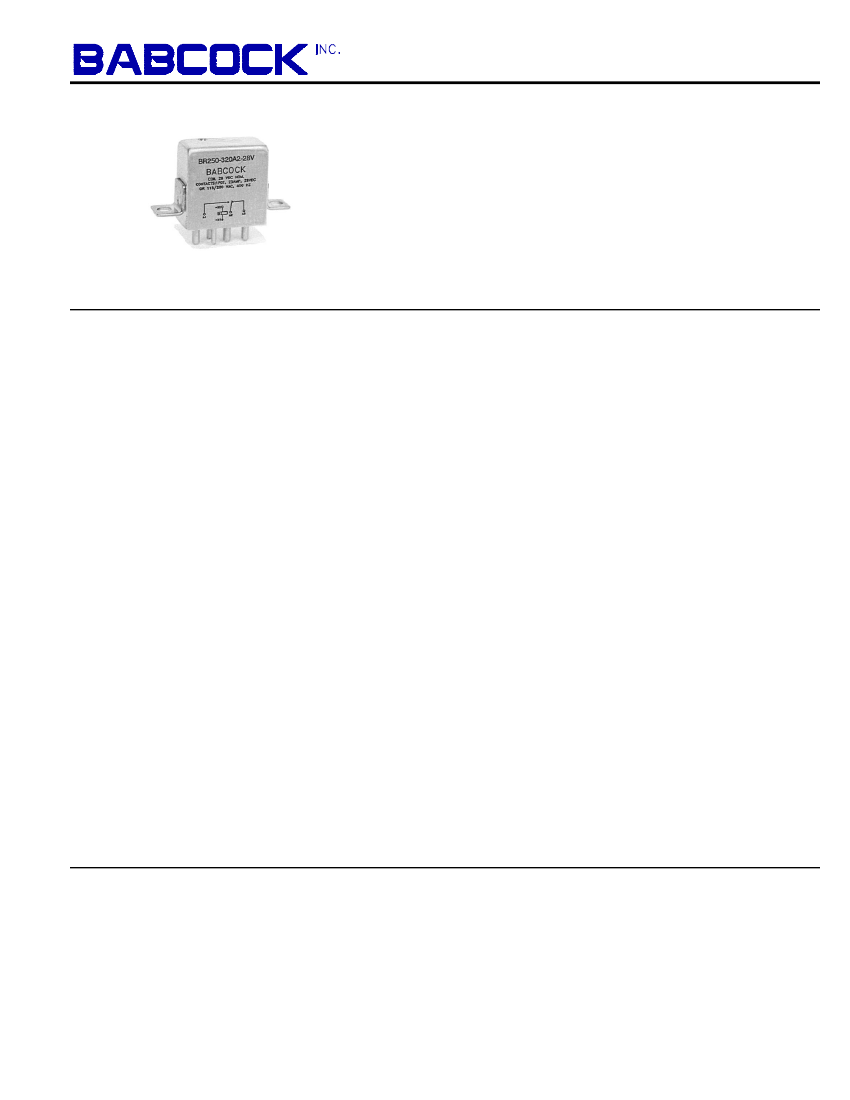

BR250

Miniature

25 Amps • 1PDT

To MIL-PRF-6106

SPECIFICATIONS

GENERAL

Contact Arrangement

.......................... 1PDT (1 Form C)

Weight..........................................................1.6

oz approx.

Designed to meet the requirements of MIL-PRF-6106

PERFORMANCE

Contact Rating

(Note 1):

Resistive ................................... 25 Amps @ 28 VDC or

115/208V 400 Hz

(Case Grounded)

Inductive ........................15 Amps @ 115/208V 400 Hz

(Case Grounded)

10 Amps @ 28 VDC

(Case Grounded)

Motor......................................... 10 Amps @ 28 VDC or

115/208V 400 Hz

(Case Grounded)

Lamp .......................................... 5 Amps @ 28 VDC or

115/208V 400 Hz

(Case Grounded)

.......................50,000 operations minimum @ rated

resistive load, 125 C

Pull In Power

............................................500 mw approx.

Life

Operate/Release Time:

DC Coil

AC Coil

15 ms max 50 ms max

Excluding bounce time at nominal coil voltage

Contact Bounce Time.......................................

1 ms max

@ rated contact load, 28 VDC

Contact Voltage Drop:

Before Life............................. 150 mv max @ 25 Amps

and 6 VDC

After Life ................................ 175 mv max @ 25 Amps

and 6 VDC

ENVIRONMENTAL

Temperature Range

............................... -70 C to +125 C

Vibration

(Note 2).............................. 0.12" DA 10 - 70 Hz

30 G's 70 - 3,000 Hz

Shock (Operating)(Note

2) ......................... 200 G's 6 ms

ELECTRICAL CHARACTERISTICS

Duty Cycle........................................................Continuous

Insulation Resistance...............................

100 megohms

@ 500V 25 C

Dielectric Strength:

Sea Level:

Contact to Case ................................... 1,250 VRMS

Contact to Coil ..................................... 1,250 VRMS

Coil to Case ......................................... 1,000 VRMS

Across Open Contacts ........................ 1,250 VRMS

80,000 Feet:

All Points ................................................. 350 VRMS

MIL-PRF-6106/19 QUALIFIED

Notes:

For other ratings consult the factory.

For applications requiring higher shock and

vibration, consult the factory.

AC coil line frequency 50 to 400 Hz.

14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013

W:2000, Rev. 4
