390AN056M22: DescriptionSubmersible EMI/RFI Cable Sealing Backshell with Strain Relief; File Size77KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

390AN056M22 Overview

Submersible EMI/RFI Cable Sealing Backshell with Strain Relief

Preview

Download Datasheet

View All

390-056

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

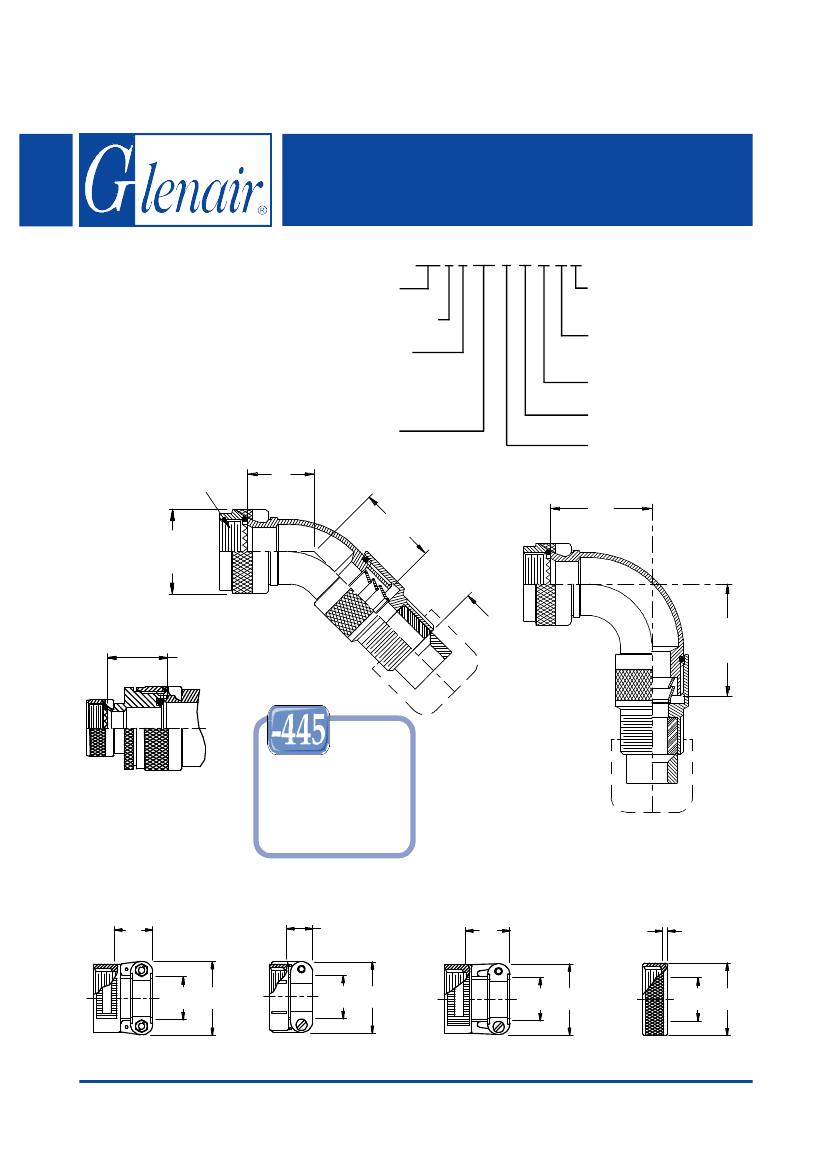

Type E - Rotatable Coupling - Full Radius Profile

CONNECTOR

DESIGNATORS

390 F N 056 M 16 10 D M

Product Series

Connector Designator

Angle and Profile

M = 90

N = 45

See page 39-46 for straight

Basic Part No.

Finish (Table II)

Termination (Note 5)

D = 2 Rings, T = 3 Rings

Cable Entry (Tables X, XI)

Shell Size (Table I)

Strain Relief Style

(H, A, M, D)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE E INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

A Thread

(Table I)

(Table III)

F (Table III)

C Typ.

(Table I)

1.281

(32.5)

Ref. Typ.

(Table III)

.88 (22.4)

Max

(Table III)

Now Available

with the NESTOR

STYLE 2

(See Note 1)

Glenair’s Non-Detent,

Spring-Loaded, Self-

Locking Coupling.

Add “-445” to Specify

This AS85049 Style “N”

Coupling Interface.

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 48
