BOY-3D-110/120VDC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> BOY-3D-110/120VDC

Preview

BOY-3D-110/120VDC: DescriptionPower/Signal Relay, SPDT, Momentary, 0.008A (Coil), 120VDC (Coil), 960mW (Coil), 10A (Contact), 26.5VDC (Contact), DC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size402KB，1 Pages; ManufacturerAllied Controls Incorporated

Download Datasheet Parametric View All

BOY-3D-110/120VDC Overview

Power/Signal Relay, SPDT, Momentary, 0.008A (Coil), 120VDC (Coil), 960mW (Coil), 10A (Contact), 26.5VDC (Contact), DC Input, AC/DC Output, Panel Mount

BOY-3D-110/120VDC Parametric

Parameter Name	Attribute value
Maker	Allied Controls Incorporated
Reach Compliance Code	unknown
ECCN code	EAR99
body width	38.1 mm
body height	49.2 mm
Body length or diameter	46.81 mm
Maximum coil current (DC)	0.008 A
Coil operating voltage (DC)	88 V
Coil power	960 mW
Coil resistance	15000 Ω
Maximum coil voltage (DC)	120 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@110VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@26.5VDC
Maximum contact voltage (AC)	110 V
Maximum contact voltage (DC)	26.5 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	BOY
Installation features	PANEL MOUNT
operating hours	40 ms
Maximum operating temperature	71 °C
Minimum operating temperature
physical size	46.81mm x 38.1mm x 49.2mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	15 ms
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

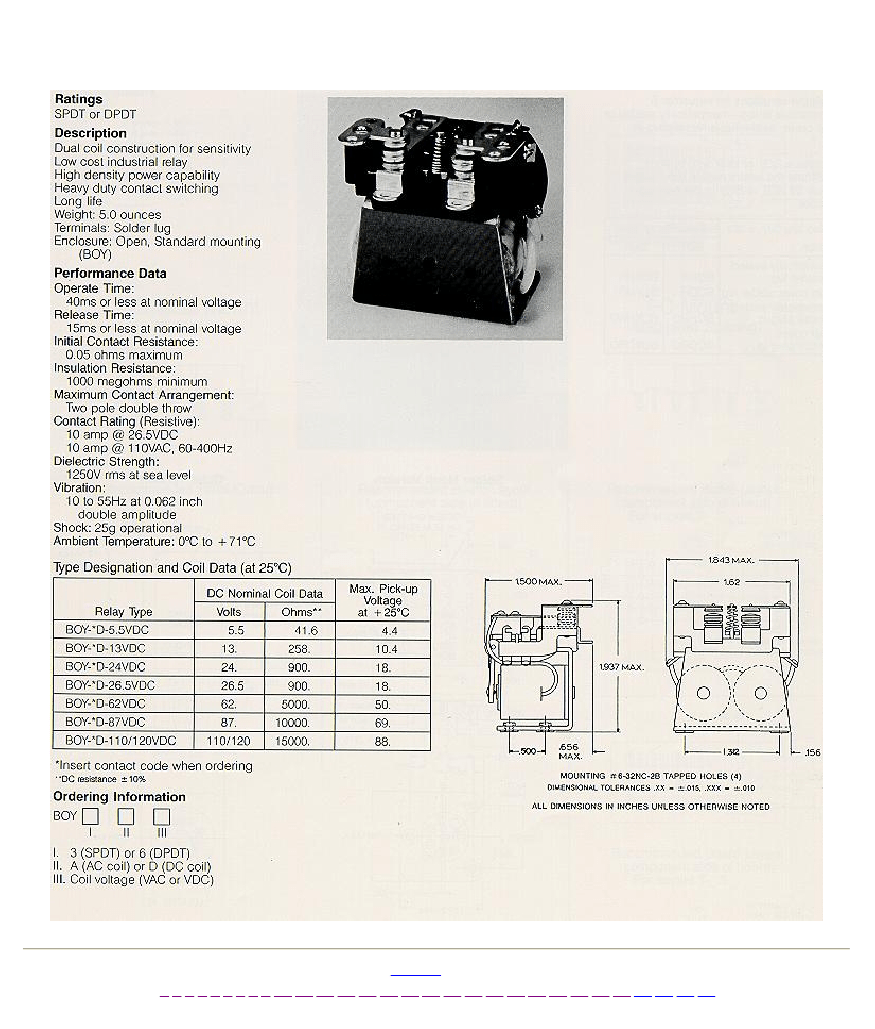

Allied Controls, Inc. Catalog, Page 26
