GA10-393KLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> GA10-393KLF

GA10-393KLF: DescriptionGeneral Purpose Inductor, 390uH, 10%, 1 Element, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

GA10-393KLF Overview

General Purpose Inductor, 390uH, 10%, 1 Element, ROHS COMPLIANT

GA10-393KLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Tubular
core material	FERRITE
DC Resistance	0.76 Ω
Nominal inductance(L)	390 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.813 mm
Lead length	31.75 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	6.604 mm
Package length	16 mm
Package form	Axial
method of packing	TR, 12 Inch
Maximum rated current	0.605 A
self resonant frequency	1.3 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

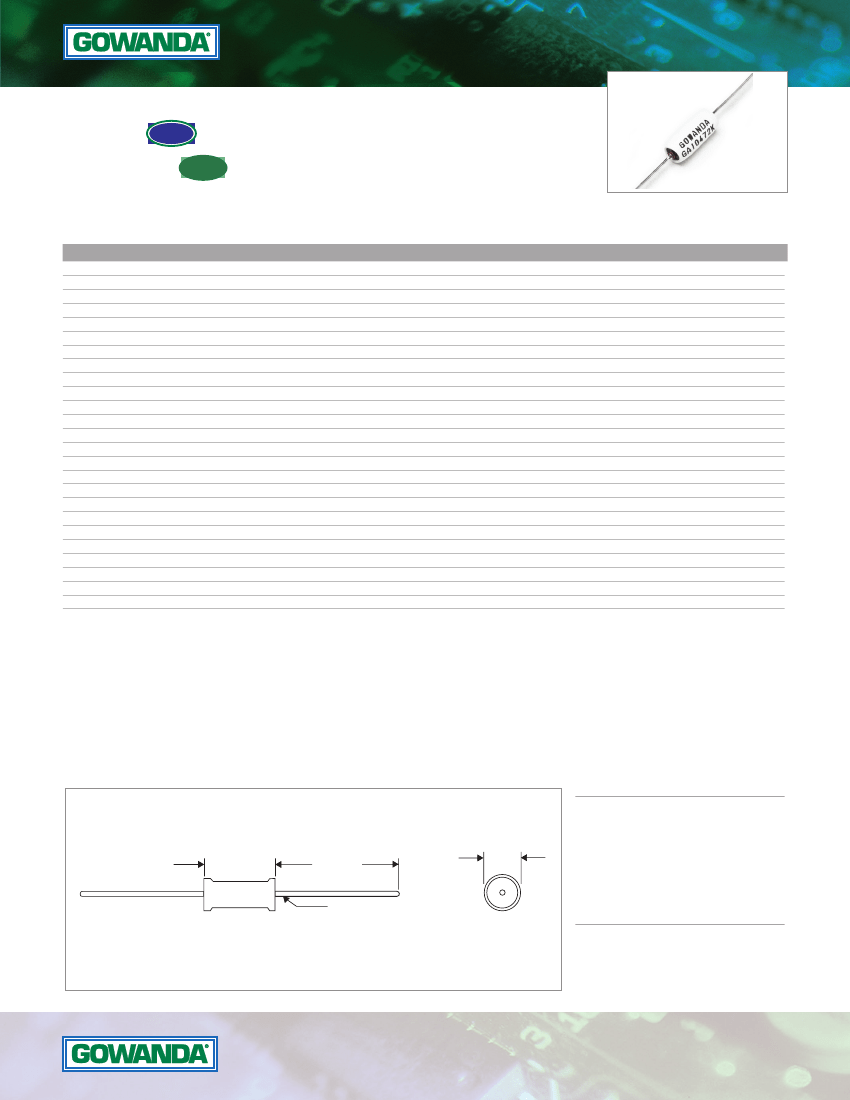

STANDARD POWER INDUCTORS - THRU HOLE

GA10

TRADITIONAL

GA10LF

PART

NUMBER

GA10-101K

GA10-121K

GA10-151K

GA10-181K

GA10-221K

GA10-271K

GA10-331K

GA10-391K

GA10-471K

GA10-561K

GA10-681K

GA10-821K

GA10-102K

GA10-122K

GA10-152K

GA10-182K

GA10-222K

GA10-272K

GA10-332K

GA10-392K

GA10-472K

GA10-562K

GA10-682K

GA10-822K

GA10-103K

COMPLIANT

RoHS

Wirewound, High Current

L µH

@ 1kHz

NOM

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

SRF

MHz

MIN

155

148

128

120

108

100

8.0

6.5

6.1

5.7

5.1

4.3

3.6

3.2

3.0

FERRITE CORE

DCR

OHMS

MAX

0.009

0.010

0.011

0.012

0.013

0.014

0.016

0.017

0.022

0.024

0.026

0.028

0.035

0.038

0.043

0.047

0.052

0.058

0.066

0.070

0.085

0.110

0.123

0.167

0.223

SATURATION

CURRENT

A DC

7.3

6.3

5.6

5.3

4.8

4.2

4.1

3.6

3.4

3.2

2.7

2.5

2.4

2.0

1.9

1.6

1.5

1.4

1.2

1.1

1.0

0.90

0.76

0.70

CURRENT

RATING

A DC

5.558

5.272

5.027

4.813

4.624

4.456

4.168

4.044

3.555

3.403

3.270

3.151

2.818

2.705

2.543

2.432

2.312

2.189

2.052

1.993

1.808

1.590

1.503

1.290

1.116

continued next page

Suffix “K” for 10% tolerance

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: GA

KLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.

These LF components meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

0.630

(16.002)

MAX

GOWANDA

GA10-101K

1.250

(31.75)

MIN TYP

#20 AWG

(0.032

0.002)

(0.813

0.051)

0.260

(6.604)

MAX

NOTES:

• Operating Temperature Range:

-55°C to +125°C

• Current Rating is based on a 35°C temperature

rise at an ambient temperature of 90°C

• Saturation current is the approximate value

that will reduce the initial inductance by 5%

• Parts are printed

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Inside tape spacing:

Reel diameter

Class:

1000

0.400 in.

2.062 in.

12 in.

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

010814
