440-070

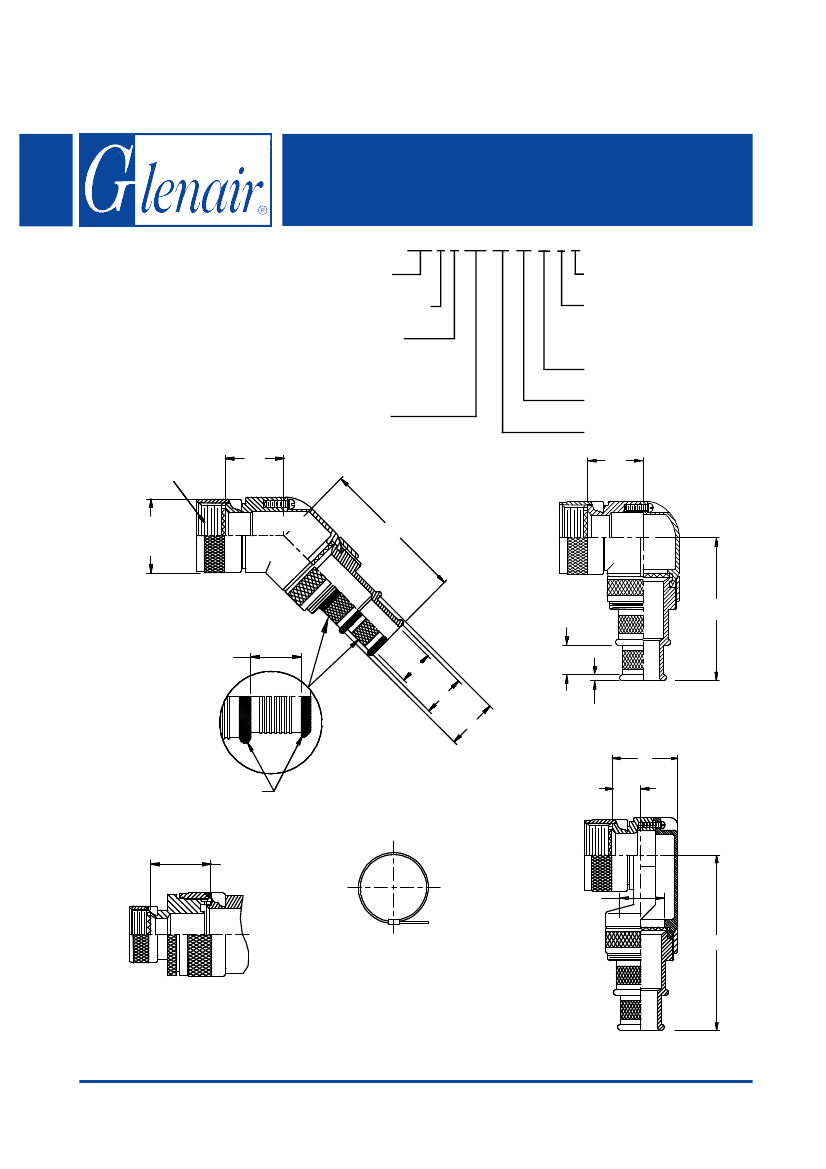

EMI/RFI Dual Banding Adapter
Rotatable Coupling - Split Shell
440 A D 070 NF 16 12 K P
440
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Angle and Profile
C = Ultra-Low Split 90
D = Split 90
F = Split 45
Basic Part No.
Polysulfide (Omit for none)
B = 2 Bands
K = 2 Precoiled Bands
(Omit for none)
Dash No. (Table IV)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
ROTATABLE
COUPLING
A Thread
(Table I)
D
(Table III)
F
(Table III)
C Typ.
(Table I)
E (Table III)
Split 45°
Termination Areas
Free of Cadmium.
Knurl or Ridges
Mfr's Option
Split 90°
.380 (9.7)
Typ.
G (Table III)
L*
M*
.060 (1.5) Typ.
N*
* (Table IV)
K
(Table III)
H (Table III)
Polysulfide Stripes
P Option
.88 (22.4)
Max
Max Wire
Bundle
(Table III,
Note 1)
Band Option
(K Option Shown -
See Note 3)
STYLE 2
(See Note 1)
J (Table III)
Ultra Low-
Profile Split
90°
Printed in U.S.A.
© 2005 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 32
440-070
EMI/RFI Dual Banding Adapter
Rotatable Coupling - Split Shell
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
D
Max
.440 (11.2)
.500 (12.7)
.560 (14.2)
.620 (15.7)
.680 (17.3)
.750 (19.1)
.820 (20.8)
.880 (22.4)
.940 (23.9)
E
Max
1.940 (49.3)
2.000 (50.8)
2.070 (52.6)
2.100 (53.3)
2.200 (55.9)
2.260 (57.4)
2.320 (58.9)
2.380 (60.5)
2.440 (62.0)
F
Max
.680 (17.3)
.750 (19.1)
.810 (20.6)
.870 (22.1)
.930 (23.6)
1.000 (25.4)
1.060 (26.9)
1.120 (28.4)
1.180 (30.0)
G
Max
1.880 (47.8)
1.940 (49.3)
2.010 (51.1)
2.040 (51.8)
2.140 (54.4)
2.200 (55.9)
2.260 (57.4)
2.320 (58.9)
2.380 (60.5)
H
Ref
.340 (8.6)
.270 (6.9)
.270 (6.9)
.280 (7.1)
.420 (10.7)
.640 (16.3)
.640 (16.3)
.540 (13.7)
.540 (13.7)
J
Max
2.220 (56.4)
2.380 (60.5)
2.380 (60.5)
2.450 (62.2)
2.500 (63.5)
2.530 (64.3)
2.530 (64.3)
2.680 (68.1)
2.680 (68.1)
K
Function C Max
Max
Wire Bundle
.681 (17.3)
.250 (6.4)
.731 (18.6)
.375 (9.5)
.731 (18.6)
.375 (9.5)
.831 (21.1)
.500 (12.7)
.981 (24.9)
.625 (15.9)
1.181 (30.0)
.625 (15.9)
1.181 (30.0)
.625 (15.9)
1.181 (30.0)
.750 (19.1)
1.181 (30.0)
.750 (19.1)
TABLE IV: CABLE ENTRY
N
L
M
Dash
Dia
Dia
Dia
No.
.312 (7.9)
.125 (3.2)
.250 (6.4)
02
.375 (9.5)
.188 (4.8)
.312 (7.9)
03
.438 (11.1)
.250 (6.4)
.375 (9.5)
04
.500 (12.7)
.312 (7.9)
.438 (11.1)
05
.562 (14.3)
.375 (9.5)
.500 (12.7)
06
.625 (15.9)
.438 (11.1)
.562 (14.3)
07
.688 (17.5)
.500 (12.7)
.625 (15.9)
08
.750 (19.1)
.562 (14.3)
.688 (17.5)
09
.812 (20.6)
.625 (15.9)
.750 (19.1)
10
.875 (22.2)
.688 (17.5)
.812 (20.6)
11
.938 (23.8)
.750 (19.1)
.875 (22.2)
12
.812 (20.6)
.938 (23.8) 1.000 (25.4)
13
.875 (22.2) 1.000 (25.4) 1.062 (27.0)
14
.938 (23.8) 1.062 (27.0) 1.125 (28.6)
15
16 1.000 (25.4) 1.125 (28.6) 1.188 (30.2)
17 1.062 (27.0) 1.188 (30.2) 1.250 (31.8)
18 1.125 (28.6) 1.250 (31.8) 1.312 (33.3)
20 1.250 (31.8) 1.375 (34.9) 1.438 (36.5)
22 1.375 (34.9) 1.500 (38.1) 1.562 (39.7)
24 1.500 (38.1) 1.625 (41.3) 1.688 (42.9)
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied (not
available on Function C). Dimensions D,
E, F and G will not apply. Please consult
factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Backshells supplied with 600-052-*
band, see Glenair Series 600 Tool Cata-
log for installation.
4. Angular function "C", low-profile split
elbow, not available with "S" connector
designator.
