443-011
EMI/RFI Cable Sealing Backshell
Band-in-a-Can with Strain-Relief
Self-Locking Rotatable Coupling - Full Radius Profile
443 F N 011 NF 16 12 H K P
443
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Angle and Profile
M = 45°
N = 90°
See page 443-10 for straight
Basic Part No.
Finish (Table II)
Polysulfide (Omit for none)
B = Band
K = Precoiled Band
(Omit for none)
Strain Relief Style
(H, A, M, D, Tables X & XI)
Dash No. (Table IV)
Shell Size (Table I)
O-Ring
H
(Table III)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
1.00
(25.4)
Max
A Thread
(Table I)
E Typ.
(Table I)
F
(Table III)
G (Table III)
1.25
(31.8)
Max
O-Ring
STYLE 2
(See Note 1)
Anti-Rotation
Device (Typ.)
Termination Area
Free of Cadmium
Knurl or Ridges
Mfr's Option
J
(Table
III)
K (Table IV)
Band Option
(K Option Shown -
See Note 4)
Polysulfide
Stripes
P Option

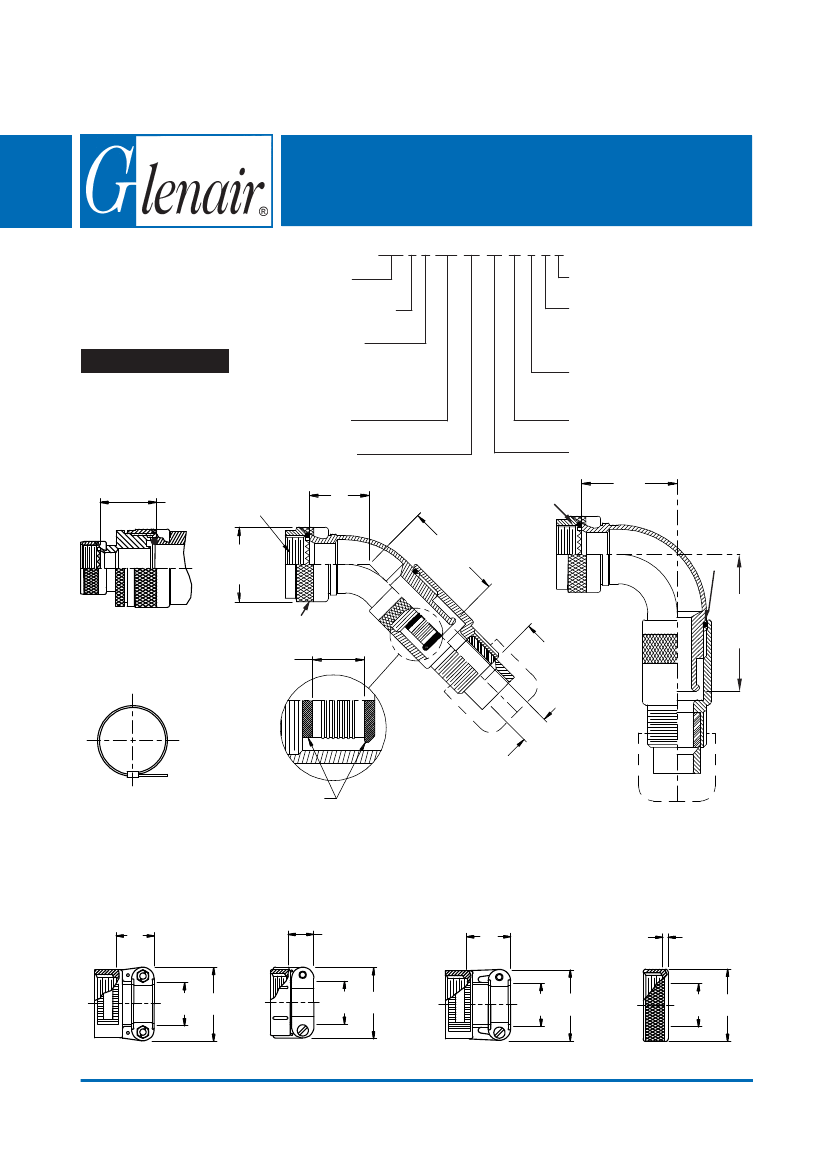

STYLE H
Heavy Duty (Table X)
T
STYLE A
Medium Duty (Table XI)
W
STYLE M
Medium Duty (Table XI)
X
STYLE D
Medium Duty (Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 443 - Page 12
Rev. 20-AUG-2008
Band-in-a-Can with Strain-Relief
Self-Locking Rotatable Coupling - Full Radius Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S H
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
F
Max
.968 (24.6)
1.031 (26.2)
1.094 (27.8)
1.156 (29.4)
1.219 (31.0)
1.250 (31.8)
1.312 (33.3)
1.344 (34.1)
1.406 (35.7)
G
Max
1.057 (26.8)
1.111 (28.2)
1.161 (29.5)
1.215 (30.9)
1.264 (32.1)
1.314 (33.4)
1.368 (34.7)
1.422 (36.1)
1.471 (37.4)
H
Max
1.281 (32.5)
1.406 (35.7)
1.531 (38.9)
1.656 (42.1)
1.781 (45.2)
1.906 (48.4)
2.031 (51.6)
2.156 (54.8)
2.281 (57.9)
J
Max
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1.875 (47.6)
2.000 (50.8)
2.125 (54.0)
2.250 (57.2)
2.375 (60.3)
TABLE IV: CABLE ENTRY
K
Dash Clamp
Dia
No.
Size
.125 (3.2)
02
03
.188 (4.8)
03
03
.250 (6.4)
04
03
.312 (7.9)
05
04
.375 (9.5)
06
06
.438 (11.1)
07
06
.500 (12.7)
08
08
.562 (14.3)
09
10
.625 (15.9)
10
10
.688 (17.5)
11
12
.750 (19.1)
12
12
.812 (20.6)
13
16
.875 (22.2)
14
16
.938 (23.8)
15
16
1.000 (25.4)
16
20
1.062 (27.0)
17
20
1.125 (28.6)
18
20
1.250 (31.8)
20
20
1.375 (34.9)
22
24
1.500 (38.1)
24
28
TABLE X: CABLE ENTRY
T
V
Cable
Clamp
Max
Max
Size
Min
.780 (19.8)
.957 (24.3)
.125 (3.2)
04
.780 (19.8) 1.145 (29.1)
06
.250 (6.4)
.780 (19.8) 1.332 (33.8)
08
.387 (9.8)
.780 (19.8) 1.332 (33.8)
10
.350 (8.9)
.811 (20.6) 1.551 (39.4)
12
.500 (12.7)
.905 (23.0) 1.770 (45.0)
16
.625 (15.9)
1.092 (27.7) 2.113 (53.7)
20
.875 (22.2)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4)
24
1.399 (35.5) 2.770 (70.4) 1.250 (31.8)
28
Range
Max
.312 (7.9)
.437 (11.1)
.562 (14.3)
.625 (15.9)
.750 (19.1)
.937 (23.8)
1.250 (31.8)
1.375 (34.9)
1.625 (41.3)
TABLE XI: CABLE ENTRY
Clamp
Z
Y
X
W
Cable Range
Size
Max
Max
Max
Max
Min **
Max
03* .437 (11.1) .760 (19.3)
.630 (16.0) .156 (4.0) .250 (6.4)
.843 (21.4)
04* .437 (11.1) .760 (19.3)
.755 (19.2) .188 (4.8) .312 (7.9)
.906 (23.0)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.438 (11.1)
.942 (23.9) .281 (7.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8)
.562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5)
.625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
* Not available in Style M clamp.
** Not Applicable Style D
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. O-Ring not supplied with Connector Designator A.
4. Backshells supplied with 600-052-* band, see Glenair Series 600 Tool Catalog for
installation.
